L-BLOCK ASSEMBLY
This assembly is the junction between the Telescopic Column and the X-ray
T ube and Collimator Assembly. It contains electronic and the mechanical
components to allow the movement of the X-ray Tube in the Alpha Axis
(Angulation) and Beta Axis (Rotation).
X- RAY TUBE SUPPORT
It is designed to support the X-ray Tube, which can rotate around the vertical
axis of the Telescopic Column (Beta axis)
¦180
o
from the front position (0
o
), and
it can rotate around its transverse axis (Alpha axis)
¦135
o
from 0
o
position
(perpendicular to the floor).
COLLIMATOR
The Suspension can be associated with two Collimation options:
Ralco R225/R225 DHHS Manual Collimator.
Ralco R225ACS Automatic Collimator.

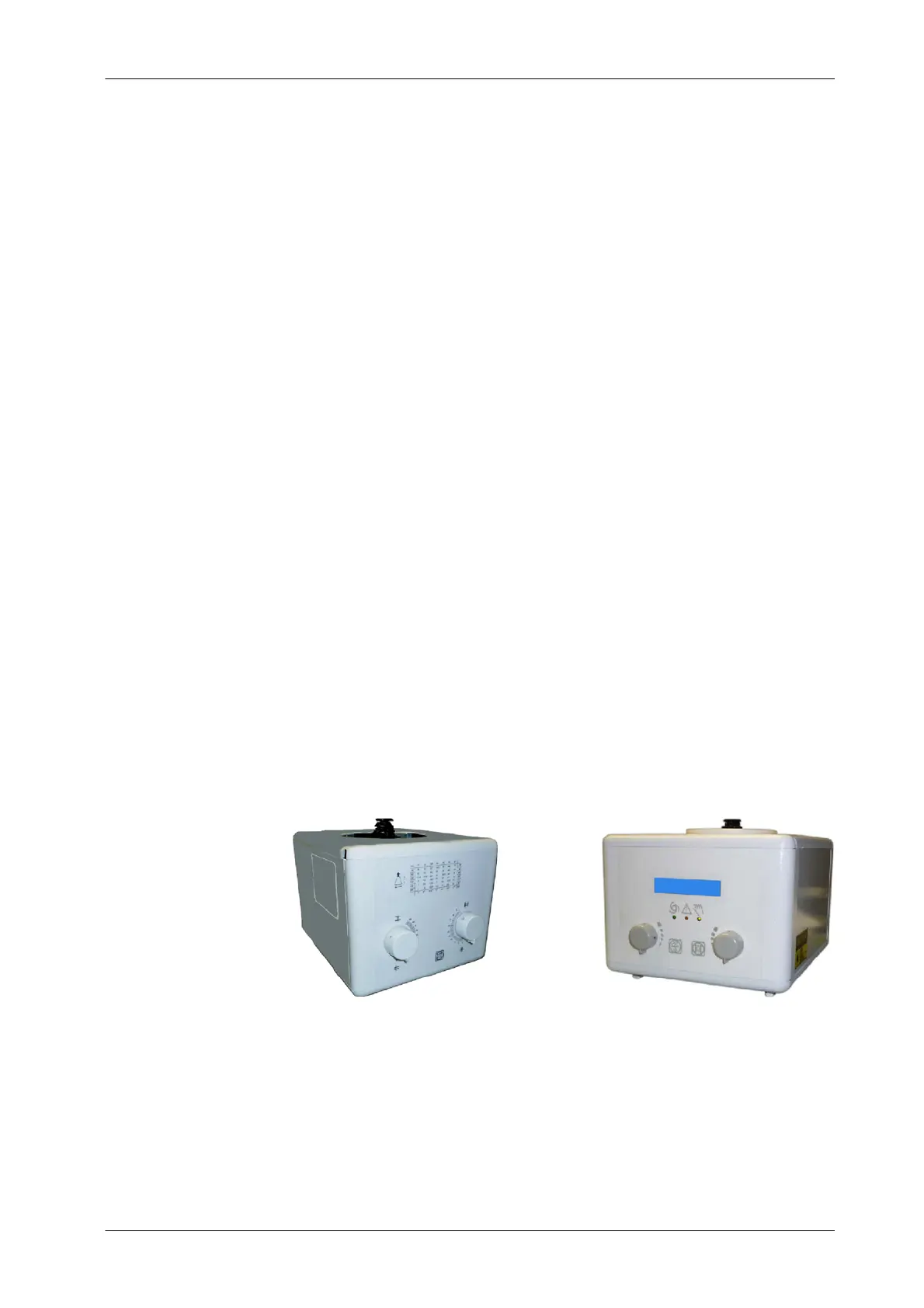

Illustration 4-3
Collimators
Automatic CollimatorManual Collimator
