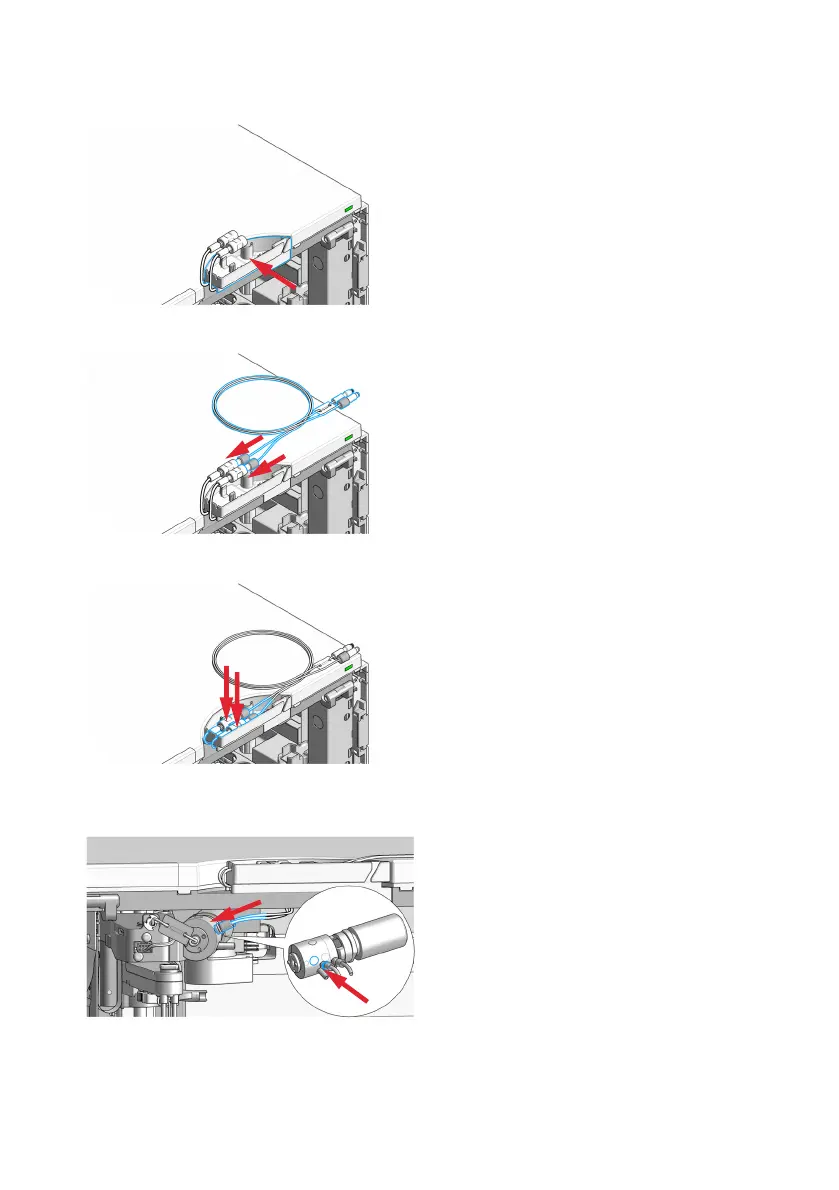

11 Install the leak adapter to the module housing.
12 Connect the outer tubing kit to the unions.
13 Clip the inlet / waste tubing assembly into the leak adapter.
14 A color coded ring on one of the tubings and the valve body indicates, which
tubing belongs to which port.
