Agilent Technologies 33120A

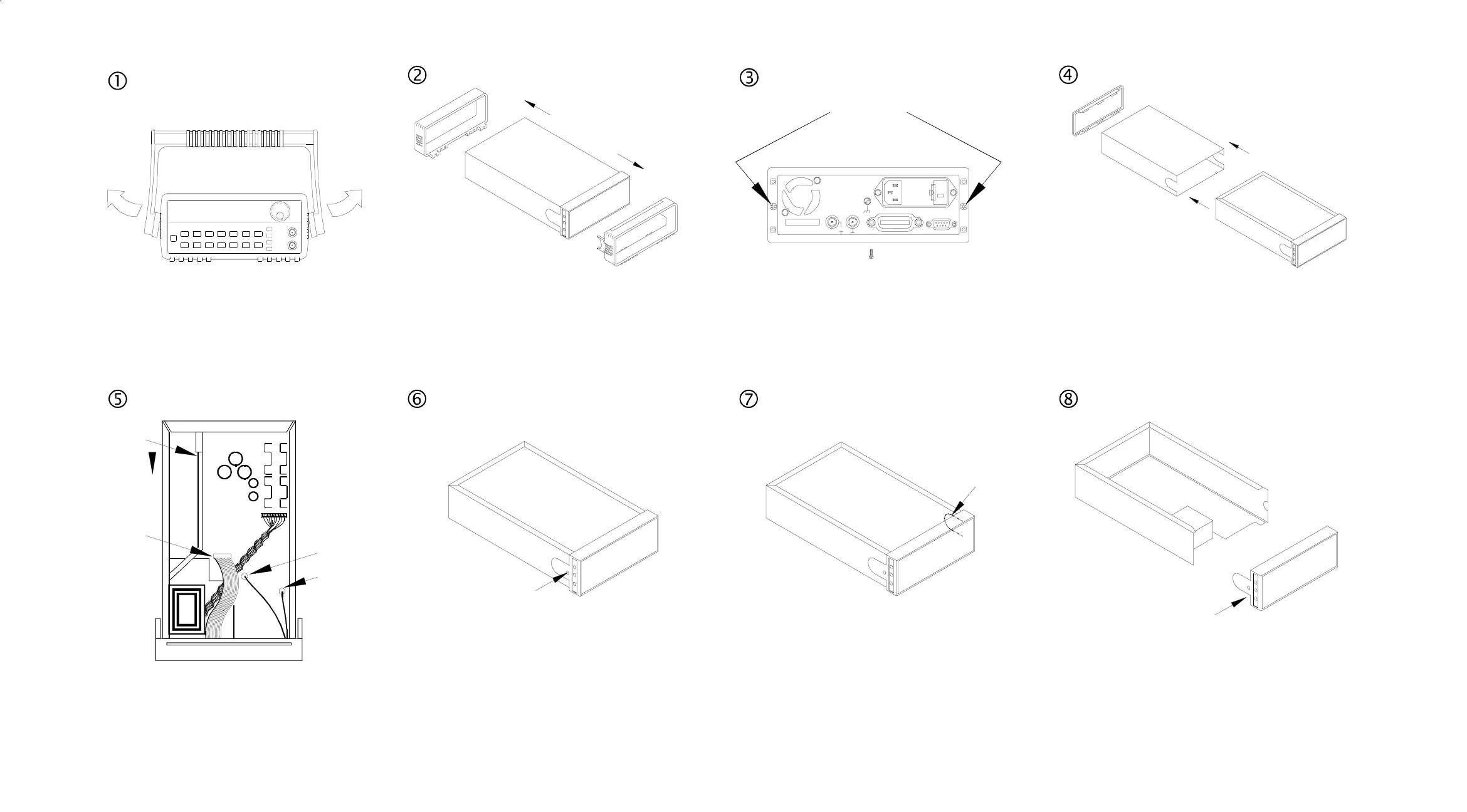

Mechanical Disassembly
130
Pull Off Handle
Pull Off Bumpers
Loosen
Captive
Screws
Remove Bottom Screw
Slide Off Outer Case
Pull To
Remove
Press Down To
Unlatch Cable
Pull Up To
Disconnect
Remove Screw
Pry Outward
From This Side
Front Panel
Will Pull Off
Fold Here
Fold Here
