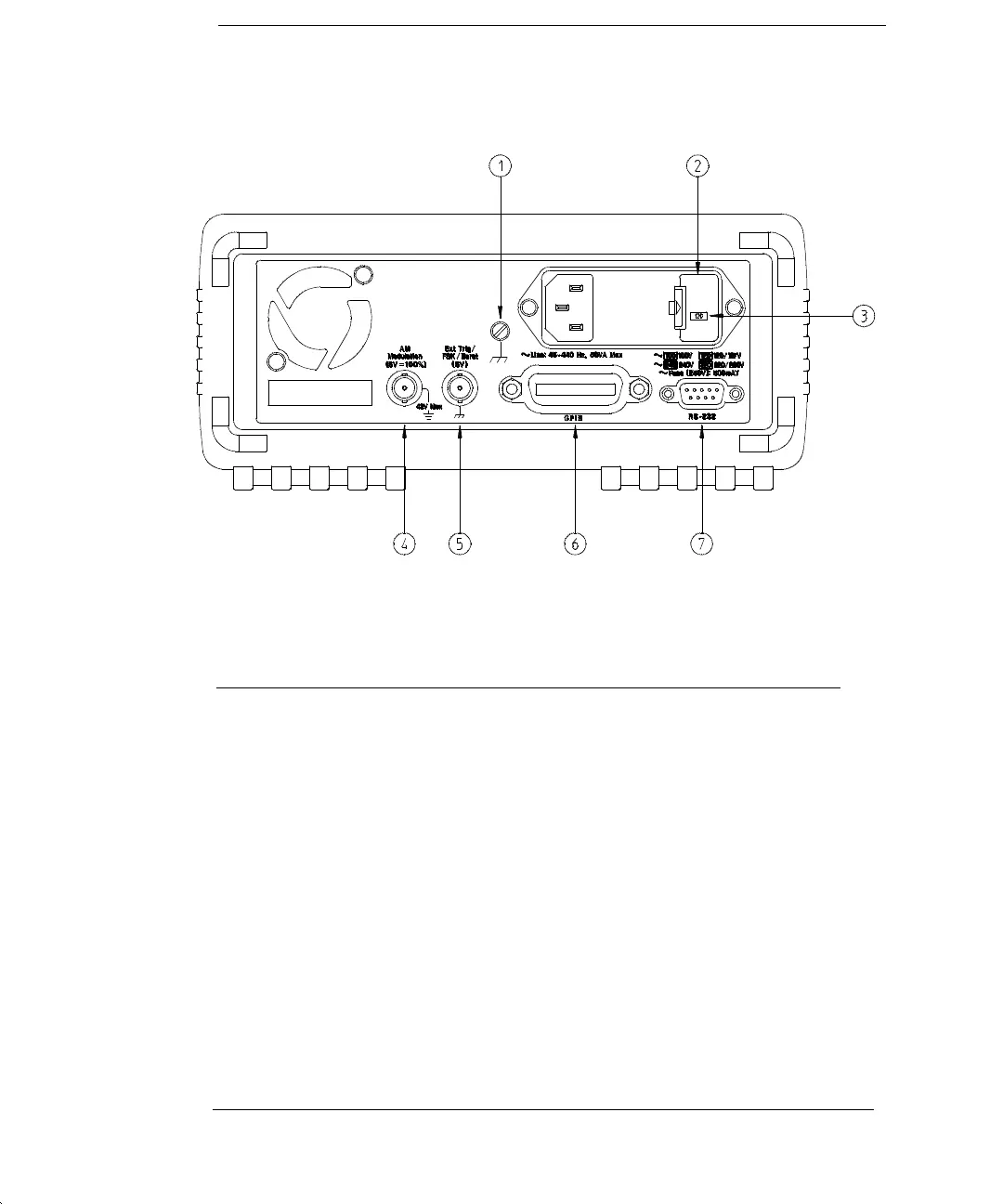

The Rear Panel at a Glance
1 Chassis ground
2 Power-line fuse-holder assembly
3 Power-line voltage setting
4 AM modulation input terminal
5 External Trigger / FSK / Burst modulation
input terminal
6 GPIB (IEEE-488) interface connector
7 RS-232 interface connector
Use the front-panel Input / Output Menu to:
Select the GPIB or RS-232 interface (see chapter 4 in User’s Guide).
Set the GPIB bus address (see chapter 4 in User’s Guide).
Set the RS-232 baud rate and parity (see chapter 4 in User’s Guide).
