Chapter 3 Features and Functions

Output Configuration

• You may protect a device under test (DUT) by specifying upper and

lower voltage limits for the waveform amplitude.

• Front-Panel Operation: To select a function, press . Press

(33521A) or or (33522A) and then set the

Output

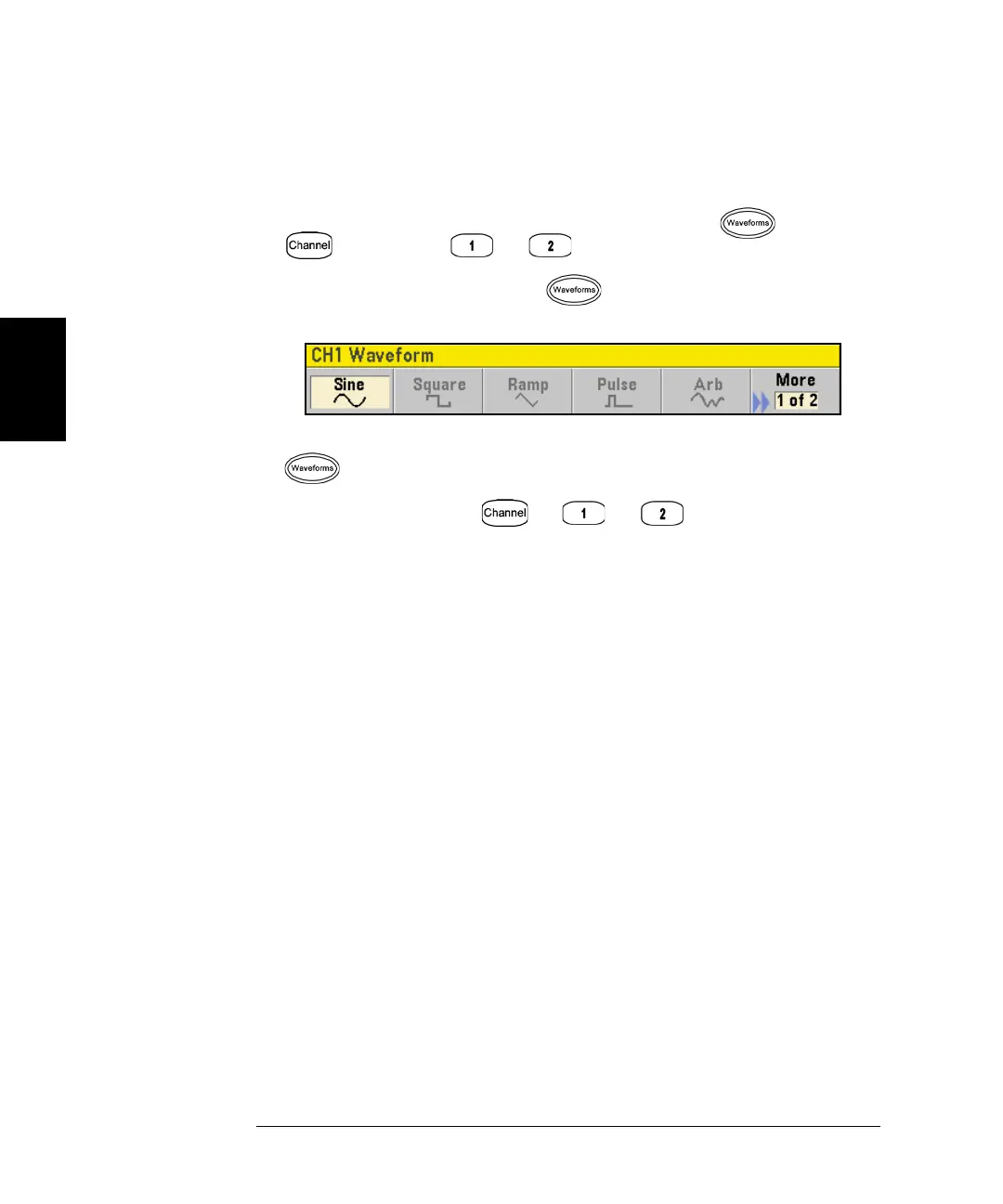

softkey to ON to output the currently selected waveform. To view the

other waveform choices, press to see the first page of the list,

and then press the More softkey to see the rest of the list.

For example, to specify a DC signal from the front panel, press

, then

and

. Enter the

Offset

with the knob or

keypad, and if you use the keypad, press

to finish entering

the value. Then press or or

and make sure the

Output softkey is ON.

• Remote Interface Operation:

FUNCtion

{SINusoid|SQUare|RAMP|PULSe|NOISe|DC|PRBS|ARB}

You can also use the

APPLy

command to select the function, frequency

amplitude, and offset with a single command.
