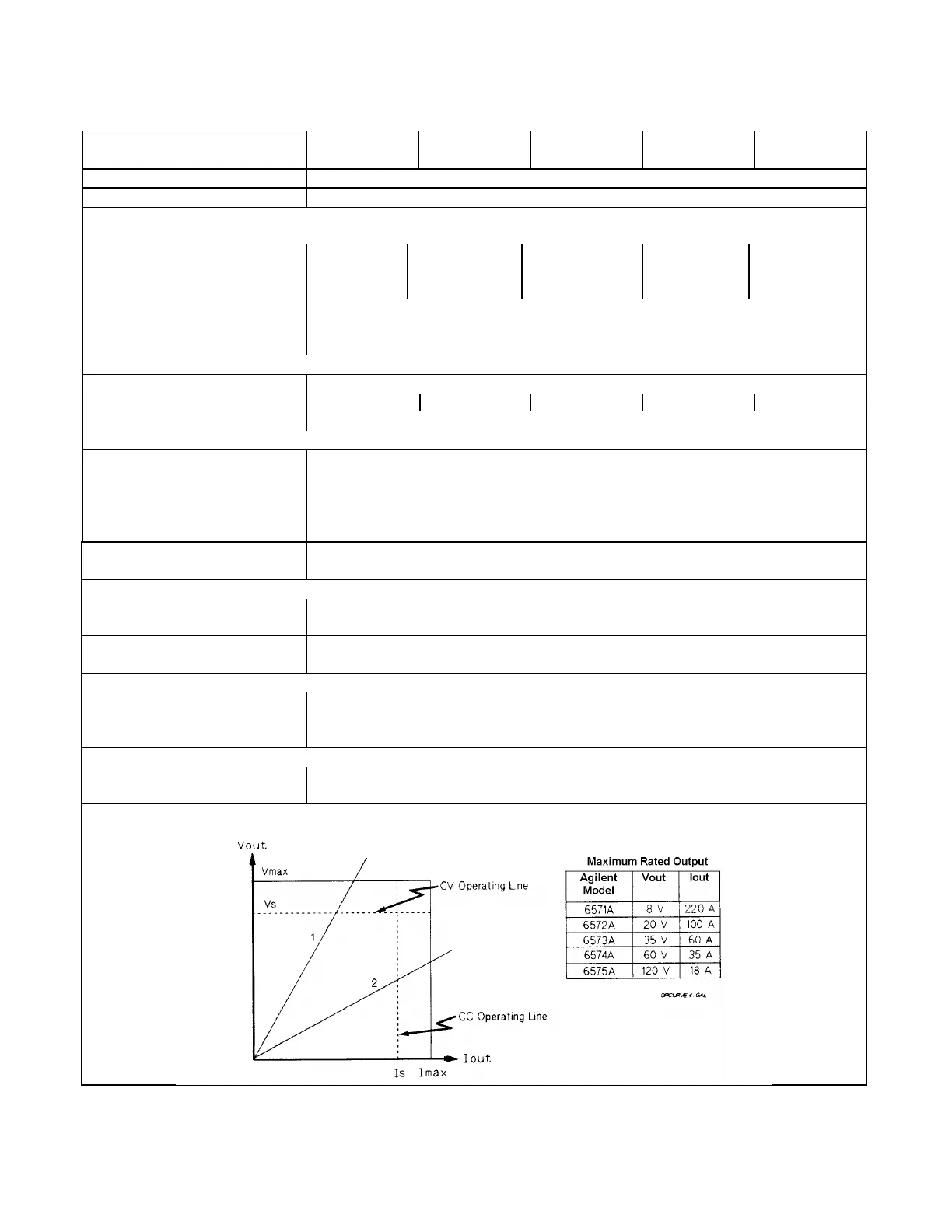

Table 1-2b. Supplemental Characteristics for Series 665xA
(continued)
Parameter
Agilent
6571A
Agilent 6572A Agilent 6573A Agilent 6574A Agilent 6575A
Monotonicity:
Output is monotonic over entire rated voltage, current, and temperature range.
Auto-Parallel Configuration:
Up to 5 identical models.
Analog Programming (IP & VP)
Input Signal*
VP Input:**
+IP/-IP Differential
Input:
0 to -4.72 V
0 to +7.97V
0 to -4.24 V
0 to +6.81 V
0 to -4.25 V
0 to +6.81 V
0 to -4.24 V
0 to +7.01 V
0 to -3.97 V
0 to +6.34 V
Input Impedance
VP Input:
IP Input:
60 kΩ,
52 kΩ
*Signal source must be isolated. **Referenced to output signal common.
Current Monitor (IM)
Output Signal:*
-0.25 to +9.05V -0.25 to +7.7 V -0.25 to +7.7 V -0.25 to +7.93V -0.25 to +7.15V
Output Impedance:
490 Ω
*Corresponds to 0% to 100% output current.
Savable States
Nonvolatile Memory
Locations:
Nonvolatile Memory Write
Cycles:
5
5 ( 0 through 4)
40,000, typical
Recommended Calibration
Interval: 1 year
Safety Compliance
Complies with:
Designed to comply with:
CSA 22.2 No.231 & IEC 348
UL 1244 & VDE 0411
RFI Suppression (complies
with):
FTZ 1046/84, Level B
Dimensions
Width:
Height:
Depth (w/safety cover):
425.5 mm (16.75 in)
132.6 mm (5.22 in)
640 mm (25.2 in)
Weight
Net:
Shipping:
27.7 kg (61 lb)
31.4 kg (69 lb)
Output Characteristic Curve:
