122
Line Voltage Conv
ersion

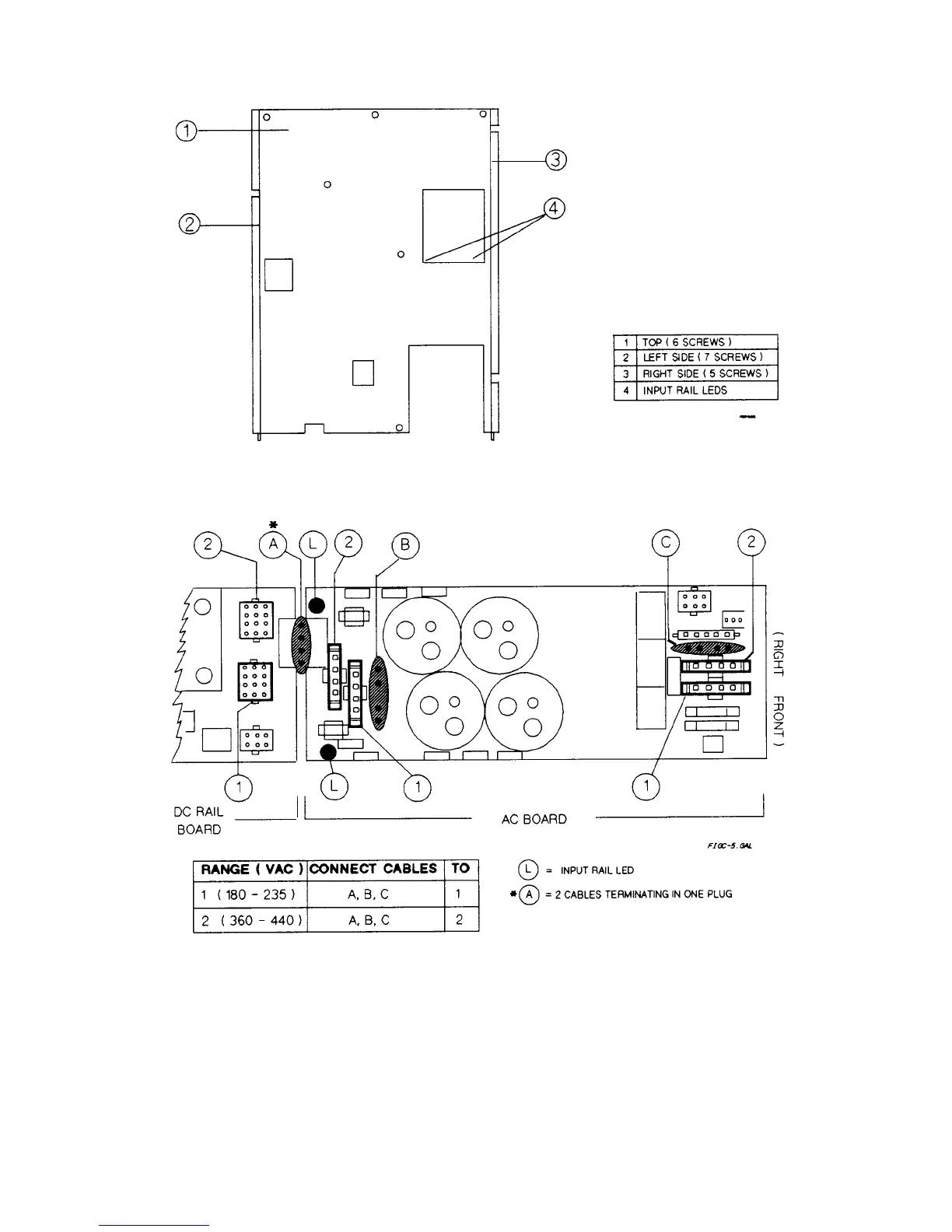

Figure C-4. Remov
ing t
he Series 668xA
/669xA
In
ner Cover
Figure C-5. Series 668xA/669xA
Line Con
version
Jumpers
121
123
Table of Contents
Default Chapter
1
Default Chapter
1
Operating Guide
1
Certification
2
Safety Summary
3
Printing History
4
Declarations
5
Declaration of Conformity
6
Table of Contents
8
General Information
11
Introduction
11
Instrument Identification
12
Options
12
Safety Considerations
12
Accessories
13
Description
13
Analog Programming
14
Front Panel Programming
14
Remote Programming
14
Downprogramming
15
General
15
Output Characteristic
15
Specifications and Supplemental Characteristics
15
Installation
43
Damage
43
Inspection
43
Items Supplied
43
Packaging Material
43
Bench Operation
44
Location and Temperature
44
Rack Mounting
44
Temperature Performance
44
Input Power Source
45
Installing the Series 664Xa and 665Xa Power Cord
45
Installing the Series 667Xa Power Cord
45
Installing the Series 668Xa Power Cord
47
Installing the Series 669Xa Power Cord
48
Turn-On Checkout
51
Introduction
51
Preliminary Checkout (All Models)
51
Backspace Key
52
Output Checkout (All Models)
52
Power-On Checkout (All Models)
52
Shifted Keys
52
Using the Keypad (All Models)
52
Checking the Voltage Function
53
Checking the Current Function
54
Checking the Save and Recall Functions (All Models)
55
Determining the GPIB Address (All Models)
55
In Case of Trouble
55
Line Fuse
55
Series 664Xa and 665Xa Supplies
56
Series 667Xa Supplies
56
Error Messages (All Models)
57
Power-On Error Messages
57
Selftest Errors
57
Series 668Xa Supplies
57
Series 669Xa Supplies
57
Checksum Errors
58
Runtime Error Messages
58
User Connections
59
Load Wire Selection (All Models)
59
Rear Panel Connections (All Models)
59
Analog Connector (All Models)
60
Digital Connector (All Models)
60
Connecting Series 664Xa and 665Xa Power Supplies to the Load
61
Load Considerations
61
Output Isolation
61
Local Voltage Sensing
62
Remote Voltage Sensing
63
Connecting One Supply to the Load
64
Connecting Supplies in Auto-Parallel
65
Connecting Supplies in Series
67
External Voltage Control
67
Connecting Series 667Xa Power Supplies to the Load
68
Output Isolation
68
Load Considerations
69
Local Voltage Sensing
70
Remote Voltage Sensing
70
Connecting One Power Supply to a Single Load
72
Connecting One Power Supply to Multiple Loads
72
Connecting Supplies in Auto-Parallel
73
Connecting Supplies in Series
74
External Voltage Control
75
Connecting Series 668Xa and 669Xa Power Supplies to the Load
76
Load Considerations
76
Output Isolation
76
Local Voltage Sensing
77
Remote Voltage Sensing
77
Connecting One Power Supply to a Single Load
79
Connecting One Power Supply to Multiple Loads
79
Connecting Supplies in Auto-Parallel
80
Connecting Supplies in Series
81
External Voltage Control
82
Controller Connections
83
Linked Connections
83
Stand-Alone Connections
83
Front Panel Operation
85
Getting Acquainted
85
Introduction
85
Establishing Initial Conditions
88
Programming the Output
88
Programming Overvoltage Protection
89
Programming Voltage
89
Programming Current
90
CV Mode Vs. CC Mode
91
Programming Overcurrent Protection
91
Saving and Recalling Operating States
92
Turn-On Conditions
92
Unregulated Operation
92
Changing the Power Supply GPIB Address
93
Setting the GPIB Address
93
Types of Power Supply GPIB Addresses
93
Calibration
95
General Procedure
96
Front Panel Calibration
96
Recovering from Calibration Problems
99
Calibration over the GPIB
100
Cal:curr
100
CAL:CURR:MON (Series 668Xa/669Xa Only)
101
Cal:volt
102
Operation Verification
105
Performing the Tests
107
Order of Tests
107
Current Programming and Readback Accuracy
108
Line Voltage Conversion
119
Series 664Xa and 665Xa Power Supplies
120
Series 667Xa Power Supplies
120
Series 668Xa/669Xa Power Supplies
121
Digital Port Functions
123
Fault/Inhibit Operation
126
Digital Connector
126
Changing the Port Configuration
126
Digital I/O Operation
127
Relay Link Operation
127
Current Loop Compensation (Series 668Xa Only)
129
Function of Loop Compensation
132
Introduction
132
Setting the Loop Compensation Switch
132
Using Agilent 668Xa/669Xa Series Power Supplies in Autoparallel
133
Output Bus Bar Options
135
Index
137
