Specifications
Pulse Parameter Definitions
practice, start points may shift with changes in transition time) when
transition times are varied. This is more convenient for programming and
the width display is easy to interpret.

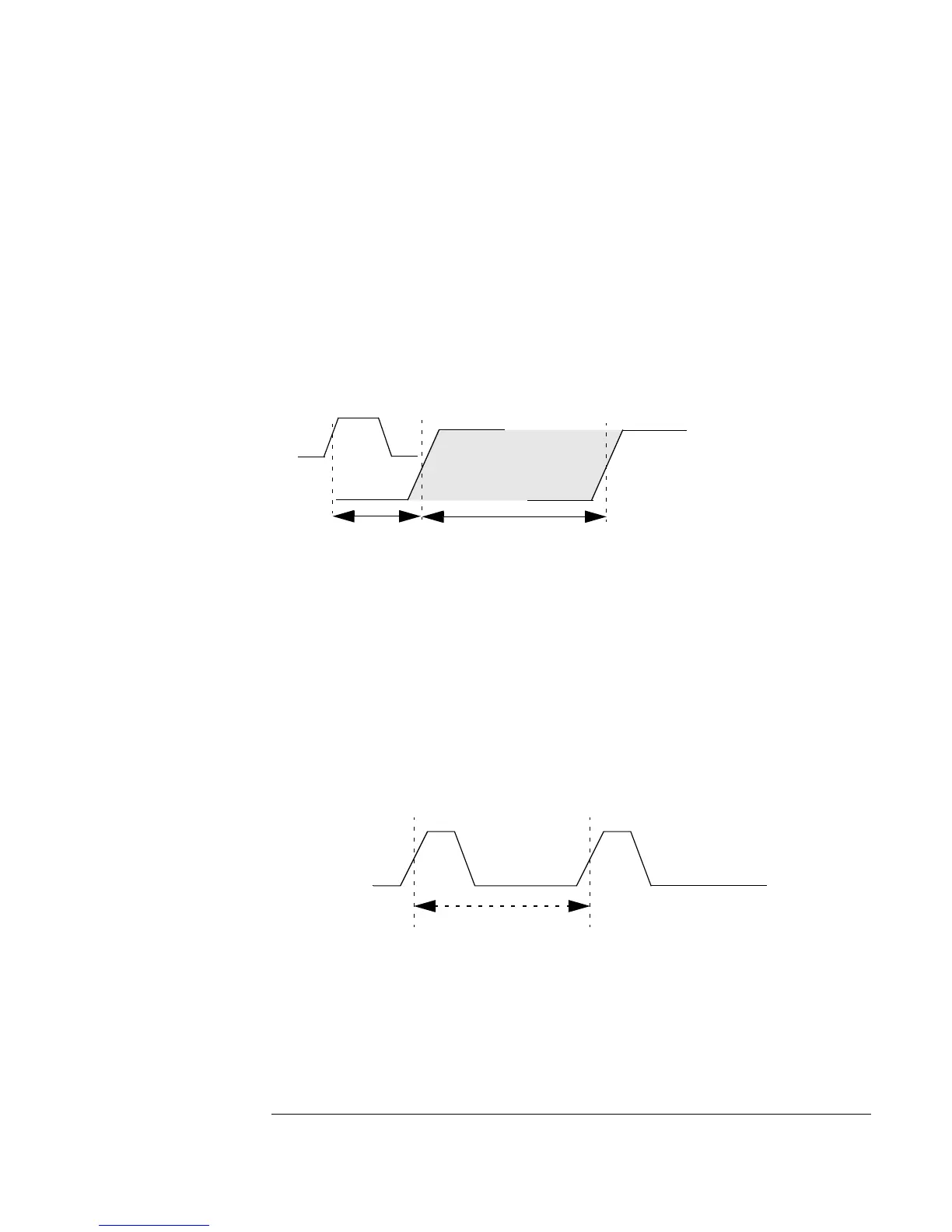

Pulse Delay
Interval between leading edge medians of trigger output pulse and output
pulse:
The specified and displayed value is that obtained with the fastest
leading edge. Pulse delay has two components, a fixed delay from trigger
output to output signal and a variable delay with respect to the trigger
output.
Double Pulse Delay
Interval between leading edge medians of the double pulses.
Interchannel Delay (Skew)
Interval between corresponding leading edge medians of the output
signals.
Variable Delay
Fixed Delay
Trigger
Output
Output
Signal
Double Pulse Delay
