Agilent Technologies 81101A Reference Guide

106
Specifications

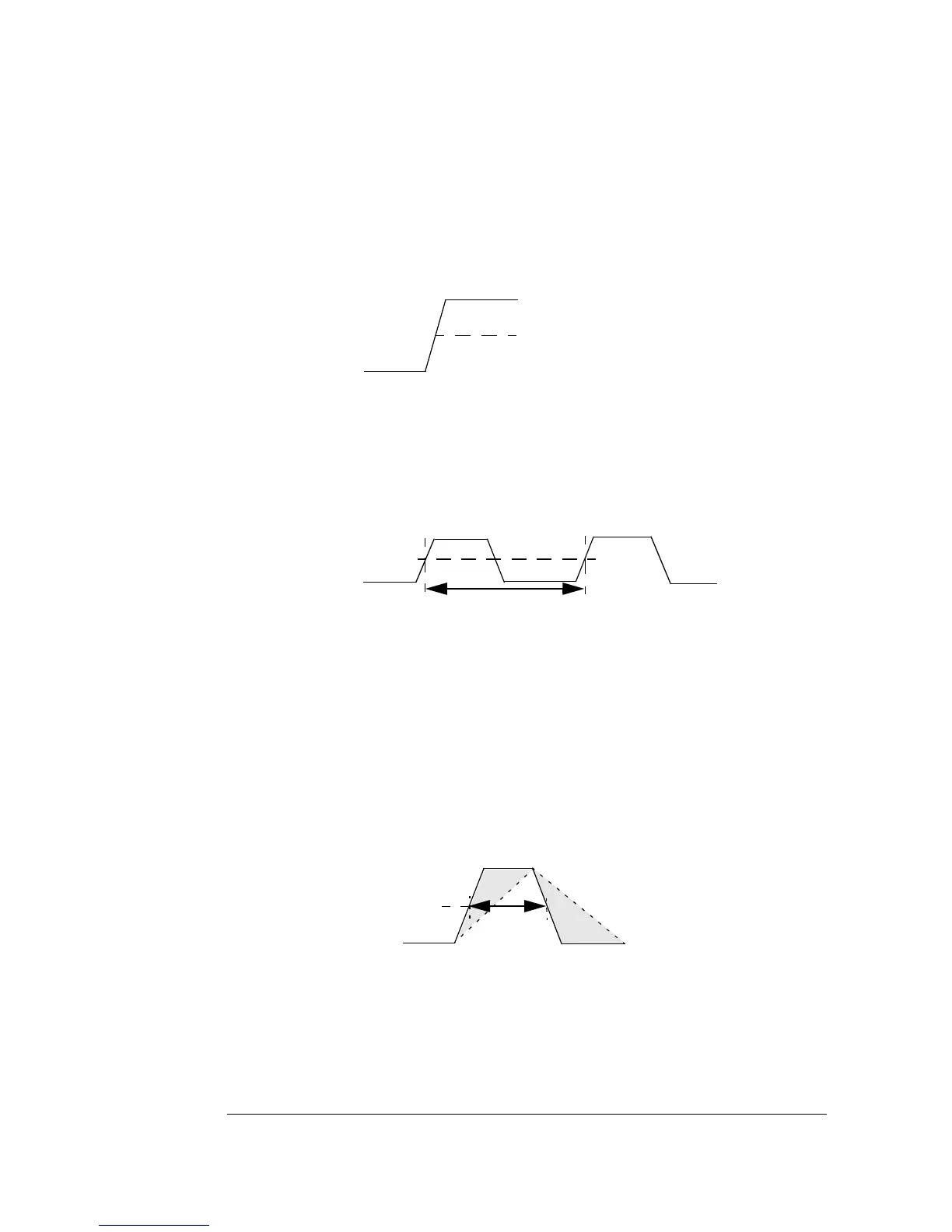

Pulse Parameter Definitions
Time Reference Point
The time reference point is at the median of the amplitude (50%
amplitude point on pulse edge):
Pulse Period
The time interval between the leading edge medians of consecutive
output pulses:
Trigger Delay
Interval between trigger point of the external trigger input signal and the
trigger output pulse’s leading edge median.
Pulse Width
Interval between leading and trailing edge medians:
The specified and displayed value is that obtained with fastest edges,
essentially equal to the interval from the start of the leading edge to the
start of the trailing edge. By designing so that the pulse edges turn about
their start points, the interval from leading edge start stays unchanged (in
50%
100%
0%
Median
50%
Pulse Period
50%
Specified
Width
