The Logging Application Applications
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 231
Running a Logging Application
17 You can run the logging application by pressing [Measure]. The
Logging Measurement screen, as shown in Figure 148, appears. A
progress bar shows the proportion of the logging application that
has been completed.
NOTE If the averaging time [AvgTime] is less than 100 ms for an Agilent
8163xA/B series powermeter, the progress bar and the graph are not
updated until the measurement completes.
18 There are two softkeys available from the Logging Measurement
screen.
– Press [Graph] to view a graph of the Measurement results as the
results are measured. Press [Close] to return to the Logging
Measurement screen. See “Working with Application Graphs” on
page 215 for information on zooming in and out.
– Press [Cancel] to return to the Logging Setup screen without
completing the logging application.
19 When the logging application completes, you hear a beep, an
hourglass appears momentarily. If you are viewing the Logging
Measurement Screen the available softkeys change as shown in
Figure 149.

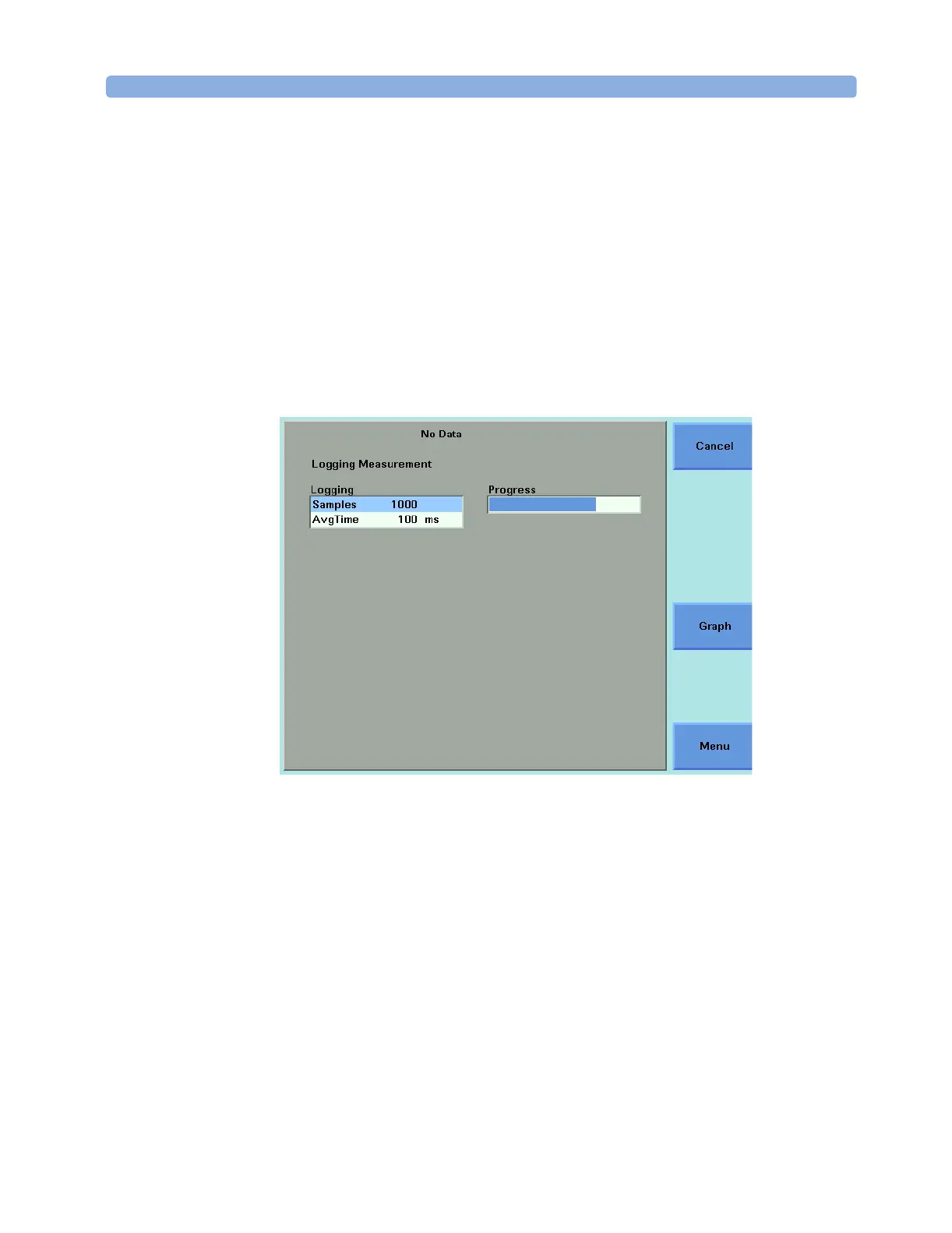

Figure 148 The Logging Measurement Screen - Measurement Running
