Power Measurement How to Measure Power
98 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
How to Hold the Screen
Pressing the [Hold/Cnt] softkey allows you to hold the screen so that
no new measurements are displayed. Hold is displayed as shown in
Figure 55.

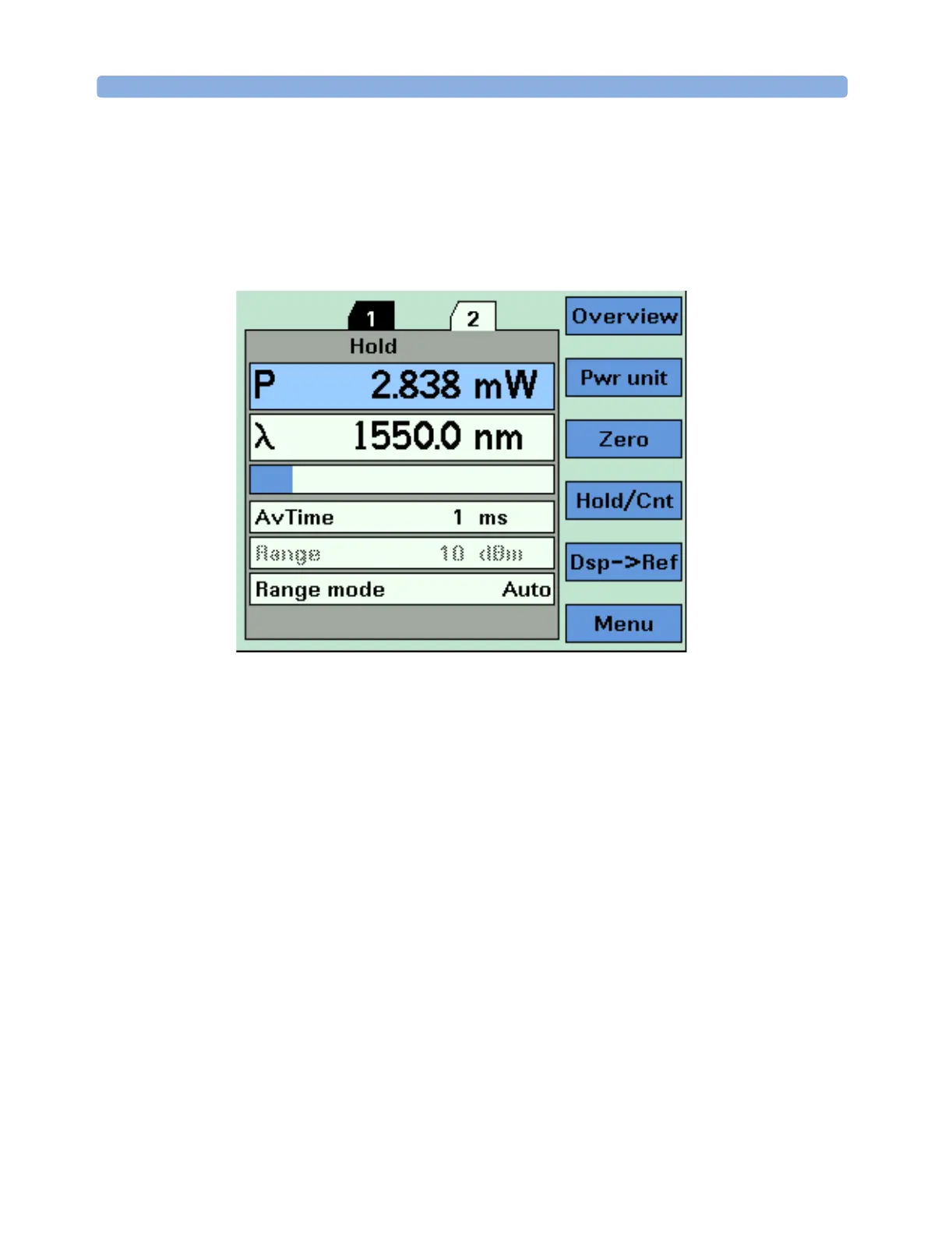

Figure 55 Power Module Channel is Held - Overview Screen
By pressing the [Hold/Cnt] softkey a second time the screen will
display new measurements continuously.
How to Use Triggers
Agilent 8163A/B Series Power Meter modules allow you trigger the
instrument to perform tasks and to output trigger signals to external
measurement instruments.
NOTE For a Dual Power Sensor and Dual Interface Modules, you cannot set
any trigger parameters of the slave channel, channel 2, directly. By
default, all the trigger parameters for the slave channel, channel 2, are
the same as for the master channel, channel 1. See Table 8 on page 101
for more details.
