The Stability Application Applications
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 239
\

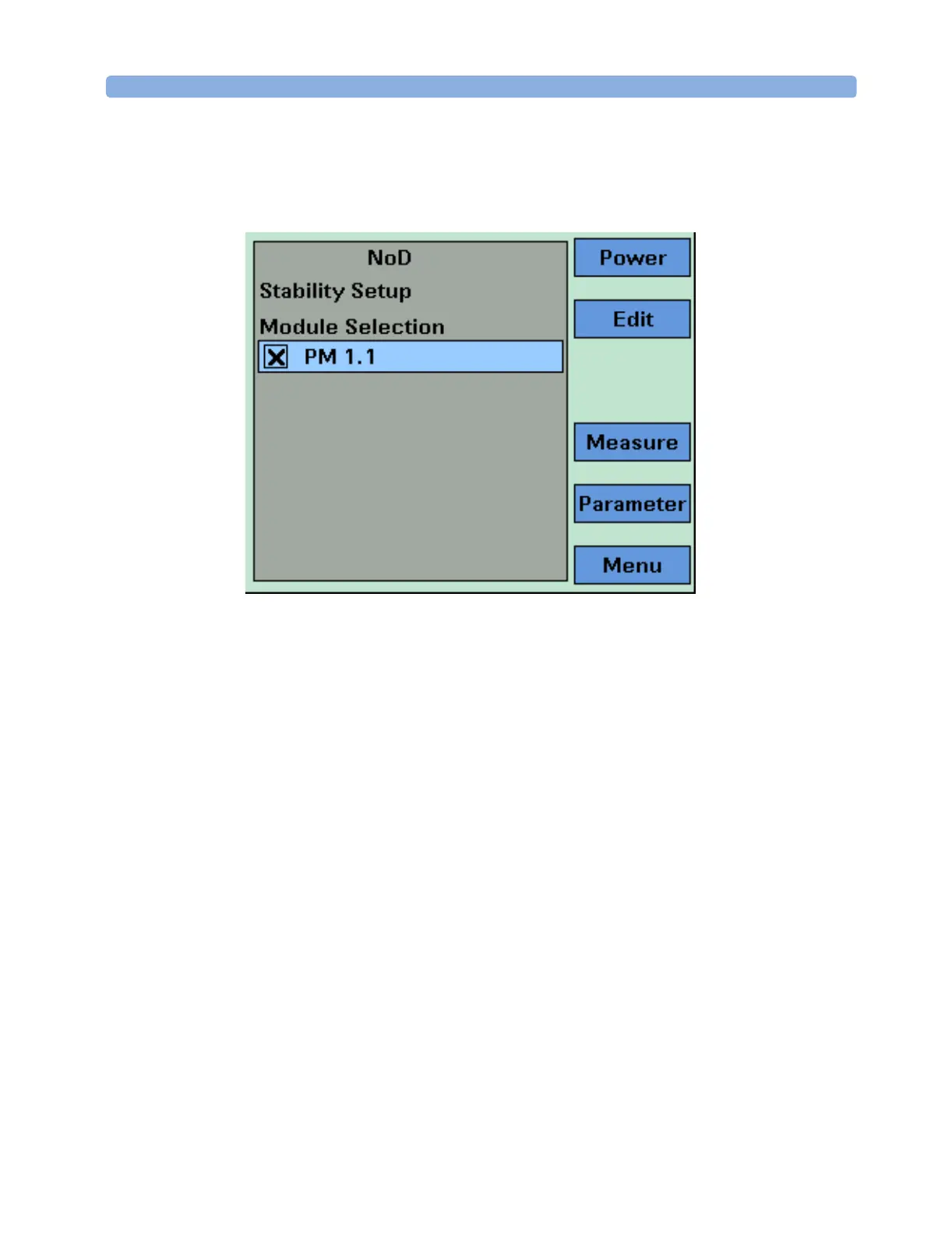

Figure 155 The Agilent 8163B Stability Module Setup Screen
Selecting/Deselecting Power Meters
2 Move to the Module Selection box. As a default, all Power Meters are
selected, this means that all Power Meters will log power
measurements. Press [Edit].
3 To deselect a Power Meter channel, move to the Power Meter as
denoted by slot and channel numbers, see “Slot and Channel
Numbers” on page 40, press [Unset].
4 To select a Power Meter channel, press [Edit], move to the Power
Meter as denoted by slot and channel numbers, see “Slot and
Channel Numbers” on page 40, press [Set].
5 Perform steps until you have selected the required Power Meters for
your application and press Enter.
NOTE If no Power Meter channel is selected, you cannot exit by pressing
Enter.
