How to Use Laser Source Modules Laser Sources
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 105
How to Use Laser Source
Modules
The Laser Wavelength Value
The laser wavelength value [λ] for a fixed-wavelength laser source
module is the calibrated optical wavelength value for the laser source.
This is a fixed value, you can display the value but you cannot edit it.
Dual-Wavelength Laser Source Modules
Dual-wavelength laser source modules have optical outputs at two
wavelengths. You can choose to output an optical signal at either a
single wavelength or at both wavelengths simultaneously.
To choose both output wavelengths for a dual-wavelength laser source
module:
1 Move to [λ] parameter and press Enter.
2 Select <1309.6+1551.6>, using the cursor key, and press Enter. You
will see the screen in Figure 59.

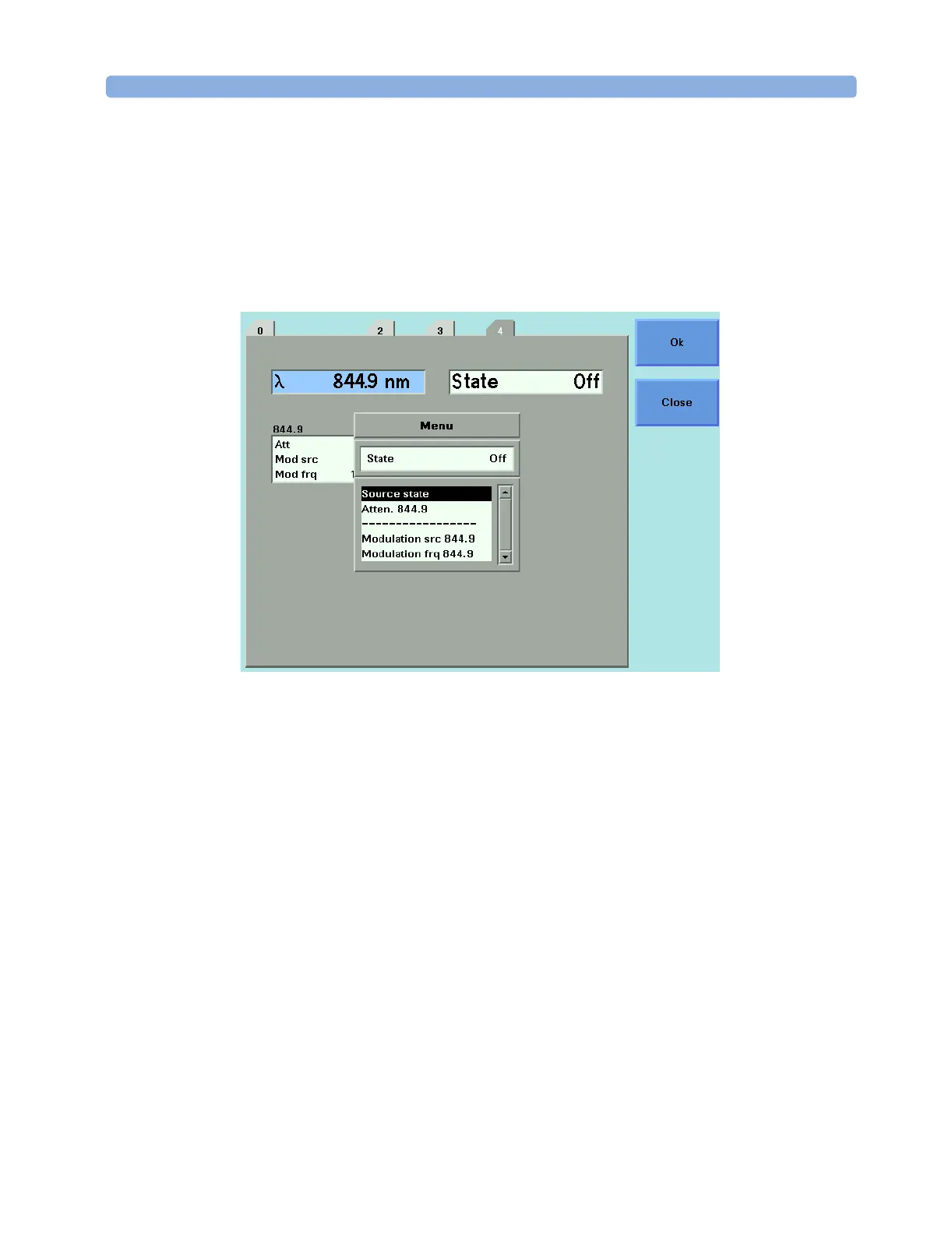

Figure 58 Menu of Parameters for a Fixed Wavelength Laser Source
