Input and Output Connectors Installation and Maintenance
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 289
1 Position the blind panel as shown in Figure 194. Position the end
closest to the handle against the bottom edge of the slot.
2 Push the top of the blind panel so that it clicks into position.
NOTE To remove a blind panel, pull the handle.
Fitting a Filler Module for Back-Loadable Module Slots
The Agilent 81645A Filler Module must be used if you have not
installed a back-loadable Tunable Laser module into the
Agilent 8164A/B Lightwave Measurement System.
The Agilent 81645A Filler Module can be fitted in the same way as any
back-loadable module, see “How to Fit and Remove Modules” on
page 283.
The Agilent 81645A Filler Module can be removed in the same way as
any back-loadable module, see “How to Remove a Back-Loadable
Module” on page 285.
Input and Output Connectors
There are three BNC connectors on the rear panel of your instrument.
These are the Remote Interlock, the Trigger Out and the Trigger In
connectors.

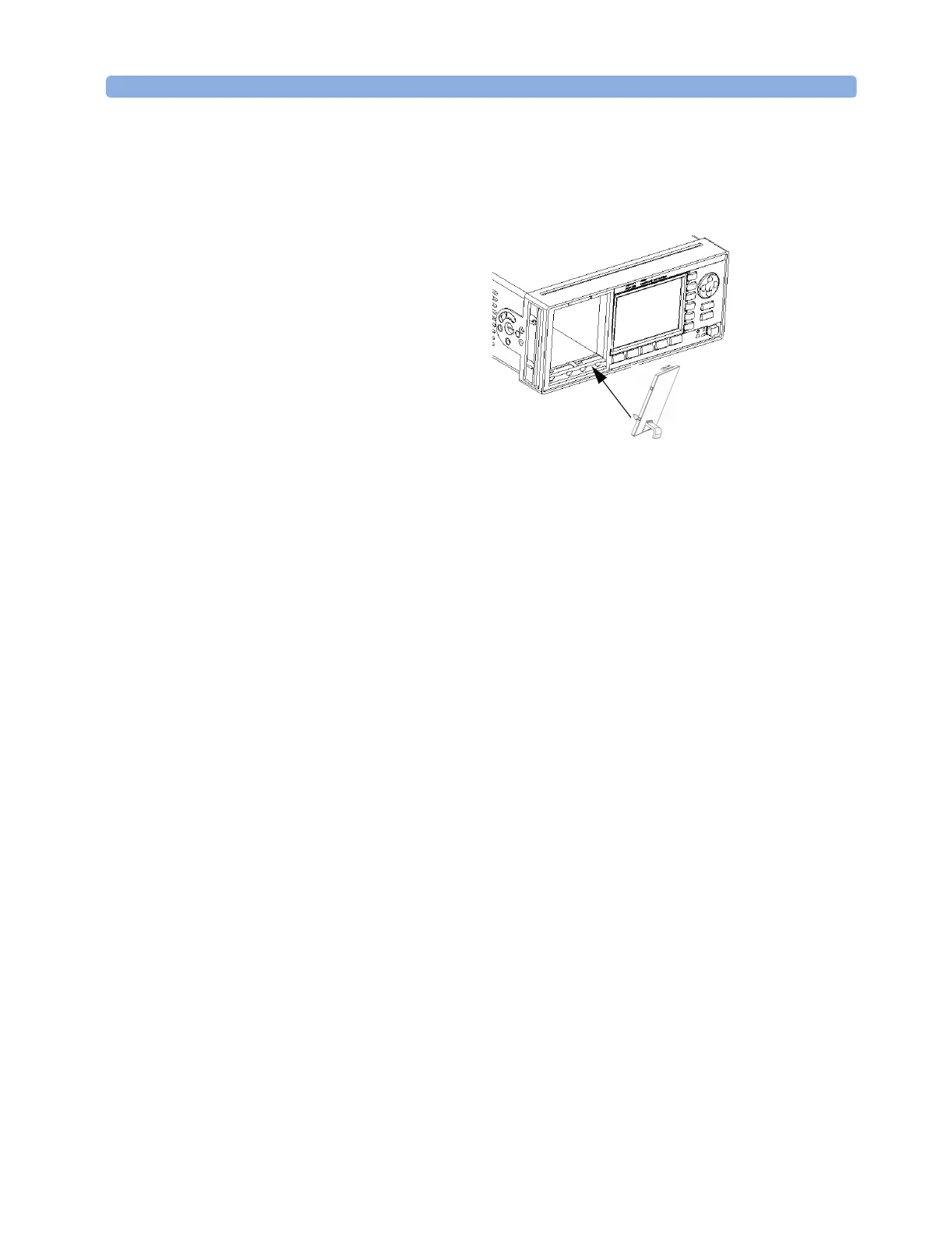

Figure 194 Fitting a Blind Panel
