The Status Model Introduction to Programming
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Fifth Edition 35
Status System for 8163A/B & 8164A/B
The status system for the Agilent 8163A/B Lightwave Multimeter and the
Agilent 8164A/B Lightwave Measurement System returns the status of 2
and 5 module slots respectively. The Operational/Questionable Status
Summary Registers consist of one level and are described by Figure 4 .
Any commands that require LEVel1 do not apply to these mainframes.

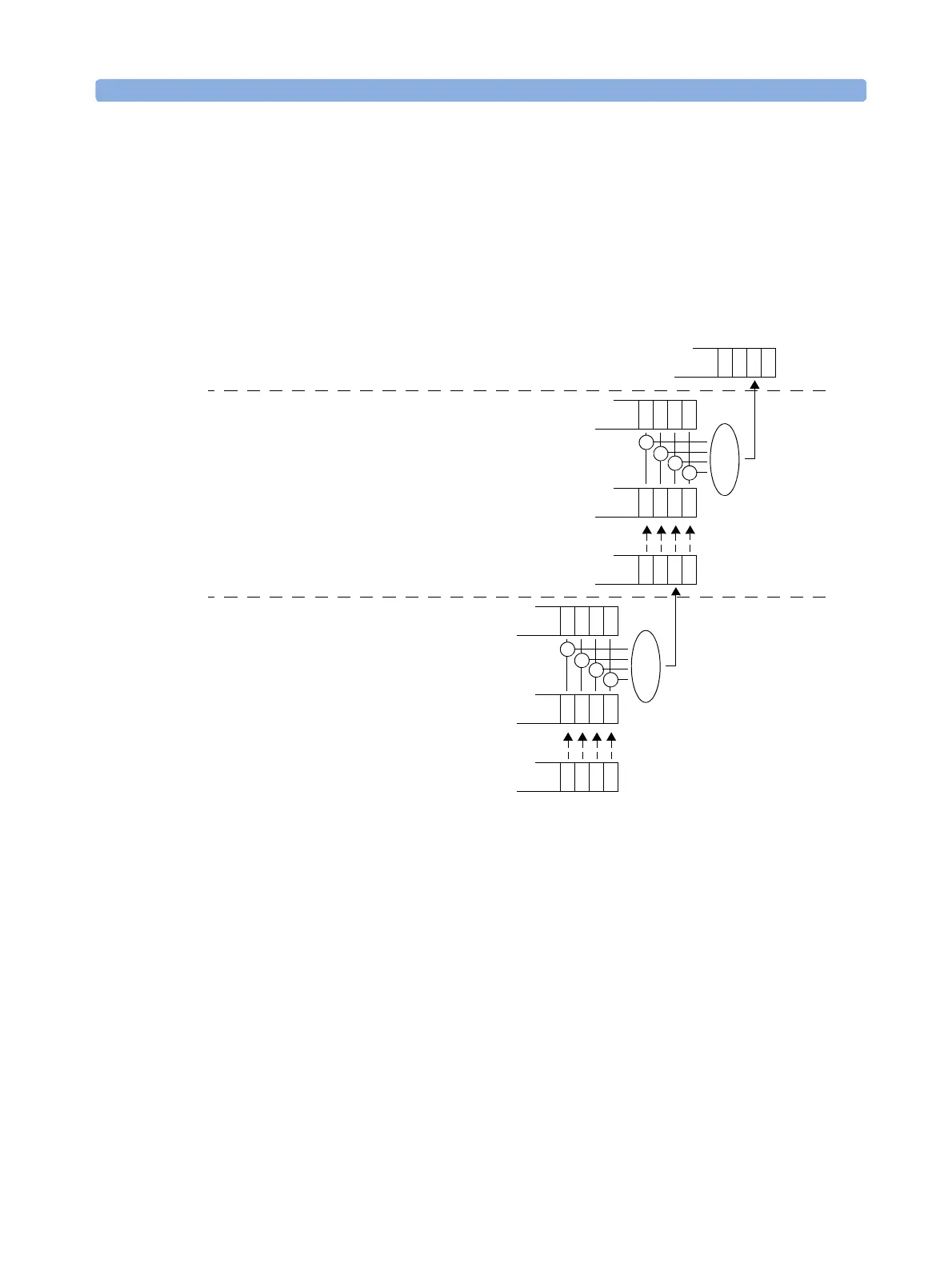

Figure 4 The Operational/Questionable Status System for 8163A/B & 8164A/B
Operational/Questionable Status
Operational/Questionable Status
Operational/Questionable Status
Condition Summary Register
Event Summary Register
Enable Summary Mask
Register
Status Byte
Status Byte Register
Status Summary
to next
Operational/Questionable
Operational/Questionable
Operational/Questionable
Slot Status Condition
Slot Status Event
Slot Status Enable Mask
&
&
&
&
OR
level
to next
for a positive
&
&
&
&
OR
level
Slot 1
transition
for a positive
transition
Register
Register
Register
To Next Page
