Agilent Technologies 83640B Troubleshooting Guide

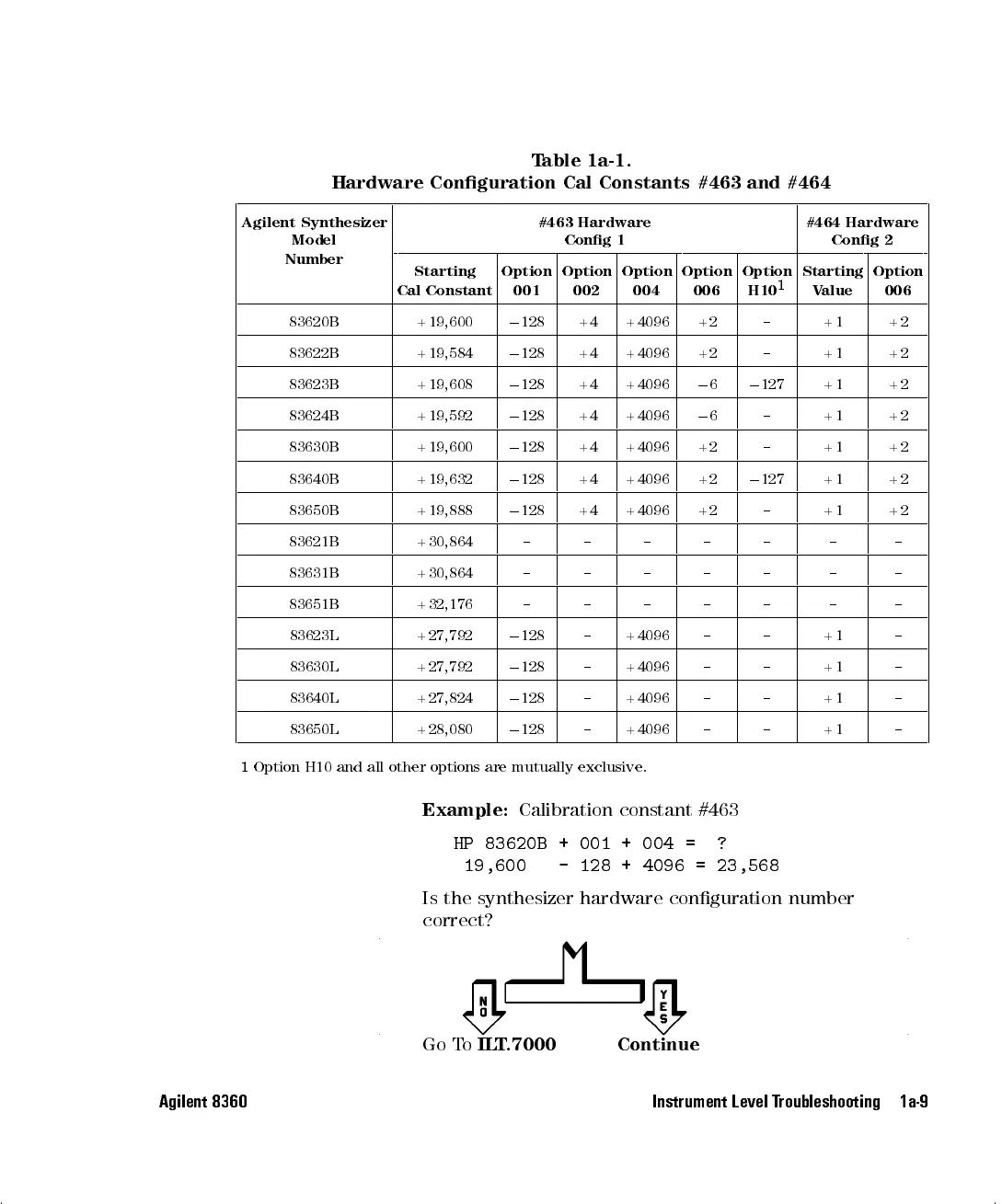

Table 1a-1.
Hardware Conguration Cal Constants #463 and #464
Agilent Synthesizer
Model
Number
#463 Hardware
Cong 1
#464 Hardware
Cong 2
Starting
Cal Constant
Option
001
Option
002
Option
004
Option
006
Option
H10
1
Starting
Value
Option
006
83620B +19,600 0 128 +4 +4096 +2 { +1 +2
83622B +19,584 0 128 +4 +4096 +2 { +1 +2
83623B +19,608 0 128 +4 +4096 0 6 0 127 +1 +2
83624B +19,592 0 128 +4 +4096 0 6 { +1 +2
83630B +19,600 0 128 +4 +4096 +2 { +1 +2
83640B +19,632 0 128 +4 +4096 +2 0 127 +1 +2
83650B +19,888 0 128 +4 +4096 +2 { +1 +2
83621B +30,864 { { { { { { {
83631B +30,864 { { { { { { {
83651B +32,176 { { { { { { {
83623L +27,792 0 128 { +4096 { { +1 {
83630L +27,792 0 128 { +4096 { { +1 {
83640L +27,824 0 128 { +4096 { { +1 {
83650L +28,080 0 128 { +4096 { { +1 {
1 Option H10 and all other options are mutually exclusive.
Example: Calibration constant #463
HP 83620B + 001 + 004 = ?
19,600 - 128 + 4096 = 23,568
Is the synthesizer hardware conguration number
correct?
Go To ILT.7000 Continue
Agilent 8360 Instrument Level Troubleshooting 1a-9
