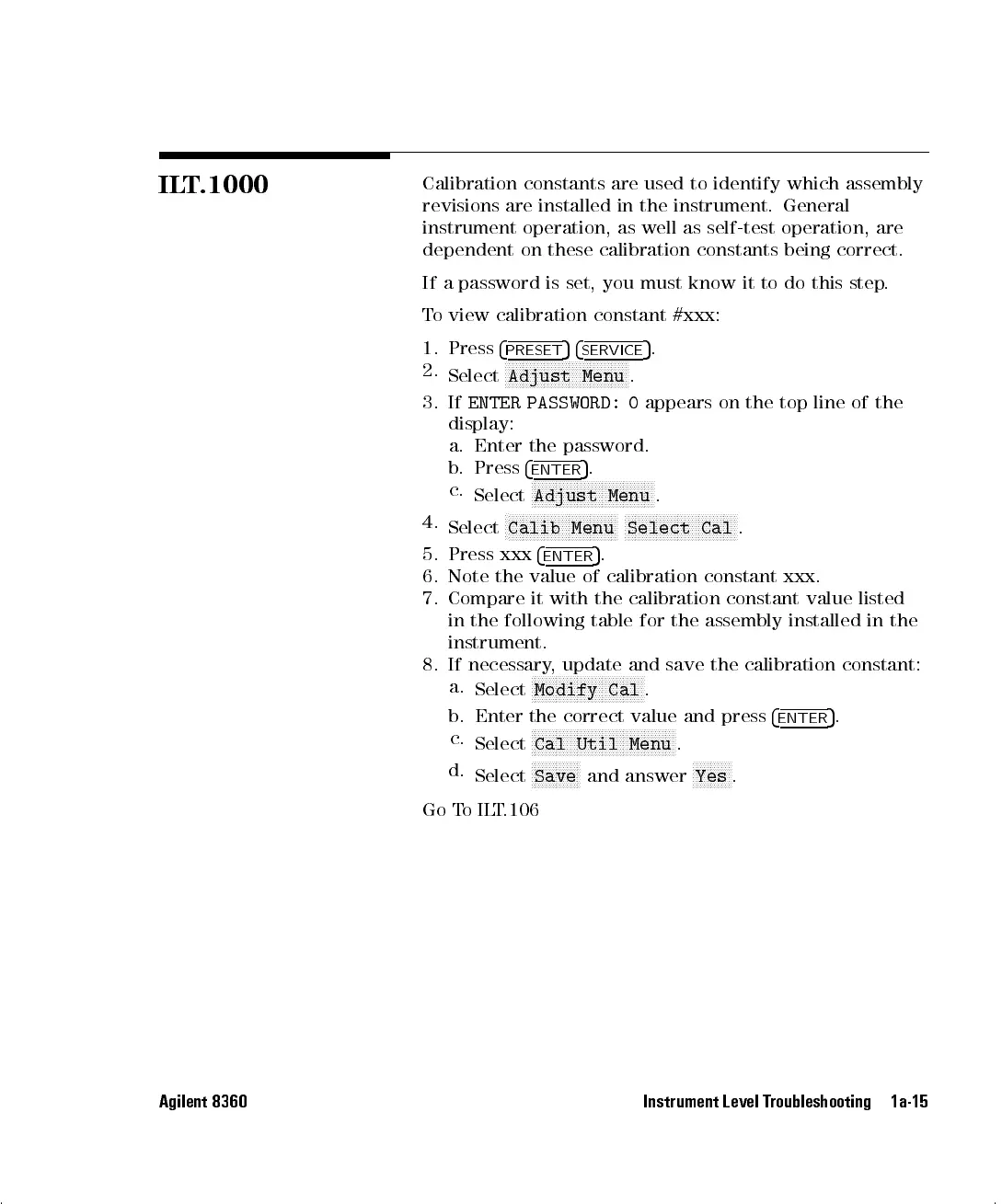

Calibration constants are used to identify which assembly
revisions are installed in the instrument. General
instrument operation, as well as self-test operation, are
dependent on these calibration constants being correct.
If a password is set, you must know it to do this step.
To view calibration constant #xxx:
1. Press 4
PRESET
54
SERVICE
5 .
2.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Adjust Menu .
3. If ENTER PASSWORD: 0 appears on the top line of the
display:
a. Enter the password.
b. Press 4
ENTER
5 .
c.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Adjust Menu .
4.
Select
N
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Calib Menu
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Select Cal .
5. Press xxx 4
ENTER
5 .
6. Note the value of calibration constant xxx.
7. Compare it with the calibration constant value listed
in the following table for the assembly installed in the
instrument.
8. If necessary, update and save the calibration constant:
a.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Modify Cal .
b. Enter the correct value and press 4
ENTER
5 .
c.
Select
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Cal Util Menu .
d.
Select
NNNNNNNNNNNNNN
Save and answer
NNNNNNNNNNN
Yes .
Go ToILT.106
