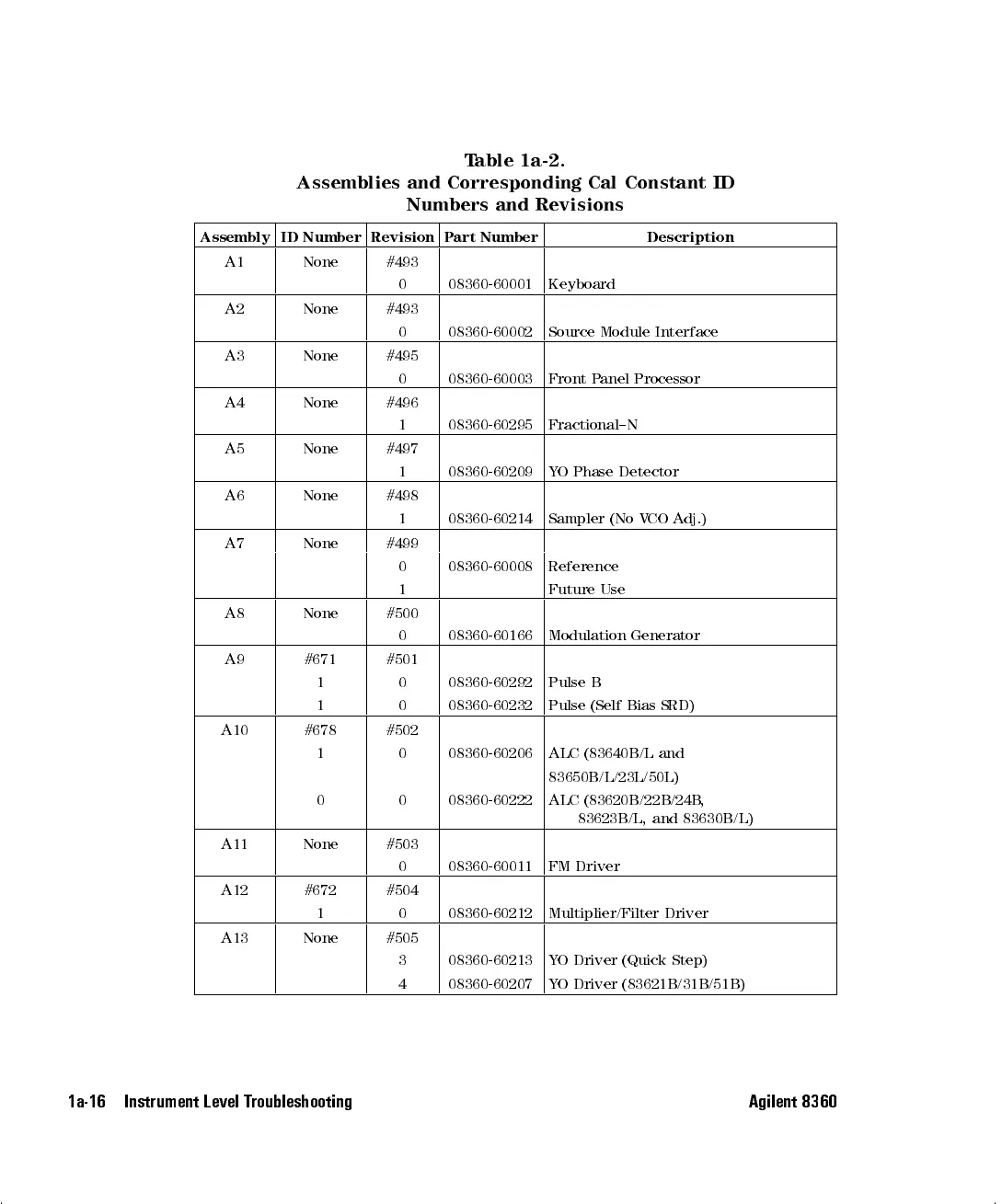

Table 1a-2.
Assemblies and Corresponding Cal Constant ID
Numbers and Revisions
Assembly ID Number Revision Part Number Description
A1 None #493
0 08360-60001 Keyboard
A2 None #493
0 08360-60002 Source Module Interface
A3 None #495
0 08360-60003 Front Panel Processor
A4 None #496
1 08360-60295 Fractional{N
A5 None #497
1 08360-60209 YO Phase Detector
A6 None #498
1 08360-60214 Sampler (No VCO Adj.)
A7 None #499
0 08360-60008 Reference
1 Future Use
A8 None #500
0 08360-60166 Modulation Generator
A9 #671 #501
1 0 08360-60292 Pulse B
1 0 08360-60232 Pulse (Self Bias SRD)
A10 #678 #502
1 0 08360-60206 ALC (83640B /L and
83650B /L/23L/50L)
0 0 08360-60222 ALC (83620B /22B/24B,
83623B /L, and 83630B /L)
A11 None #503
0 08360-60011 FM Driver
A12 #672 #504
1 0 08360-60212 Multiplier/Filter Driver
A13 None #505
3 08360-60213 YO Driver (Quick Step)
4 08360-60207 YO Driver (83621B/31B/51B)
1a-16 Instrument Level Troubleshooting Agilent 8360
