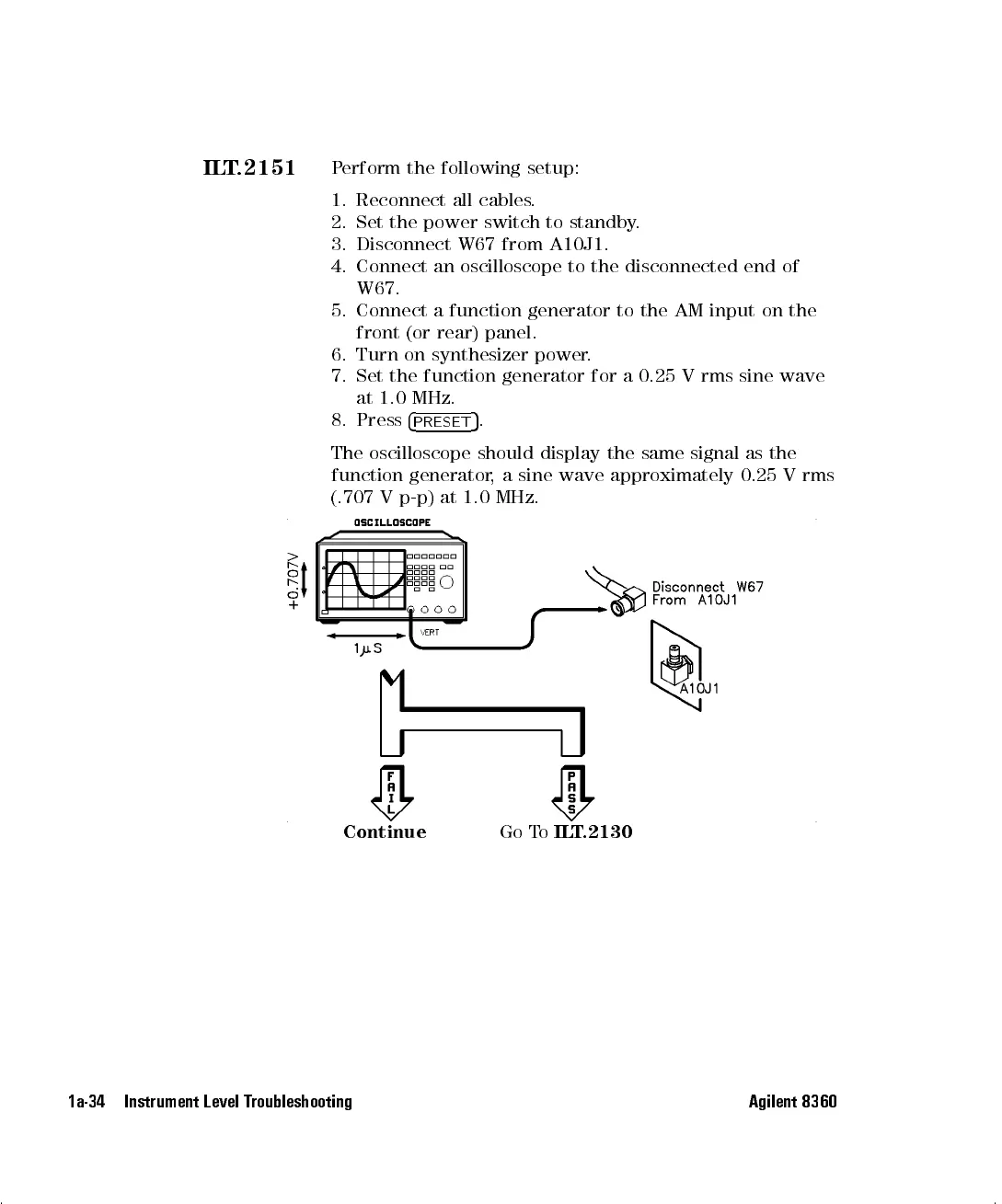

ILT.2151
Perform the following setup:
1. Reconnect all cables.
2. Set the power switch to standby.
3. Disconnect W67 from A10J1.
4. Connect an oscilloscope to the disconnected end of
W67.
5. Connect a function generator to the AM input on the
front (or rear) panel.
6. Turn on synthesizer power.
7. Set the function generator for a 0.25 V rms sine wave
at 1.0 MHz.
8. Press
4
PRESET
5
.
The oscilloscope should display the same signal as the
function generator, a sine wave approximately 0.25 V rms
(.707 V p-p) at 1.0 MHz.
Continue
Go To
ILT.2130
1a-34 Instrument Level Troubleshooting Agilent 8360
