EPM Series Power Meter (E4418B) Modification
Appendix A58

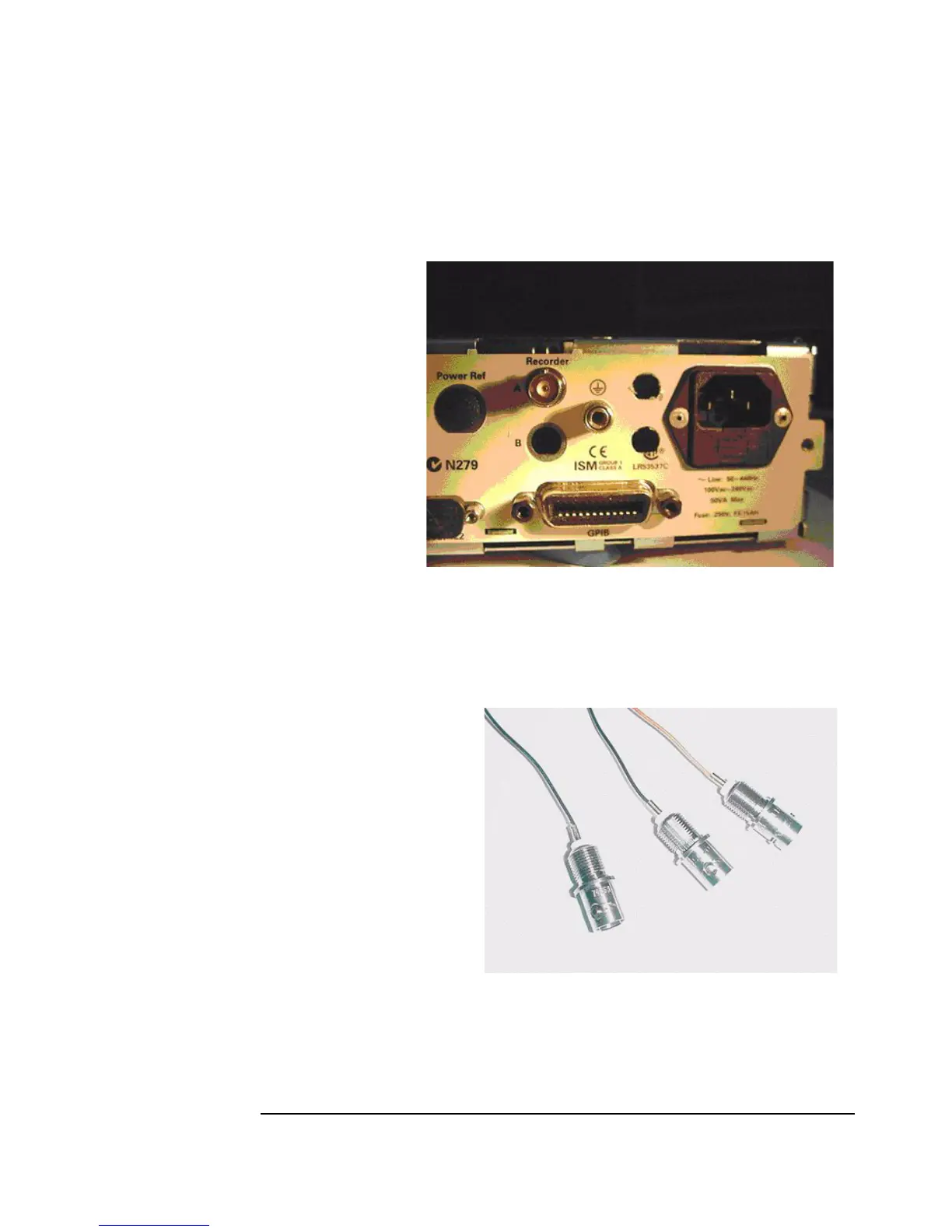

Step 6. Figure A-6 shows a different view of the holes in the rear panel.
Figure A-6
Step 7. Using the three lengths of AWG 20 wire, strip away 2cm from each end of the wires.
Solder an end of each wire onto the screw-fit BNC female connectors, as shown in
Figure A-7.
Figure A-7
