Agilent Technologies 8563EC User Manual

Chapter 7 467
Language Reference
FB Stop Frequency
Parameters
number real from 0 to 2.9E+9 (8560E/EC)
0 to 6.5E+9 (Agilent 8561E/EC)
0 to 13.2E+9 (Agilent 8562E/EC)
0 to 26.5E+9 (Agilent 8563E/EC)
0 to 40E+9 (Agilent 8564E/EC)
0 to 50E+9 (Agilent 8565E/EC)
from 18E+9 to 325E+9 in external mixer mode.
UP or DN increments in 10 percent of span.
Preset State
• 2.9 GHz (8560E/EC)
• 6.5 GHz (Agilent 8561E/EC)
• 13.2 GHz (Agilent 8562E/EC)
• 26.5 GHz (Agilent 8563E/EC)
• 40 GHz (Agilent 8564E/EC)
• 50 GHz (Agilent 8565E/EC)
Query Response

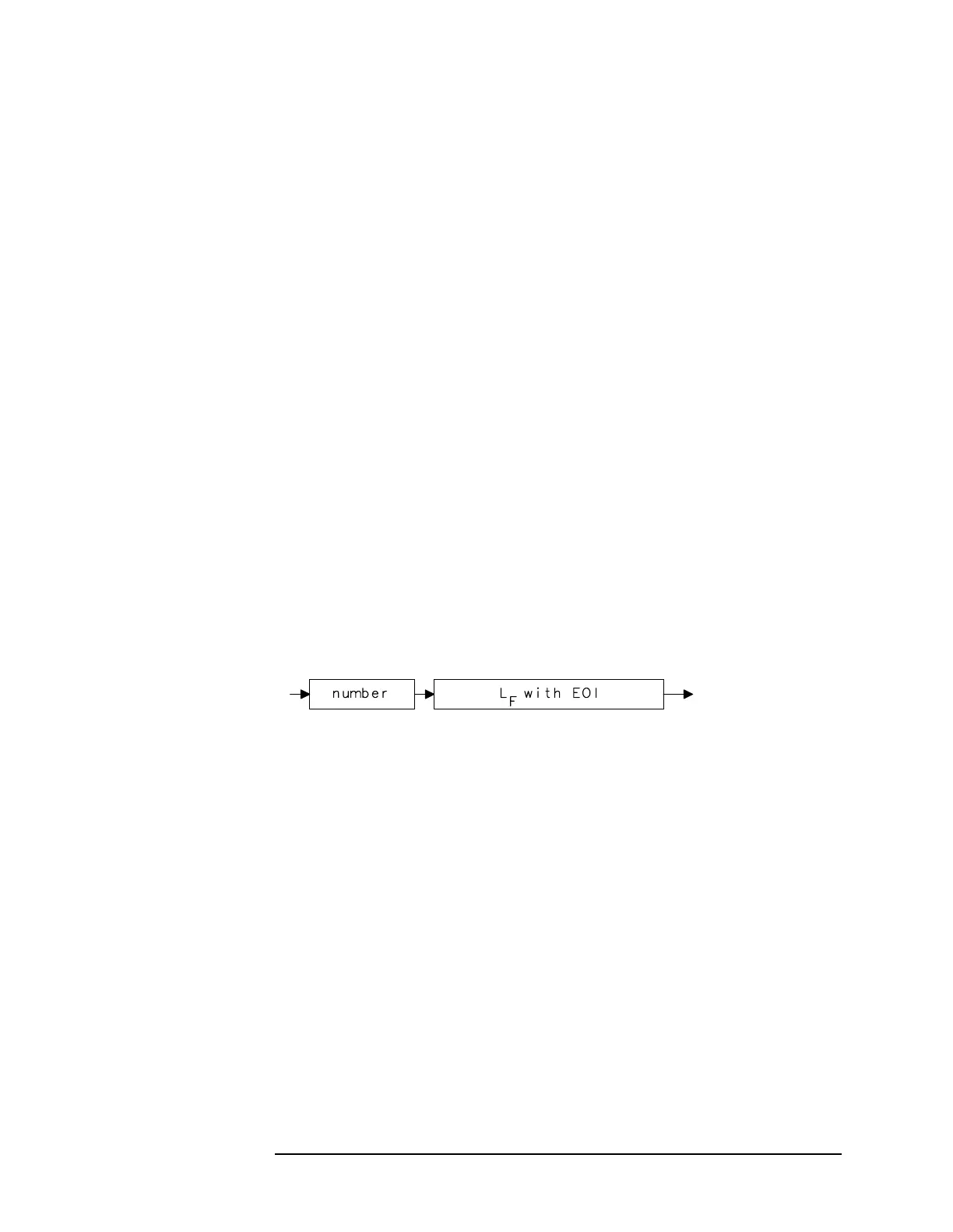

Figure 7-110 FB Query Response
Example
10 OUTPUT 718;"FA 88MHZ;FB 108MHZ;"
20 OUTPUT 718;"FB?;"
30 ENTER 718;Fb
40 PRINT Fb
50 END
