292
Chapter
5
Programming
Setup Procedure f
or Remote Operation

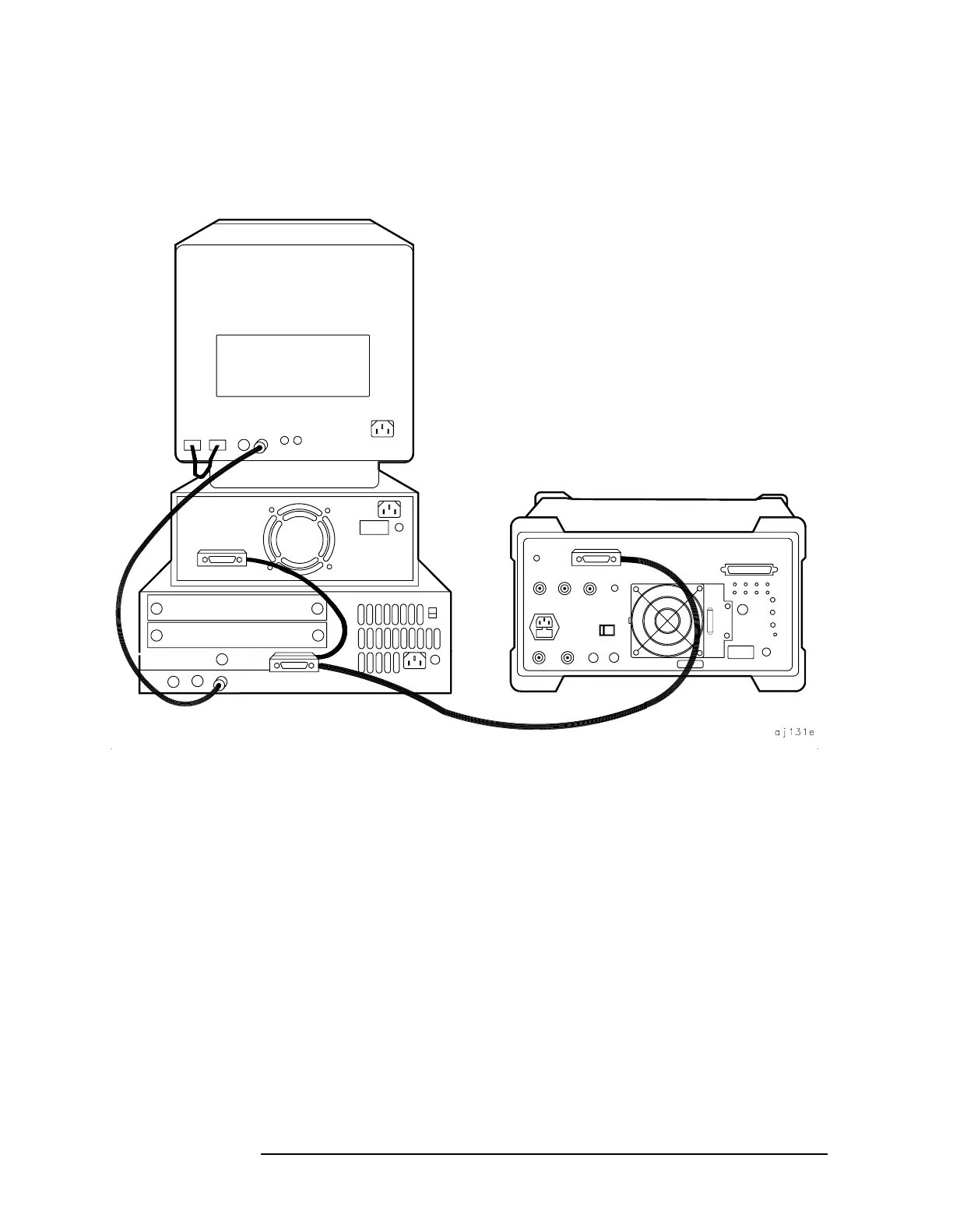

Figure 5-1
8560E connected to an HP 9000 Series 300 computer
.
