98 Chapter3
Manual Adjustment Procedures

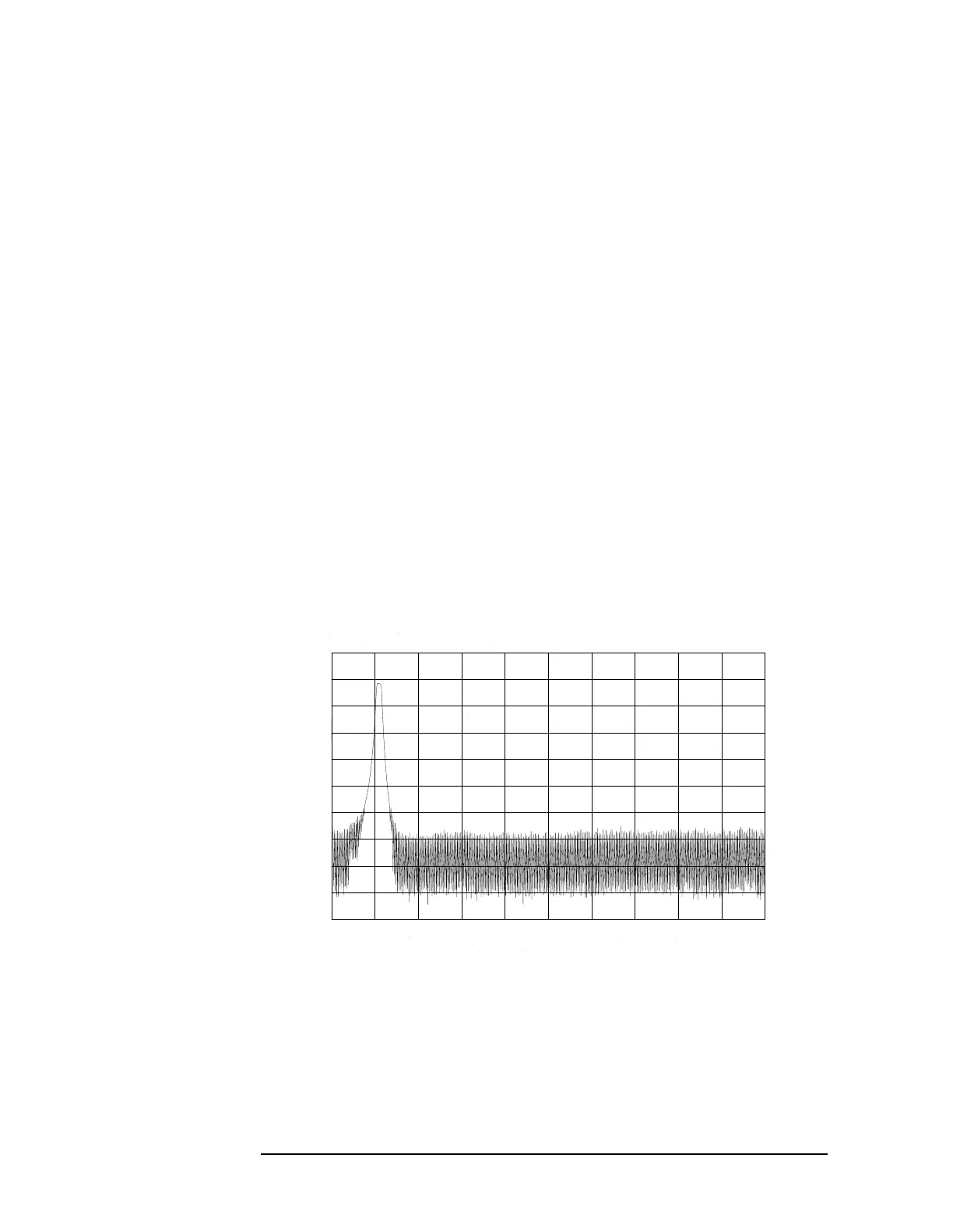

Introduction
Table 3-3 Factory Selected Components
Reference
Designator
Adjustment
Number
Basis of Selection
A5C204 3 Selected to optimize center frequency of LC tank that loads the crystal.
A5C216 3 Selected to optimize center frequency of LC tank that loads the crystal.
A5C326 3 Selected to optimize LC pole center frequency.
A5C327 3 Selected to optimize LC pole center frequency.
A5C505 3 Selected to optimize center frequency of LC tank that loads the crystal.
A5C516 3 Selected to optimize center frequency of LC tank that loads the crystal.
A5C717 3 Selected to optimize LC pole center frequency.
A5C718 3 Selected to optimize LC pole center frequency.
