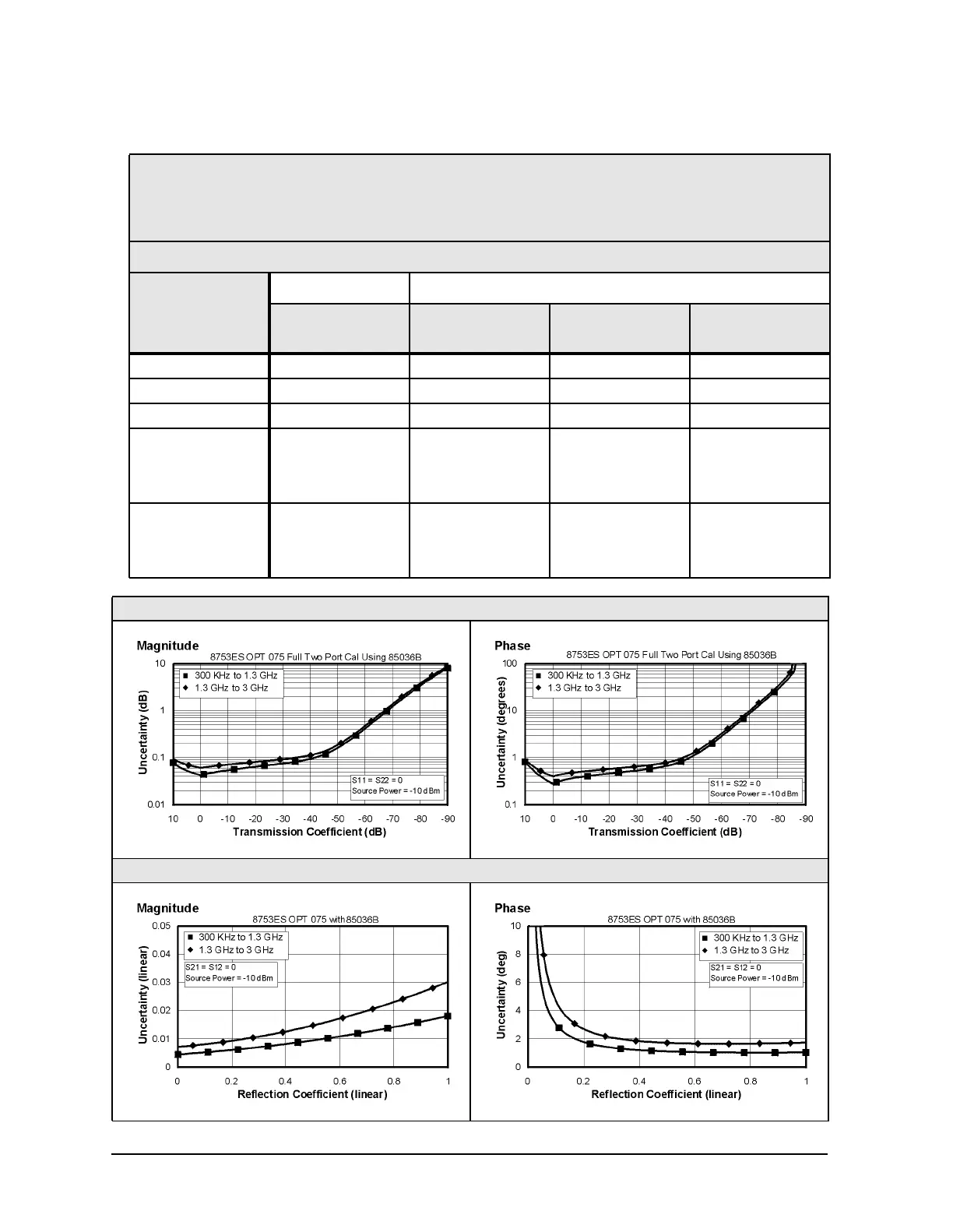

8753ES Specifications and Characteristics
Corrected System Performance
Table 1-6 Type-N (75Ω) Device Connector Type
Network Analyzer: 8753ES, Option 075
Calibration Kit: 85036B/E (Type-N, 75Ω)
Cables: 11857B
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 25 ± 5°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description
Typical Specification
30 to 300 kHz 300 kHz to
1.3 GHz
1.3 to 3 GHz 3 to 6 GHz
(Opt 006 only)
Directivity 48 dB 48 dB 43 dB N/A
Source Match 47 dB 41 dB 35 dB N/A
Load Match 48 dB 48 dB 43 dB N/A
Refl. Tracking
Magnitude (db) ±(0.004 + .02/°C) ±(0.010 + .01/°C) ±(0.019 + .02/°C) N/A
Phase (deg) ±(0.026 + .05/°C) ±(0.066 + .05/°C) ±(0.125 + .05/°C) N/A
Trans. Tracking
Magnitude (db) ±(0.022 + .02/°C) ±(0.016 + .01/°C) ±(0.033 + .02/°C) N/A
Phase (deg) ±(0.143 + .05/°C) ±(0.106 + .05/°C) ±(0.218 + .05/°C) N/A
Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
