1-9
8753ES Specifications and Characteristics
Corrected System Performance

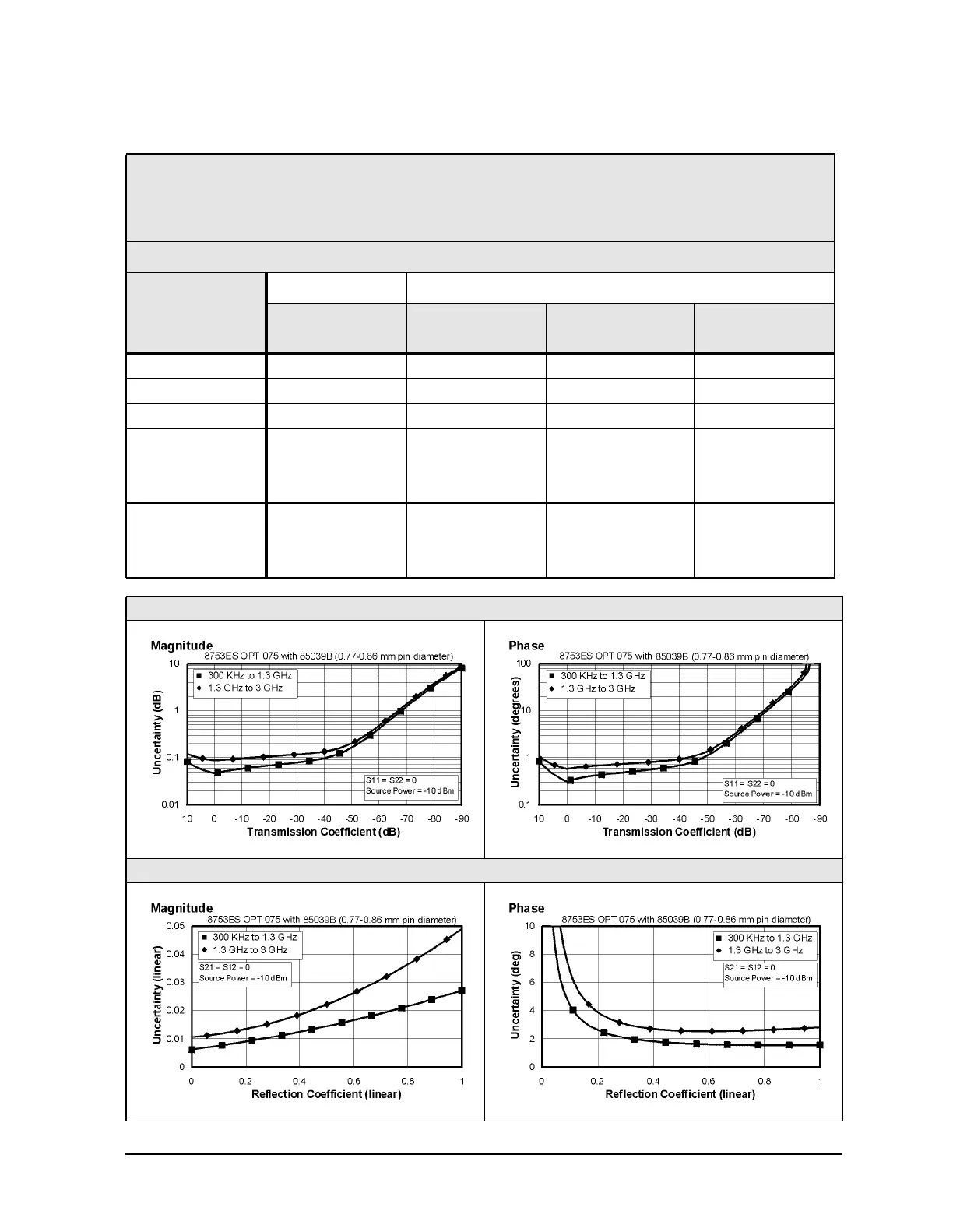

Table 1-7 Type-F (75 Ω) Device Connector Type
Network Analyzer: 8753ES, Option 075
Calibration Kit: 85039B (Type-F, 75 Ω)
Cables: 11857B
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 25 ± 5 °C with < 1 °C deviation from cal temp, Isol cal with avg = 8
Description
Typical Specification
30 to 300 kHz 300 kHz to
1.3 GHz
1.3 to 3 GHz 3 to 6 GHz
(Opt 006 only)
Directivity 45 dB 45 dB 40 dB N/A
Source Match 40 dB 40 dB 30 dB N/A
Load Match 45 dB 45 dB 40 dB N/A
Refl. Tracking
Magnitude (db) ±(0.043 + .02/°C) ±(0.060 + .01/°C) ±(0.0240 +.02/°C) N/A
Phase (deg) ±(0.396 + .05/°C) ±(0.396 + .05/°C) ±(0.158 + .05/°C) N/A
Trans. Tracking
Magnitude (db) ±(0.033 + .02/°C) ±(0.019 + .01/°C) ±(0.057 +.02/°C) N/A
Phase (deg) ±(0.283 + .05/°C) ±(0.125 + .05/°C) ±(0.376 + .05/°C) N/A
Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
