1-24 Chapter1
Installing Your Analyzer
STEP 5. Verify the Analyzer Operation
To Test the Transmission Mode

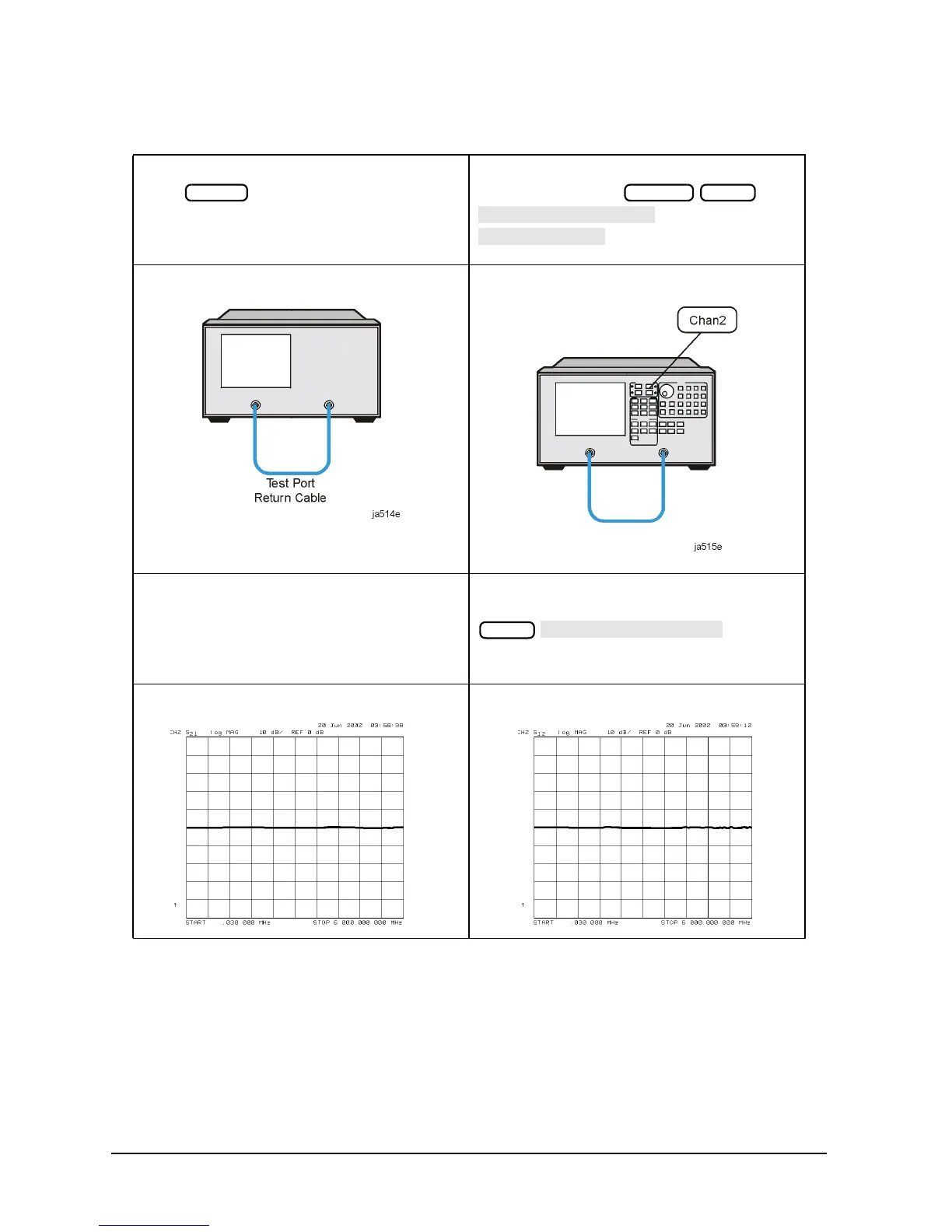

1. Connect the equipment as shown and
press . NOTE: The test port return
cable should have low-loss characteristics to
avoid a degradation in frequency response
at higher frequencies.
2. To check the forward transmission mode
for channel 2, press
or
.
3. Look at the measurement trace displayed
on the analyzer. It should be similar to the
trace below.
4. ES models only: To check the reverse
transmission mode for channel 2, press
. The
measurement trace should be similar to the
trace below.
Preset Chan 2 Meas
