Replacing W42, W43, or W44
Remove Old Semi-Rigid Cables
For ESG-AP and ESG-DP Series Signal Generators, refer to Figure 3.
For ESG-AP and ESG-DP Series Signal Generator with Option UNB, refer to or Figure 4.
1. Refer to Figure 5. Remove the snap ring (1) from the cable retainer (2) of the cable you want to remove. The cable is
now disconnected from the instrument chassis (3).
2. Disconnect the other end of the cable (4) and remove the cable.

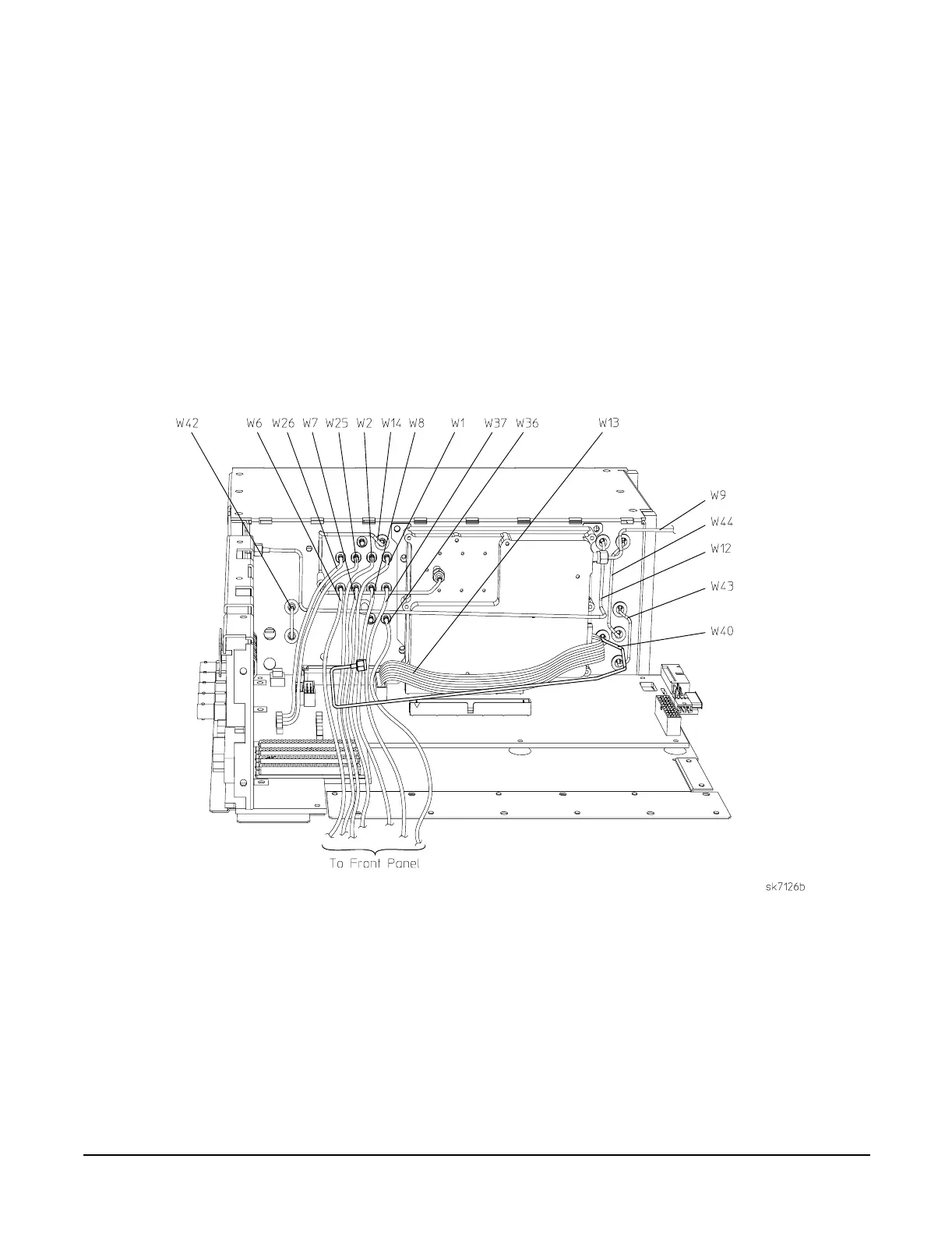

Figure 3 W42, W43, and W44 Semi-Rigid Cable Locations for ESG-AP and ESG-DP Series Signal
Generators
To Next Page
