Agilent Technologies E4423B Installation Notes

9
Removing A9, A11, A23, and A24 Daughter Card Cage Boards
Refer to Figure 2.
Use this procedure to remove any one of the following assemblies:
• A9 Ouput Board
• A11 Reference Board
•A23 Sampler Board
• A24 Frac-N Board
1. Remove the right-side cover by removing the four screws that attach it to the instrument chassis.
2. Simultaneously lift the left and right extractors on the board that you want to remove.
3. Remove the board from the card cage slot.

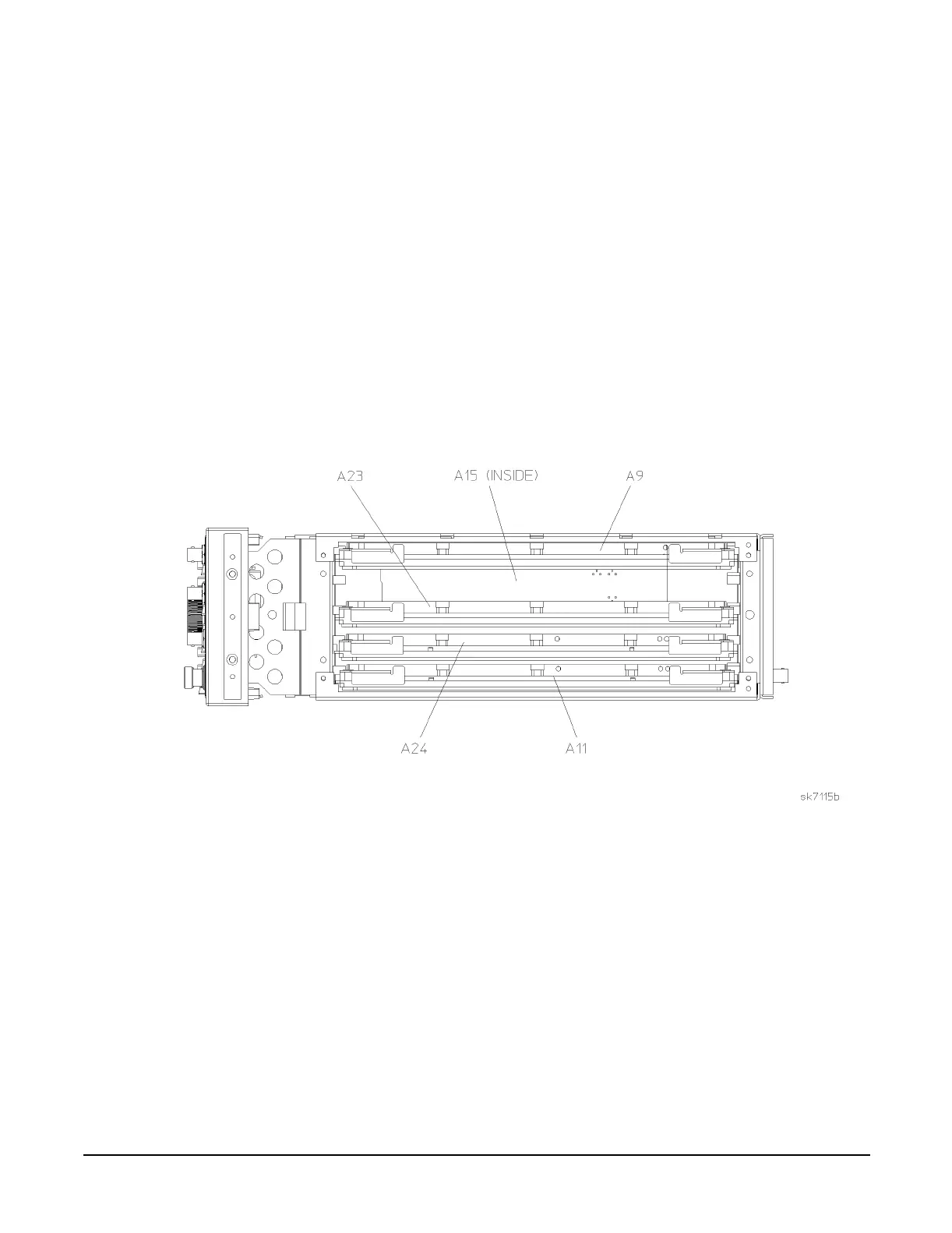

Figure 2 A9, A11, A23, and A24 Daughterboard Card Cage Boards
