Chapter 11 361
Assembly Replacement Procedures
A5 Power Supply
A5 Power Supply
CAUTION Use ESD precautions when performing this replacement procedure.
Removal
1. Remove the instrument top brace. Refer to the “Top Brace” removal
procedure.
2. Refer to Figure 11-37. Using the T-10 driver, remove the 5 screws
(1) securing the A5 power supply assembly (2) to the deck and the
rear frame.
3. Carefully pull up on the power supply assembly to disengage from
the motherboard connector.

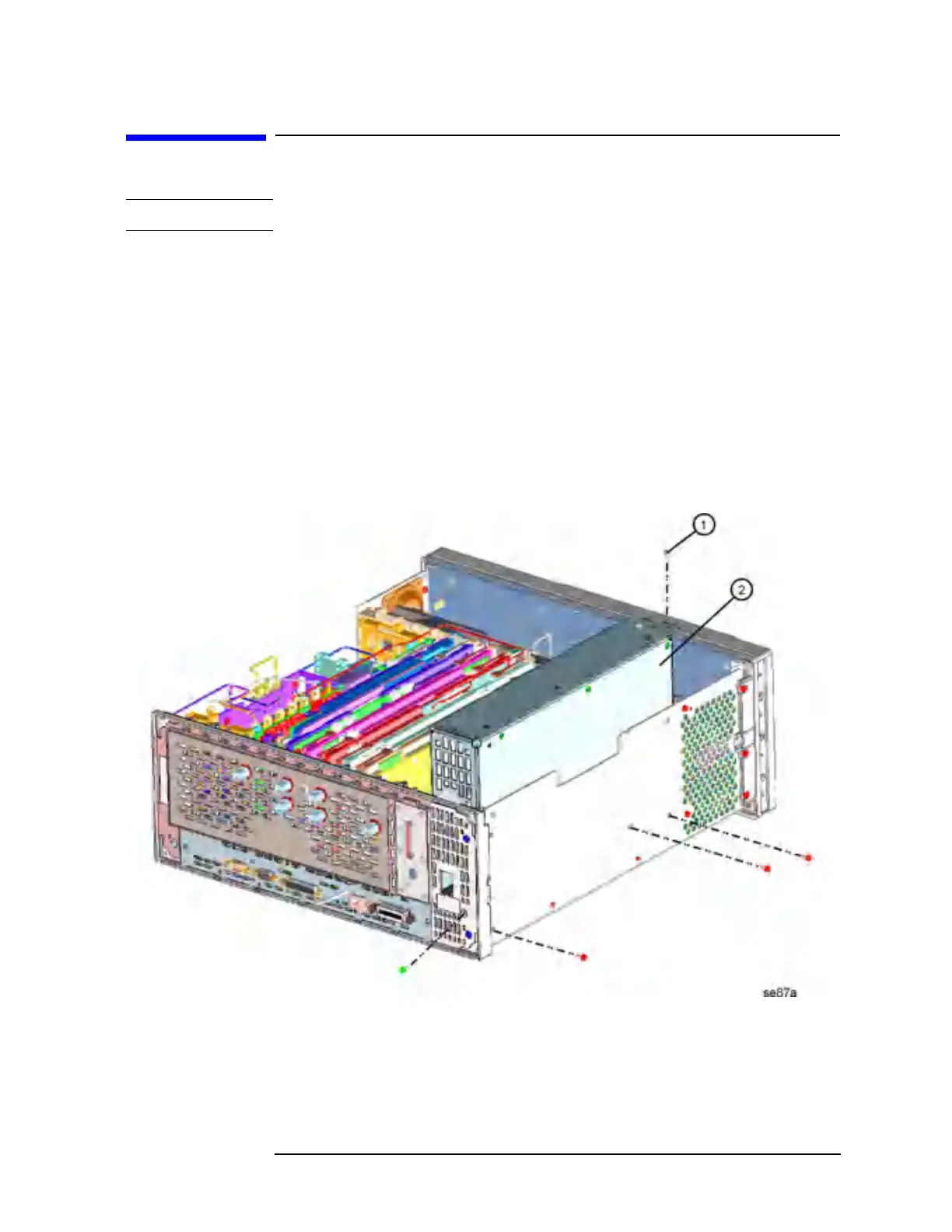

Figure 11-37 Power Supply Removal
