Front Frame Subassemblies

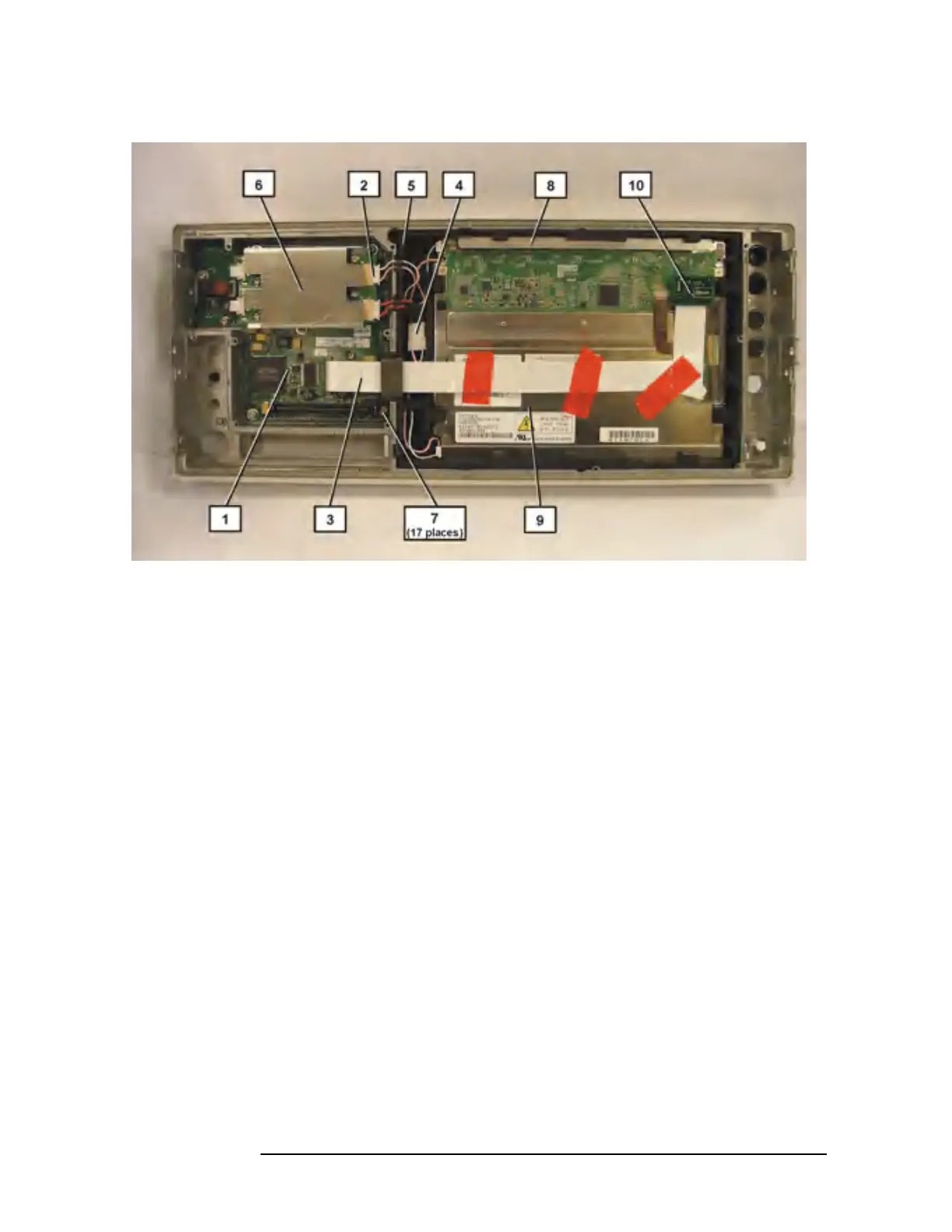

Figure 11-56 Front Frame Subassemblies
The front frame assembly consists of the following sub-assemblies:
• Front Panel Interface Board (1)
•Inverter Boards (2)
• W5 Flat Flex cable (3)
•Backlight extension cable (4)
• Display Mount (5)
•Inverter Shield (6)
•Pressure Plate(8)
• Flat Panel Display (9)
• Display Converter Board (10)
