Chapter 3 73
Making Measurements
RF Power Measurement
Making Measurements
RF Power Measurement Example

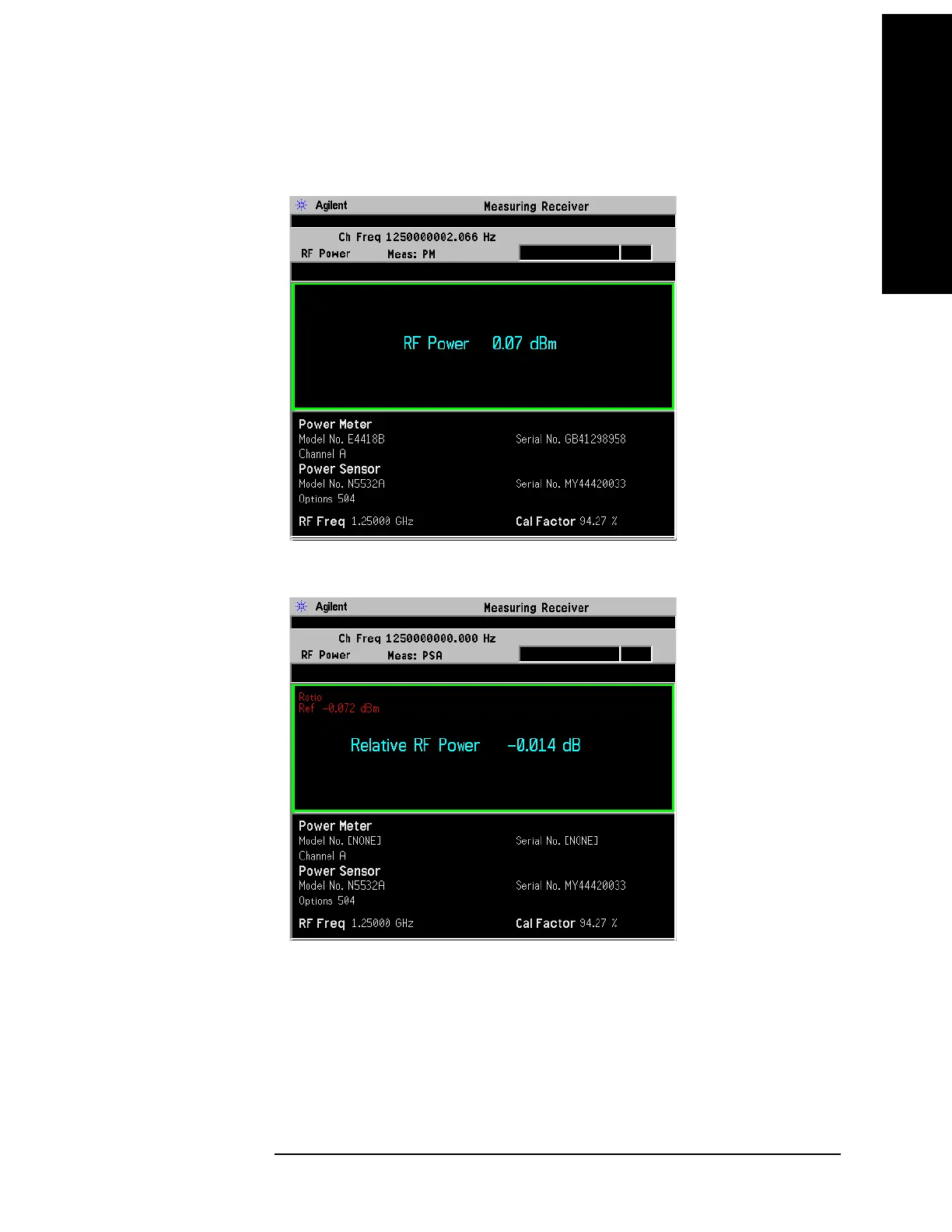

Figure 3-4 RF Power Measurement Result (Default)
Figure 3-5 RF Power Measurement Result (Ratio Display Mode)
Signal Under Test:
RF Frequency: 1.25 GHz; Amplitude: 0.0 dBm; Modulation: Off;
In this example, the measured RF Power is 0.07 dBm and the measured Relative
RF Power is 0.014 dB.
