AM Depth Measurement
Making Measurements
AM Depth Measurement Example

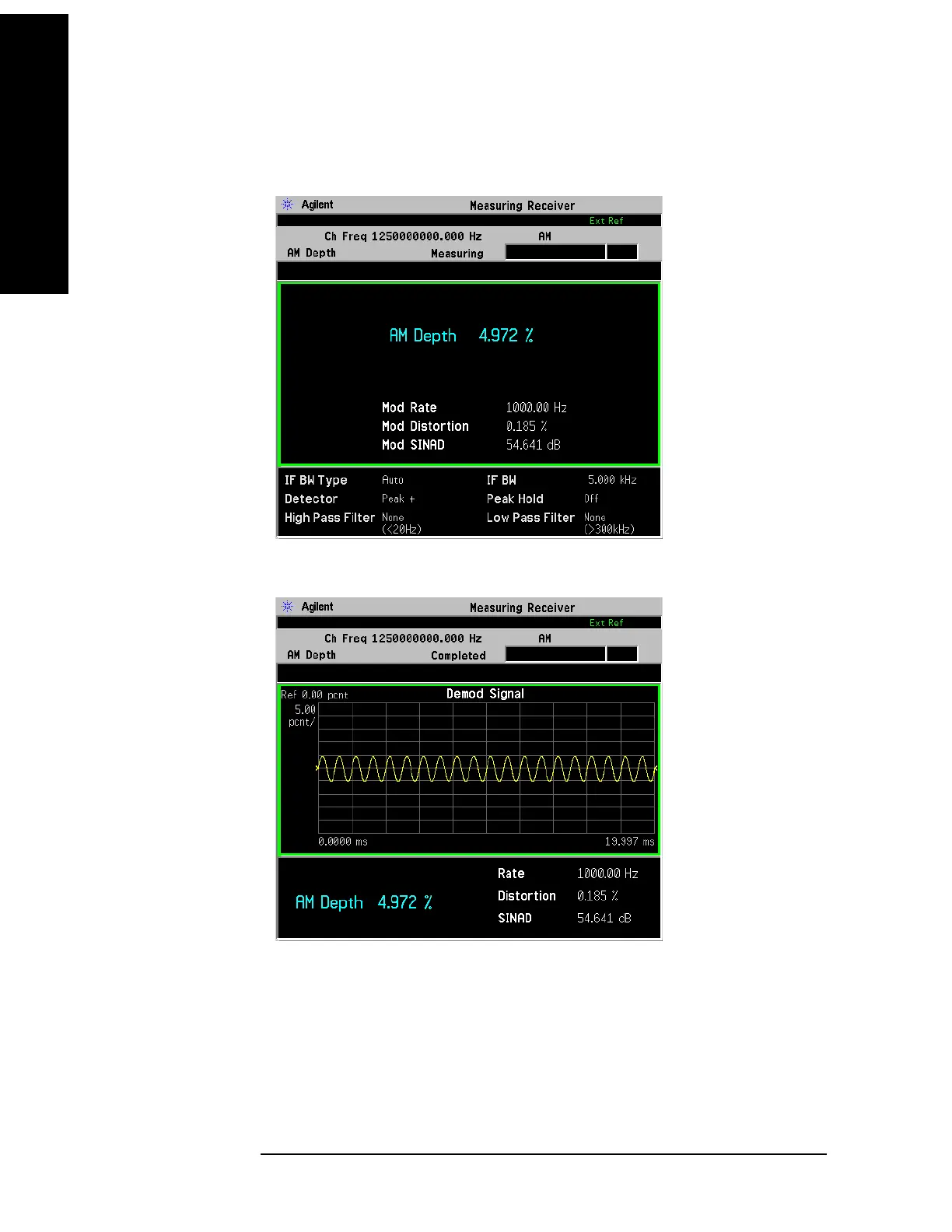

Figure 3-8 AM Depth Measurement Result (Default)
Figure 3-9 AM Depth Measurement Result (Waveform View)
Signal Under Test:
RF Frequency: 1.25 GHz; Amplitude: 0.0 dBm;
AM Depth: 5%; AM Rate: 1 kHz; Modulation: On.
In this example, the measured AM Depth is 4.972%.
