1. For transmission measurement with the gain-phase test port of the E5061B-3L5. Required for milliohm impedance measurements in the low
frequency range.
Test accessories (for 50 Ω system)
Model No. Description
Test Port Cable
N6314A 50 Ω type-N (m) to type-N (m) cable, DC to 12.4 GHz, 61 cm (24 in)
N6315A 50 Ω type-N (m) to type-N (f) cable, DC to 12.4 GHz, 61 cm (24 in)
11500E 3.5 mm (m) to 3.5 mm (m) cable, 61 cm (24 in)
11500F 3.5 mm (m) to 3.5 mm (m) cable, 150 cm (24 in)
11857D 50 Ω 7 mm to 7 mm cable, 300 kHz to 6 GHz, 61 cm (24 in)
8120-1838 50 Ω BNC (m) to BNC (m) cable, 30 cm (12 in)
8120-1839 50 Ω BNC (m) to BNC (m) cable, 61 cm (24 in)
Adapter
1250-0780 50 Ω type-N (m) to 50 Ω BNC (f) adapter
1250-1200 50 Ω BNC (f) to SMA (m) adapter
1250-2015 50 Ω BNC (m) to SMA (f) adapter
Accessory Kit
11853A 50 Ω type-N accessory kit. Includes;
- Type-N (f) to type-N (f) adapter (2 qty.)
- Type-N (m) to type-N (m) adapter (2 qty.)
- Type-N (f) short
- Type-N (m) short
11854A 50 Ω BNC accessory kit. Includes;
- BNC (m) to Type-N (m) adapter (2 qty.)
- BNC (f) to Type-N (f) adapter (2 qty.)
- BNC (f) to Type-N (m) adapter (2 qty.)
- BNC (m) to Type-N (f) adapter (2 qty.)
- BNC (m) short
Adapter Kit
11878A 50 Ω type-N to 3.5 mm adapter kit. Includes;
- 3.5 mm (m) to type-N (m) adapter
- 3.5 mm (f) to type-N (f) adapter
- 3.5 mm (f) to type-N (m) adapter
- 3.5 mm (m) to type-N (f) adapter
Power Splitter
1
11667L BNC (f) connectors, DC to 2 GHz
DC Block
N9398C 3.5 mm (m) and 3.5 mm (f) connectors, 50 kHz to 26.5 GHz
N9399C 3.5 mm (m) and 3.5 mm (f) connectors, 700 kHz to 26.5 GHz

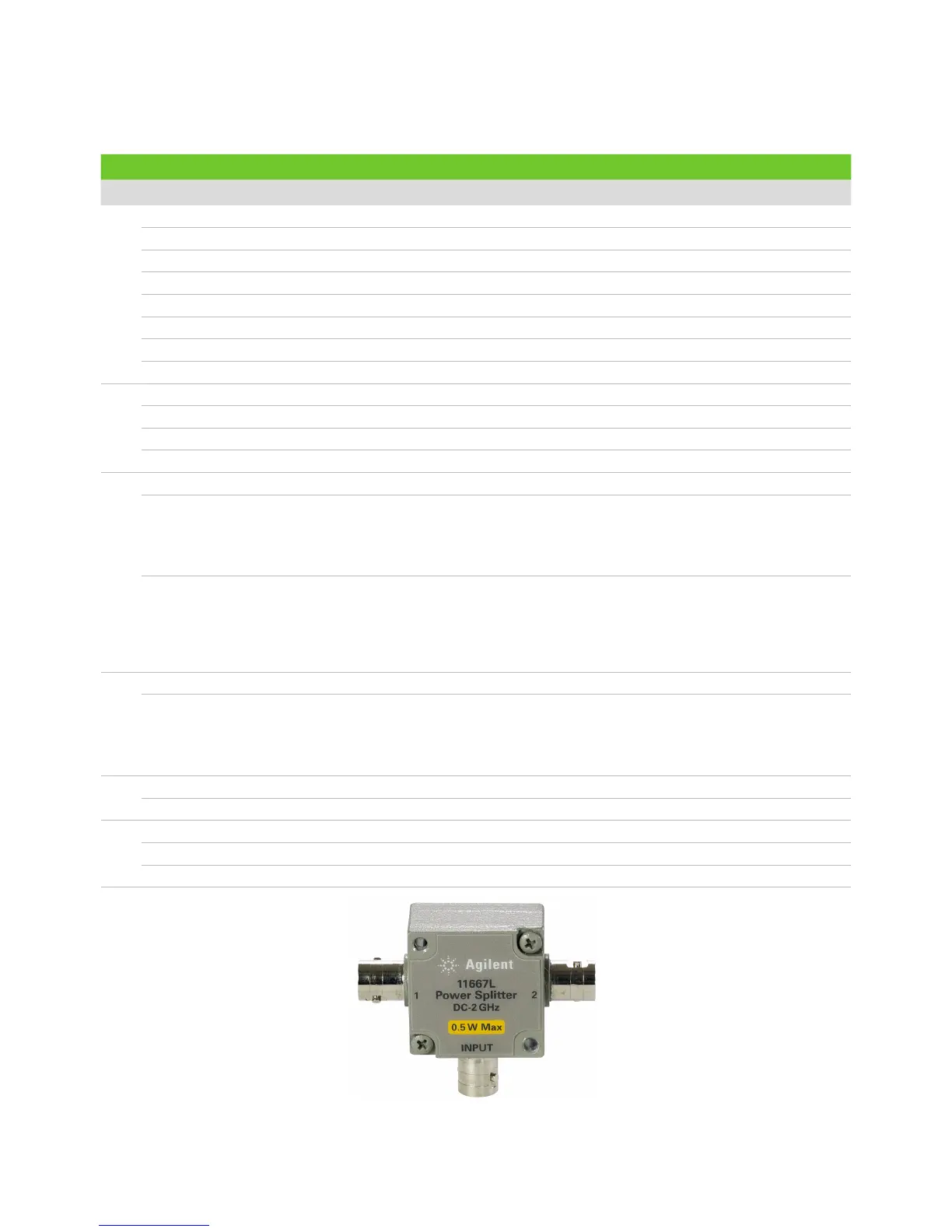

11667L
