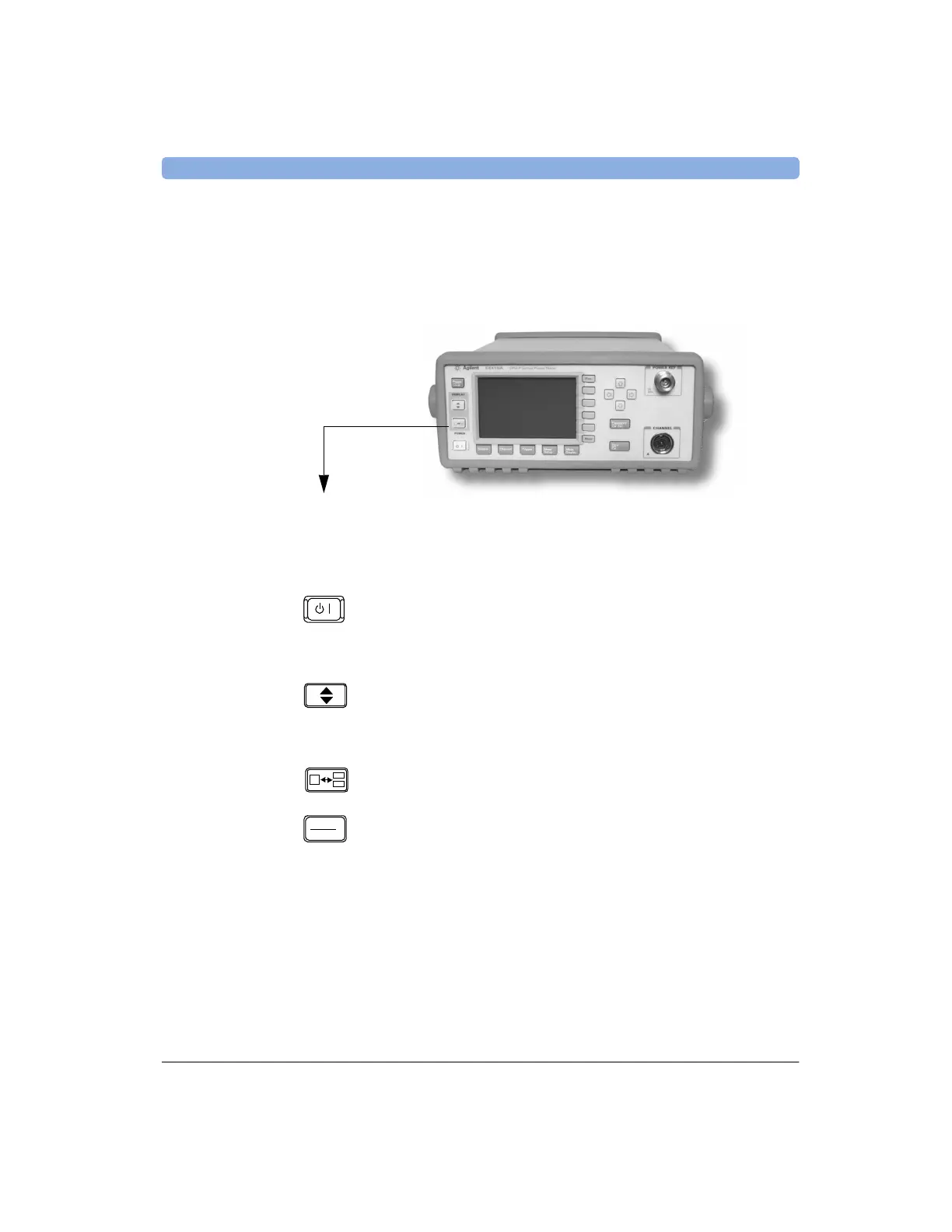

Front Panel Keys and Connections
This section briefly describes the functions of the front panel keys and
connectors. The user’s guide shows you how to use them in more detail.
These keys are located to the left of the display.
Key Function
Press this key to switch the meter between on and standby.
When power is supplied, the orange LED above the key is
lit. Press the key to switch the meter on. The green LED
lights.
Press this key to select the measurement window or the
individual measurement display lines. Any measurement
setup you create is implemented in the selected
measurement.
Press this key to choose windowed, expanded, or
full-screen display.
Press this key to preset the power-meter when it is
operating in local mode (front panel operation). A pop-up-
window is displayed asking you to confirm the command. It
also enables you to take control of the meter from the front
panel when operating via the remote interfaces (when Local
Lock Out is not enabled).
