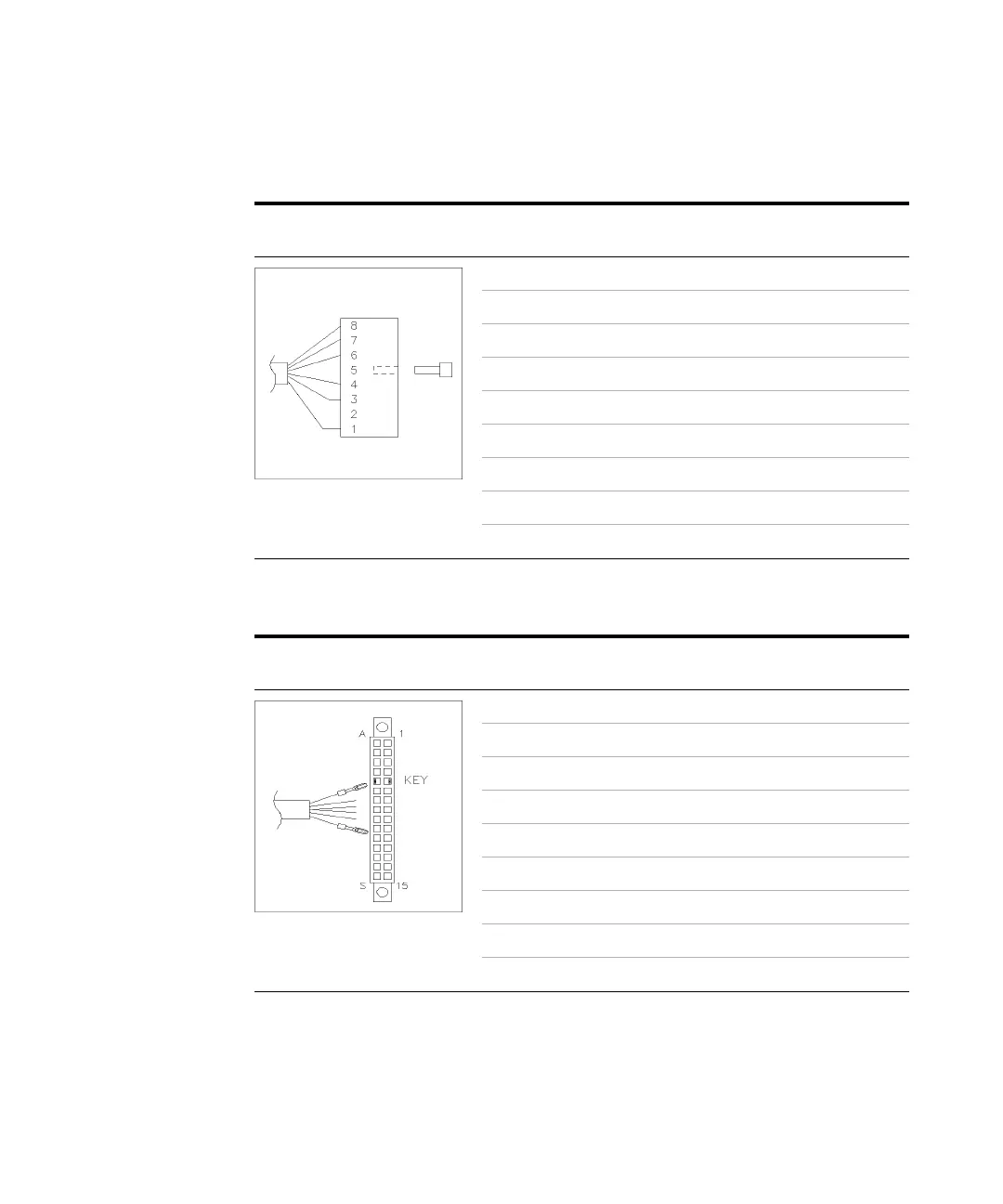

Identifying Cables
9
Remote Cables
Agilent Modules to HP 1090 LC or Signal Distribution Module
Agilent Modules to General Purpose
Connector01046-60202 Pin HP 1090 Pin Agilent
module
Signal Name Active
(TTL)
1 1 - White Digital ground
NC 2 - Brown Prepare run Low
4 3 - Gray Start Low
7 4 - Blue Shut down Low
8 5 - Pink Not connected
NC 6 - Yellow Power on High
3 7 - Red Ready High
6 8 - Green Stop Low
NC 9 - Black Start request Low
Connector01046-60201 Pin Universal Pin Agilent
module
Signal Name Active
(TTL)
1 - White Digital ground
2 - Brown Prepare run Low
3 - Gray Start Low
4 - Blue Shut down Low
5 - Pink Not connected
6 - Yellow Power on High
7 - Red Ready High
8 - Green Stop Low
9 - Black Start request Low
