Agilent InfinityLab LC Series Multicolumn Thermostats User Manual 50
3 Using the Module
Install Heat Exchanger
G7116-60041 Quick Connect Heat Exchanger Bio-inert
5067-4780 Bio Capillary 0.17 mm x 300 mm, 1.6 mm OD socket
(from column to detector)
0100-1516 Finger-tight fitting PEEK, 2/pk
5067-4741 ZDV union (Bio-inert)
5067-5403 UHP fitting
G7116-68003 Column Holder Lamella, 2/pk
Bio-compatible option:
G7116-60071 Quick Connect Bio Heat Exchanger Standard Flow
G7116-60081 Quick Connect Bio Heat Exchanger High Flow
G7116-68003 Column Holder Lamella, 2/pk
5500-1596 Quick Turn Capillary MP35N 0.12 mm x 280 mm
5067-5966 InfinityLab Quick Turn Fitting
5500-1578 Quick Connect Capillary MP35N 0.12 mm x 105 mm
5067-5965 InfinityLab Quick Connect LC fitting

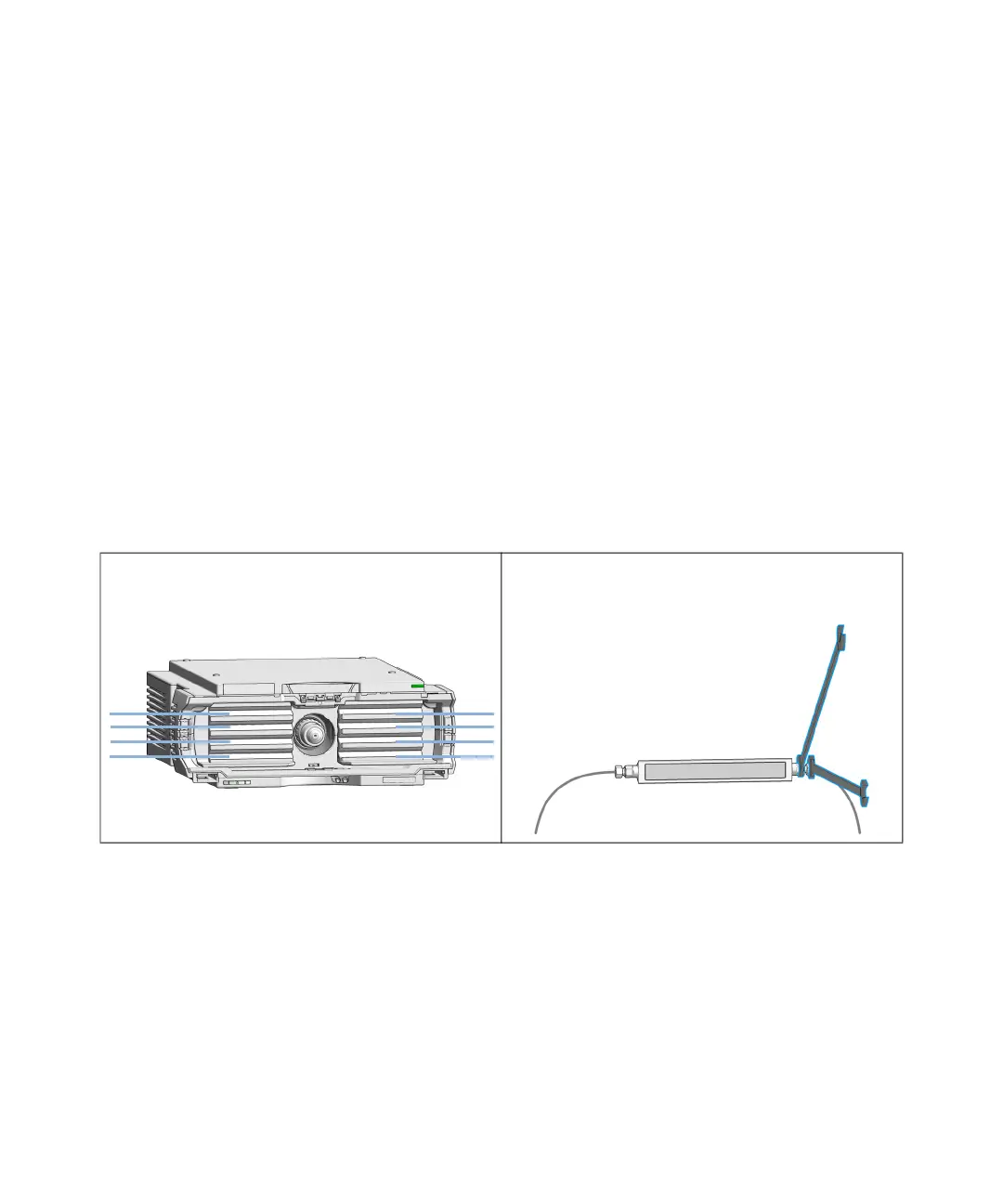

1 Possible positions for heat exchangers. If only one col-
umn is used, the preferred positions are 2, 3, 6, or 7.
2 Connect the sampler outlet capillary (or the capillary
from the column selection valve) to the inlet port of the
heat exchanger.
Parts required p/n Description
5
6
7
8
1
2
3
4
Max. 2.5 Nm
