Page 13 of 14 MSO8104A-05A

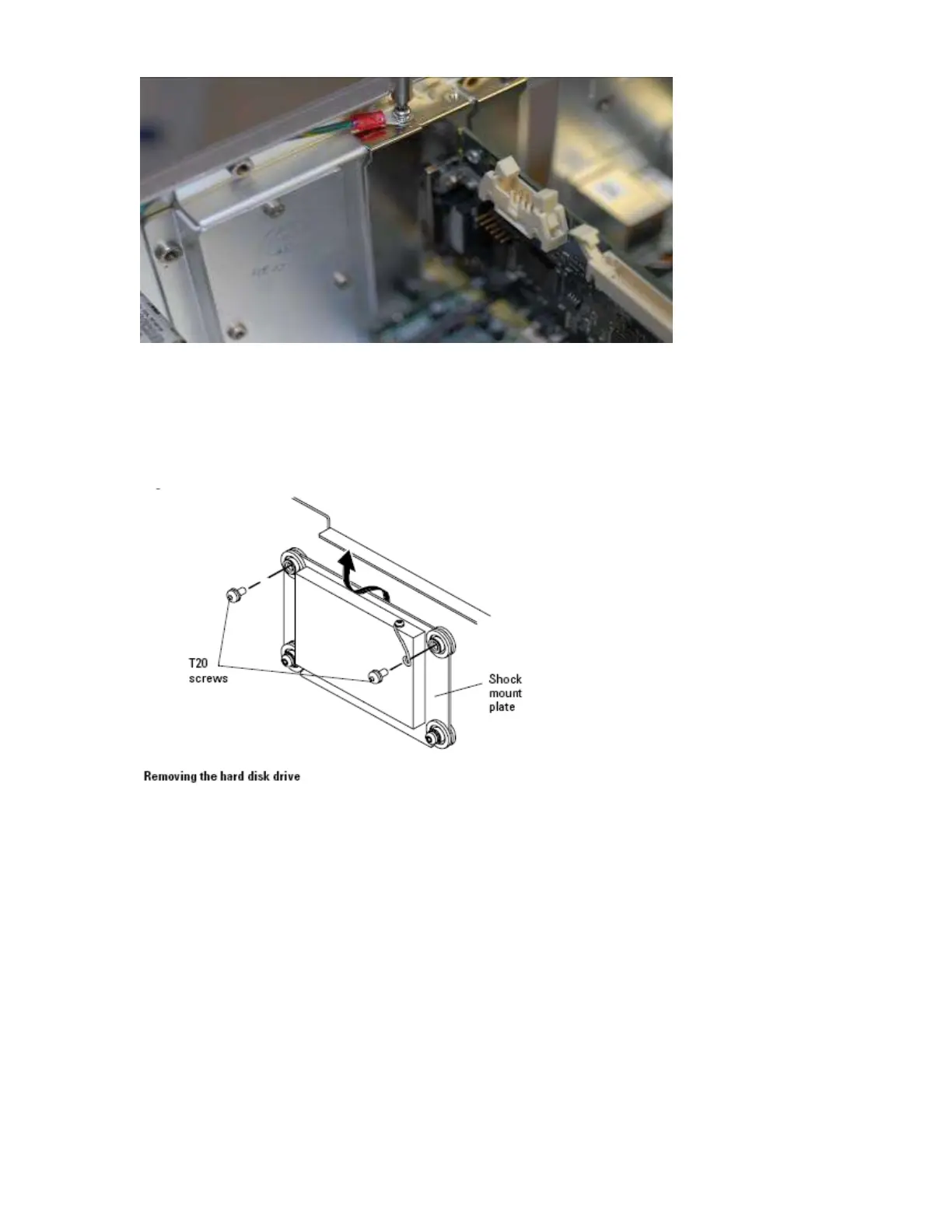

Figure 22
.
39 Tilt the disk drive assembly forward and push down to reinstall.
When re-assembling, torque the screws to 18 in-lb.
a Reattach the following cables:
• SATA Cable
• Hard Drive Power cable
40 Re-install CDROM
3 Reattach the following cables:
• SATA Cable
• CD-ROM Power cable
a Using a Torx T10 driver, install the three CD-ROM support bracket screws holding the CD-
ROM drive in place.
When re-assembling, torque the three Torx T10 screws to 5 in-lb.
b Using a T20 driver install the rear panel screw holding the CD-ROM drive in place.
When re-assembling, torque the Torx T20 screw to 18 in-lb.
c Move the CD-ROM drive back towards the rear frame.
