Page 12 of 14 MSO8104A-05A

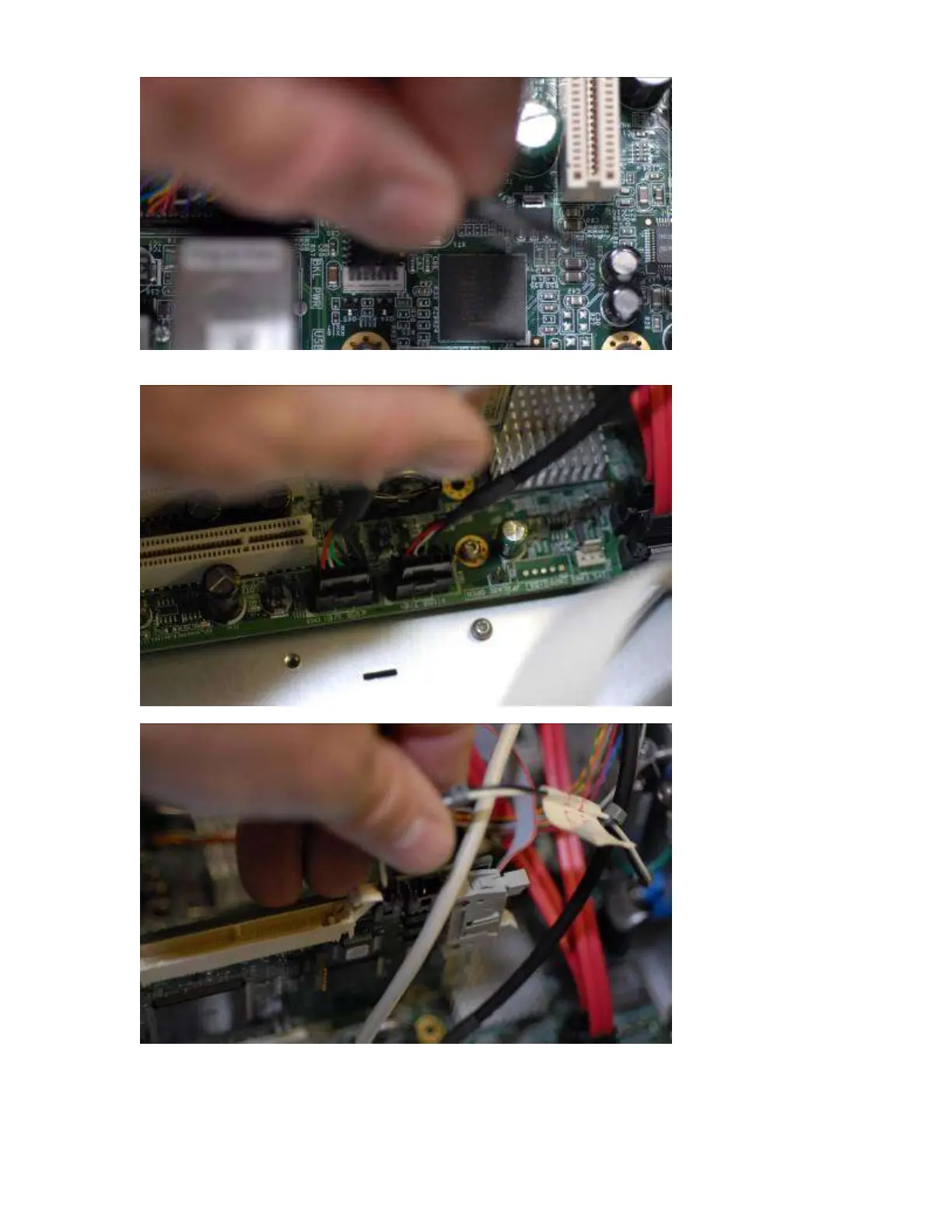

Figure 19
Figure 20
Figure 21
37 Re-connect all other cables to the appropriate sources.
38 Install all ISA slot filler plates (See figure 22)
