Page 11 of 14 MSO8104A-05A

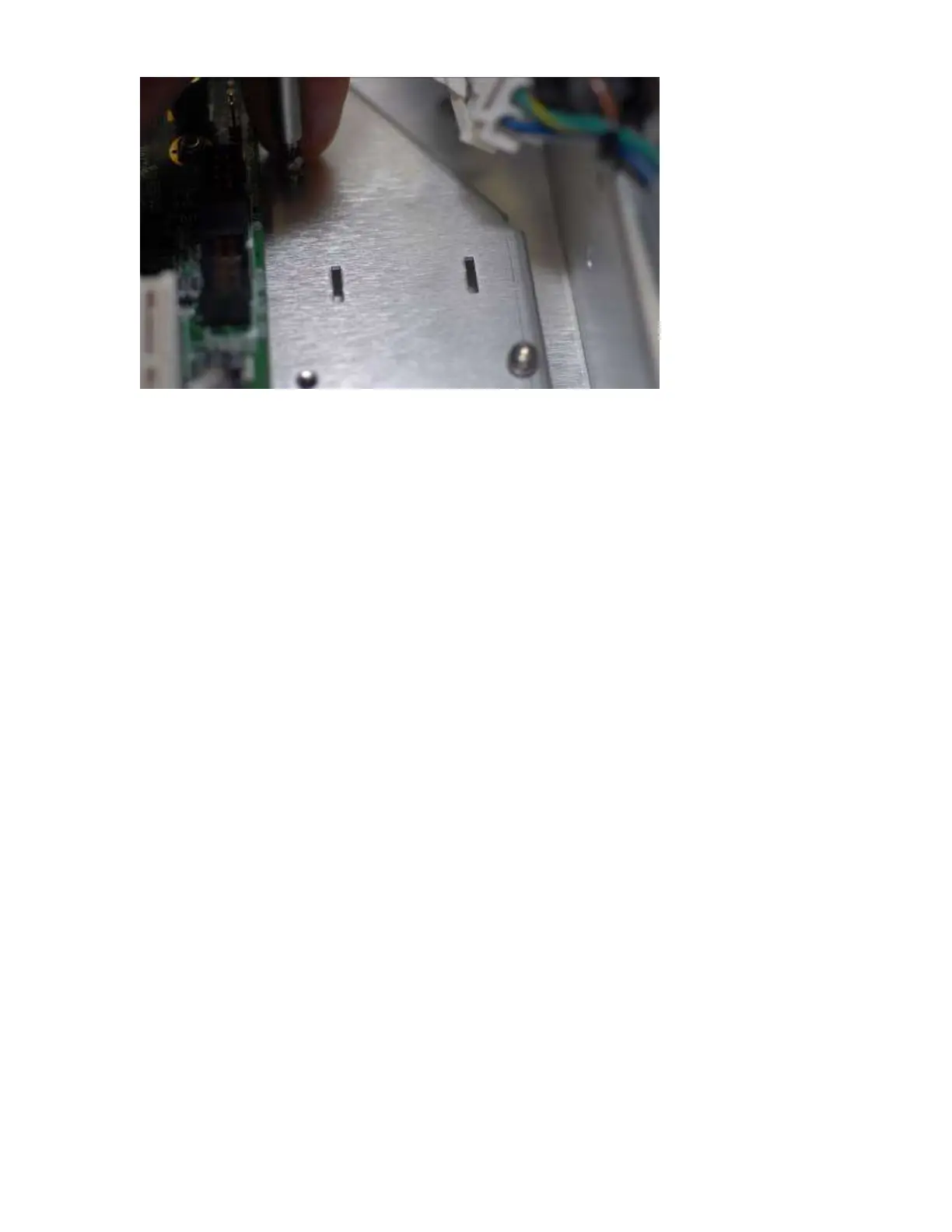

Figure 18
33 Re-install eight short T20 screws in rear panel attaching deck to the frame chassis. Torgue
T20 to 8 in-lb.
34 Re-install three short T10 screws and filler plate to the rear panel. Torgue T10 to 5 in-lb.
35 Re-install the Acquisition Interface PCI card into the slot marked GPIB on the rear panel.
36 Re-connect new cables
a Connect new display cable to motherboard. (See Figure 19)
b Connect the two USB cables (See Figure 20)
c. Connect motherboard Switch cable to PCI card (See Figure 21)
