Page 10 of 14 MSO8104A-05A

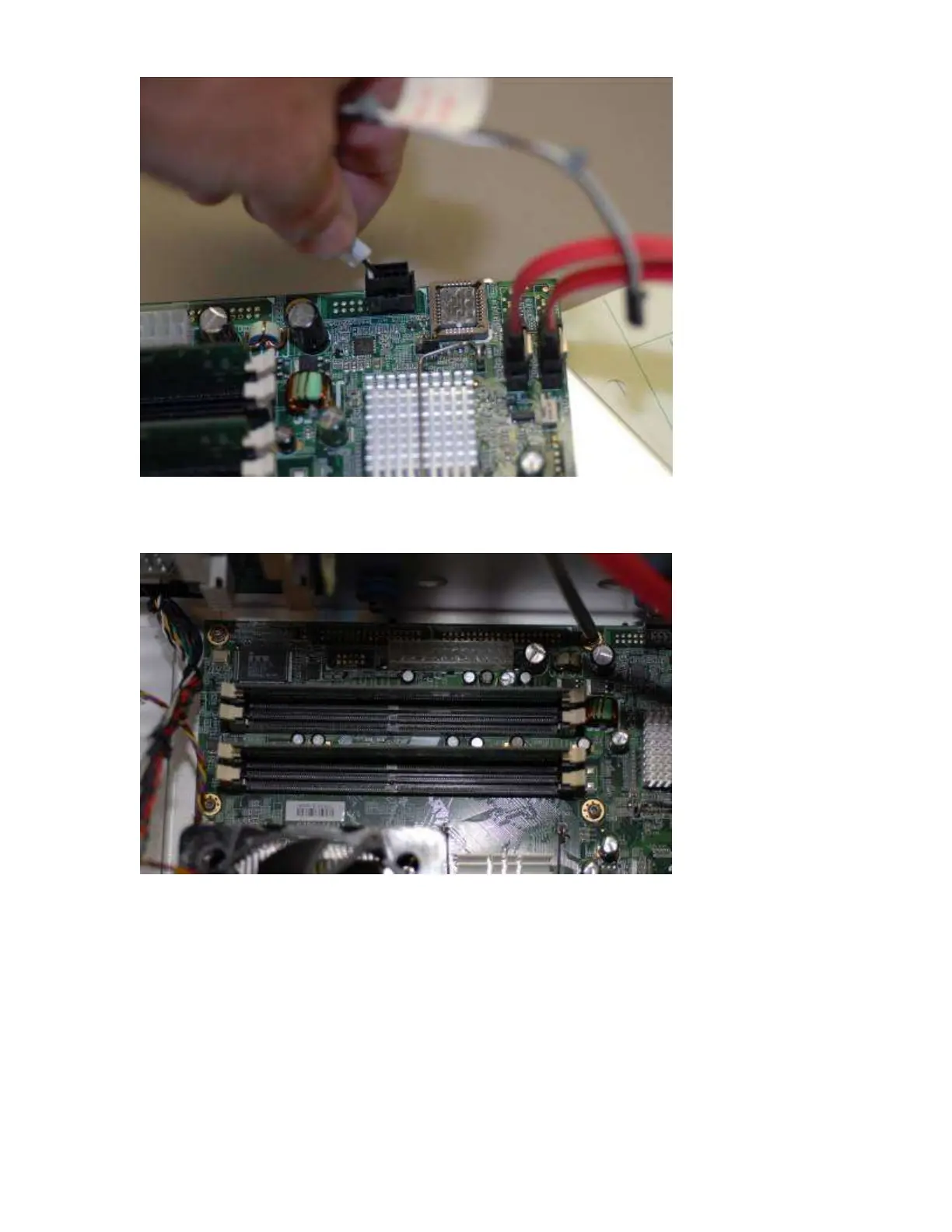

Figure 16
32 Re-install Motherboard Assembly into the frame chassis.
a Install the 3 long Torx T10 screws and two short T10 into the tray holding the
motherboard assembly to the frame chassis. (See Figure 17 and 18)
Figure 17
