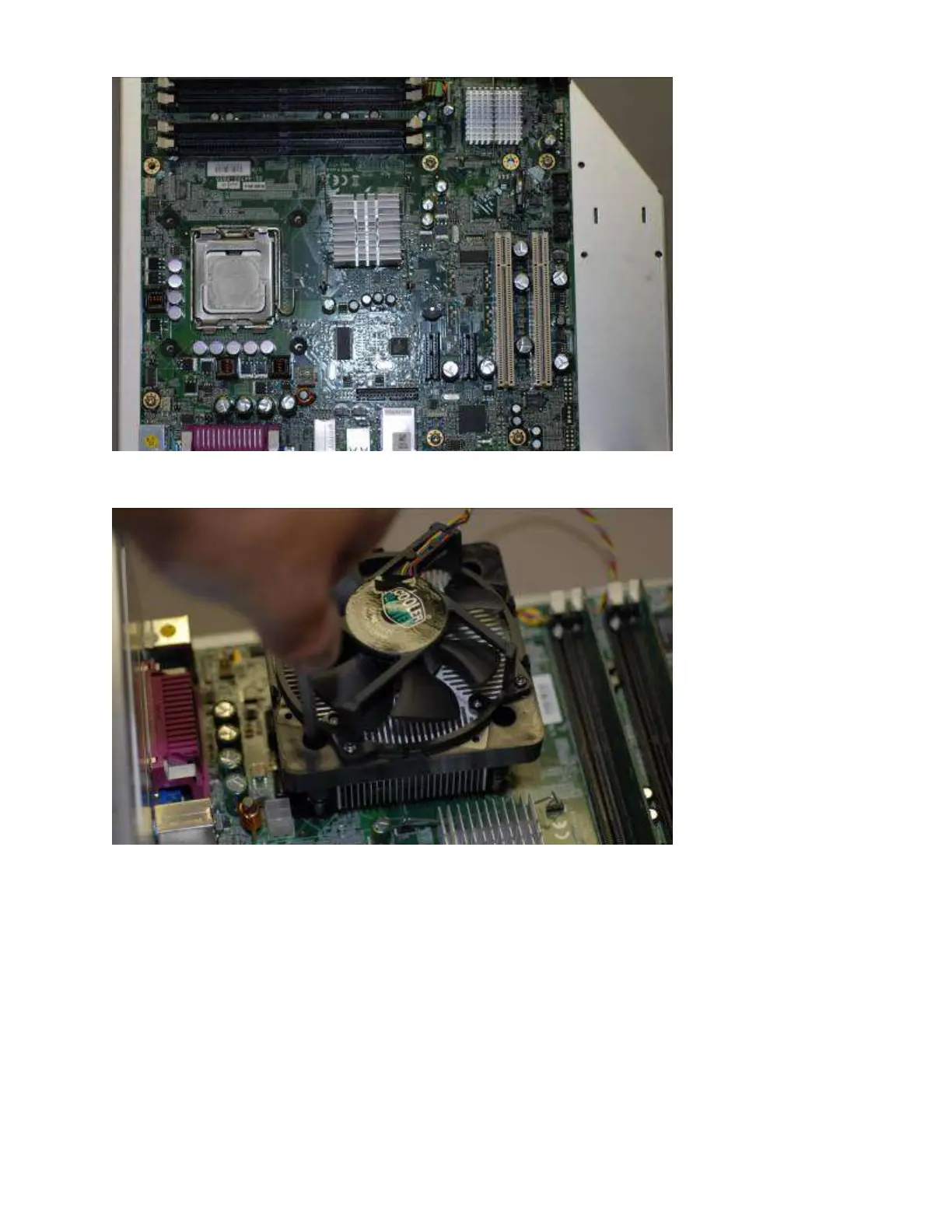

Figure 15
30 Using new Heat Sink and Fan Assembly install fan to Motherboard and Deck. (See Figure
16) Connect fan power cable to fan CPU Fan jack. Torgue fan screws to 5 in-lb.
Figure 15
Note: Do not use thermal grease on Heat Sink/Fan assembly. It comes with its own thermal type material.
31 Using new Motherboard Switch Cable 54855-61628 connect to motherboard assembly. (See
Figure 16)
