30 Agilent N518xA, E8663B, E44x8C, and E82x7D Signal Generators Programming Guide
Using IO Interfaces
Using LAN
Configuring the VXI-11 for LAN (ESG/PSG/E8663B)
Manual Configuration
The Hostname softkey is only available when LAN Config Manual DHCP is set to Manual.
To remotely access the signal generator from a different LAN subnet, you must also enter the subnet
mask and default gateway. See your system administrator for more information.
For more information on the manual configuration, refer to “Manually Configuring the Agilent MXG
LAN” on page 31 or to “Manually Configuring the ESG/PSG/E8663B LAN” on page 31.
NOTE

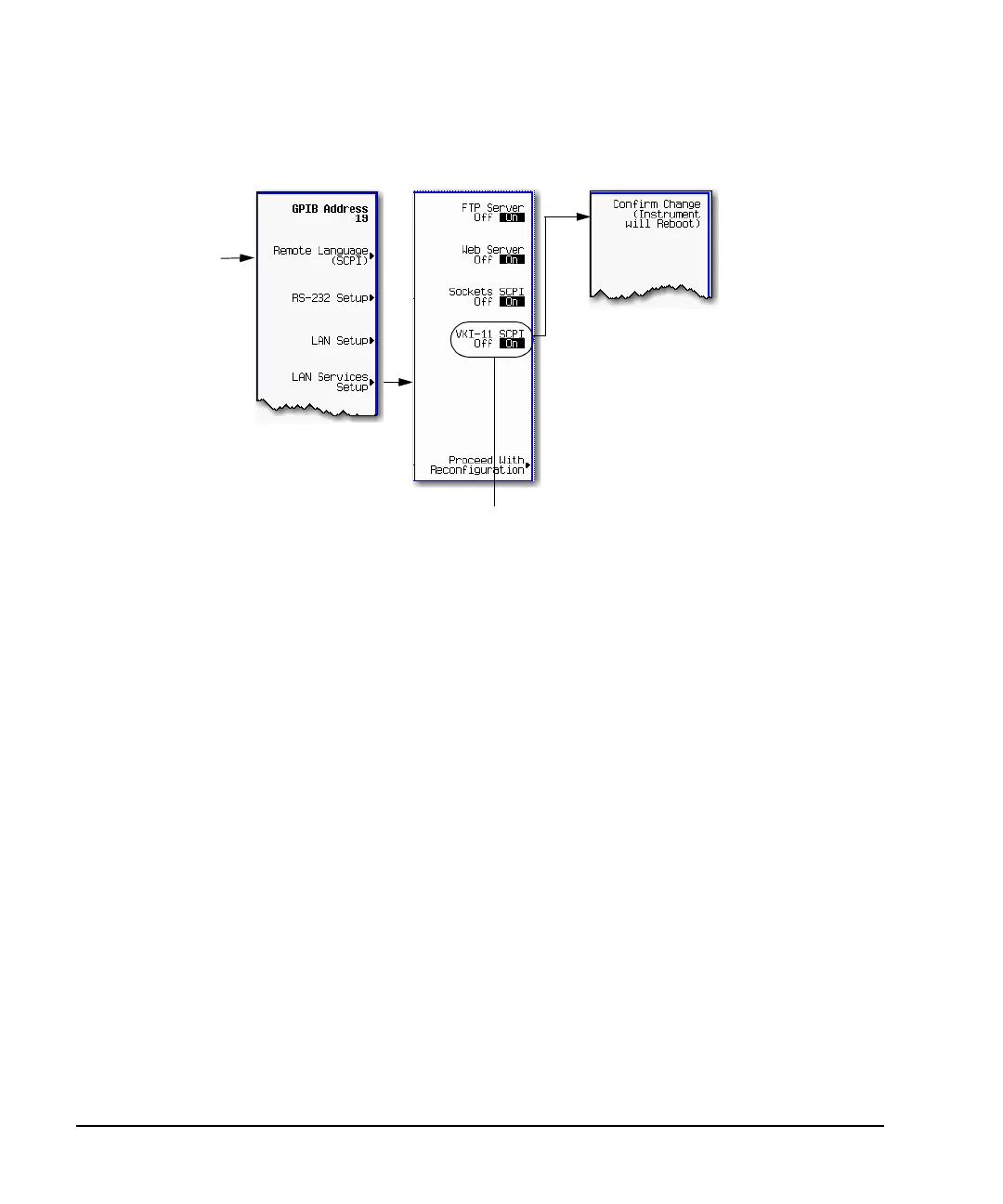

To communicate with the signal generator over the LAN, you must enable the VXI-11 SCPI service. Select VXI-11 until On is highlighted.
(Default condition is On.)
Use a 10Base-T LAN cable to connect the signal generator to the LAN.Where auto-negotiation is present, the ESG, PSG, or E8663B can
connect to 100Base-T LAN, but will communicate at 10Base-T speeds. For more information refer to http://www.ieee.org.
For details on each key, use the Key and Data Field
Reference. For additional SCPI command
information, refer to the SCPI Command Reference.
Utility > GPIB/RS-232
LAN
To Next Page
