Replaceable Parts

Hardware and Other Instrument Parts

3-44

Disassembled A29 20 GHz Coupler/Detector (E8241A and E8251A Models Only)

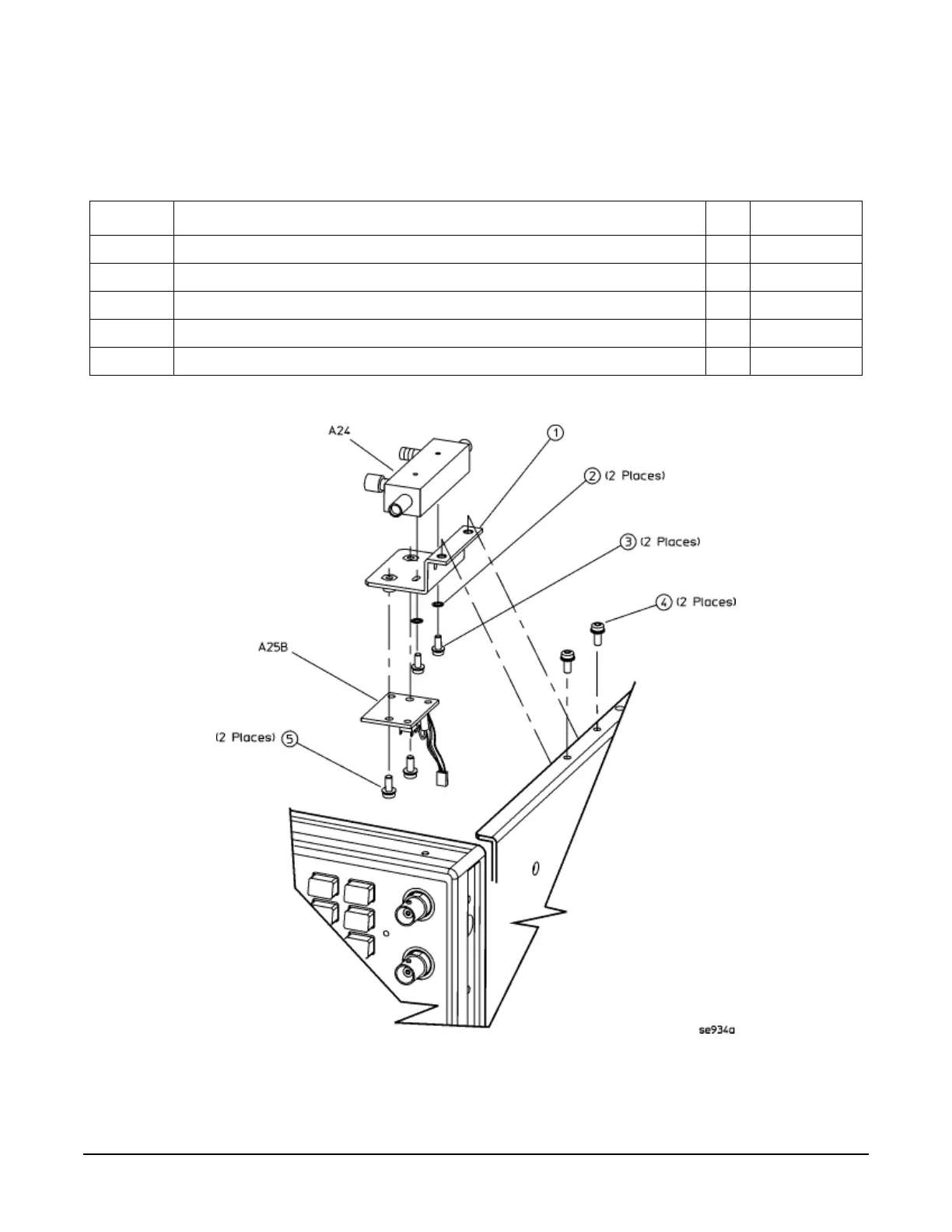

Figure 3-20 Disassembled A29 20 GHz Coupler/Detector (E8241A and E82541 Models Only)

Table 3-20 Disassembled A29 20 GHz Coupler/Detector

(E8241A and E82541 Models Only)

Item No. Description Qty Part Number

1 Coupler Bracket 1 E8251-00039

2 Washer Lock M2.0 2 2190-0654

3 Screw-Machine SM 256 .250 PN-PN 2 0520-0128

4 Screw-Machine M3.0 x 8 FL-TX 2 0510-1035

5 Screw-Machine M3.0 x 8 CW-PN-TX 2 0515-0372
