Agilent Technologies TriScroll 600 Series - Frame and Cowling Securing

TriScroll 600 Dry Scroll Vacuum Pump
TriScroll Reassembly (continued)
17
10

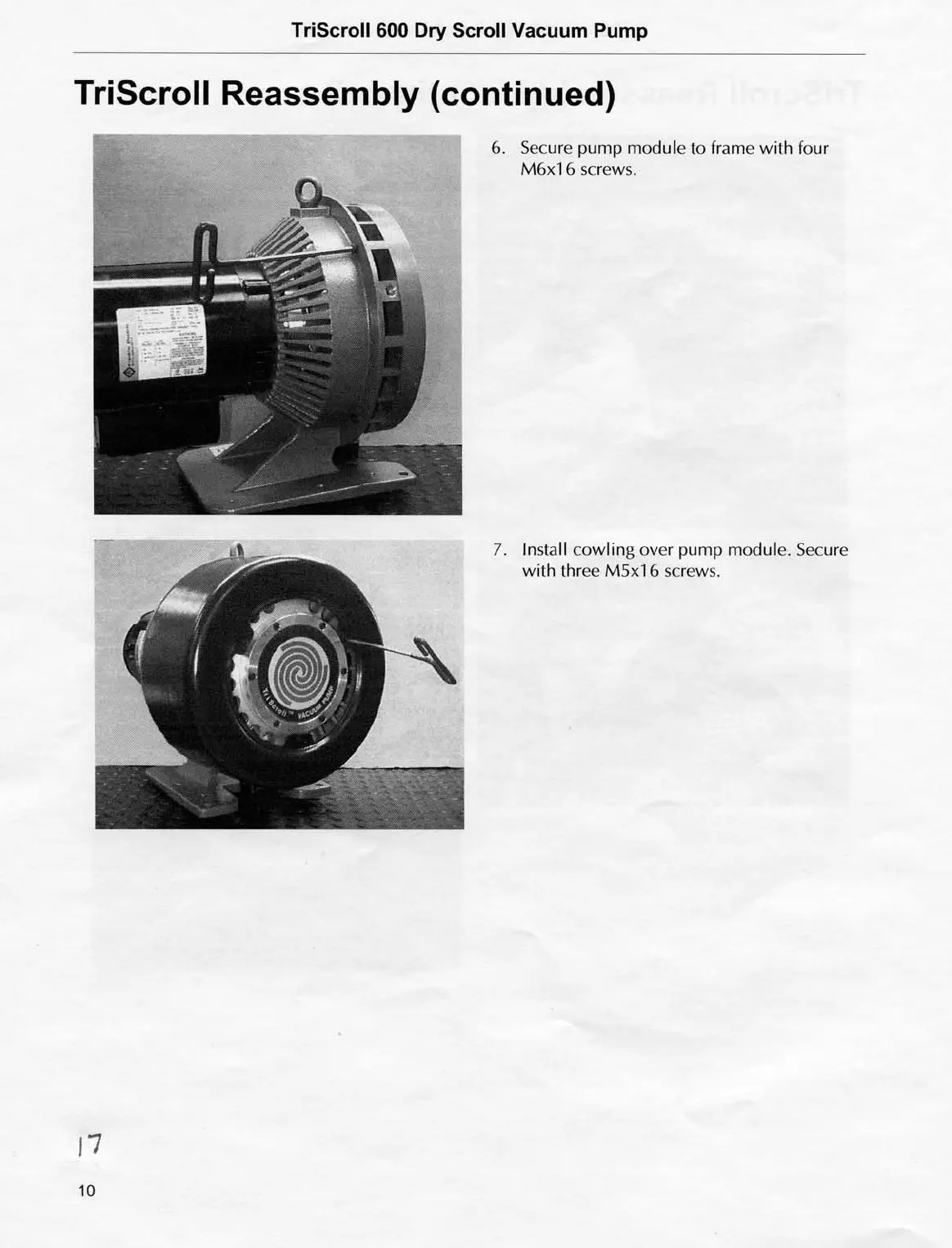

6. Secure pump module to frame with four
M6x16 screws.
7. Install cow ling over pump modul e. Sec ure
with thr ee M5x16 screws.
