Agilent Technologies TriScroll 600 Series - Intake Fitting Reassembly

TriScroll 600 Dry Scroll Vacuum Pump
TriScroll Reassembly (continued)

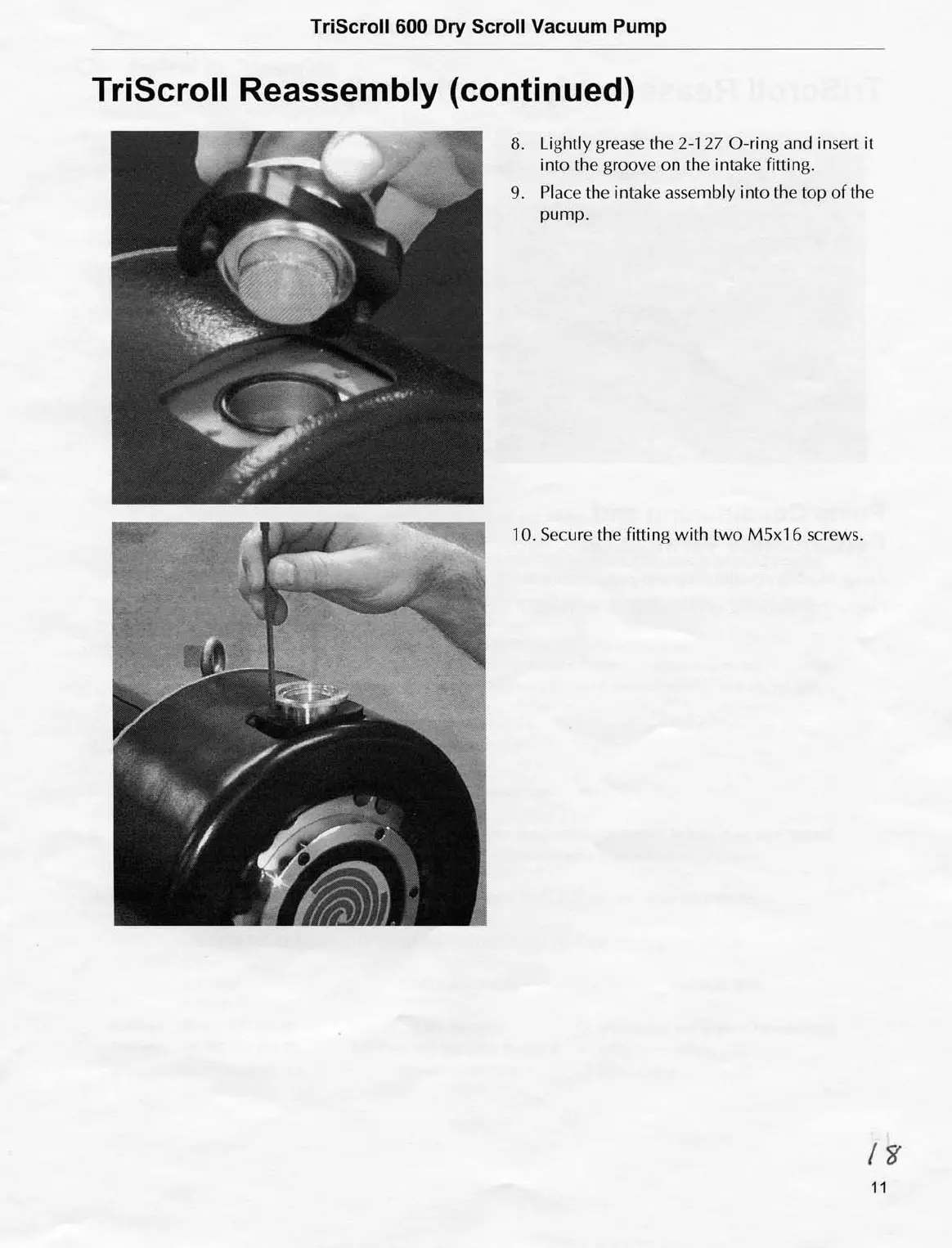

B. li ghtly gr ease the 2-127 O- ring and in se rt it
into the groove on the intake fittin g.
9. Pla ce the intake assembly into the top of the
pump.
10. Sec u re the fitting w ith two M5x 16 sc rews.
Iff
11
