2.2 ASSEMBLY AND PREPARATION FOR USE
2.2.1 UNPACKING
The following steps must be taken prior to each use of the PVS-14.
1. Open the carrying case, remove the PVS-14, and inventory all items.
2. Inspect the monocular for obvious evidence of damage to optical surfaces, body, eyecup, eye
guard, power switch, battery cap, etc. Verify that all optical surfaces are clean and ready for use.
If necessary, clean with dry lens paper (wet or damp lens paper can damage the optics).
2.2.2 BATTERY INSTALLATION
CAUTION:
To protect the image intensifier when the monocular is in standby mode, off, or being operated in
daylight, always keep the objective lens cap securely fitted over the lens.
The PVS-14 operates with one AA battery. The battery is not supplied with the PVS-14 and must
be purchased separately by the user.
At operating temperatures below -20°C (-4°F), AGM does not recommend the use of Alkaline
batteries, as the battery life will be severely reduced. Lithium-iron disulfide L91 1.5V AA batteries
should be used in conditions below -20°C (-4°F).
TABLE 2-2. ESTIMATED BATTERY LIFE
BATTERY TYPE TEMPERATURE
NEGLIGIBLE
IR USAGE
IR USAGE 10%
OF THE TIME
AA Alkaline 21°C (70°F) 60 Hrs 55 Hrs
AA Lithium L91 21°C (70°F) 70 Hrs 65 Hrs
AA Alkaline -20°C (-4°F) 12 Hrs 10 Hrs
AA Lithium L91 -20°C (-4°F) 60 Hrs 55 Hrs
CAUTION:
Before installing a battery, verify that the device is OFF.

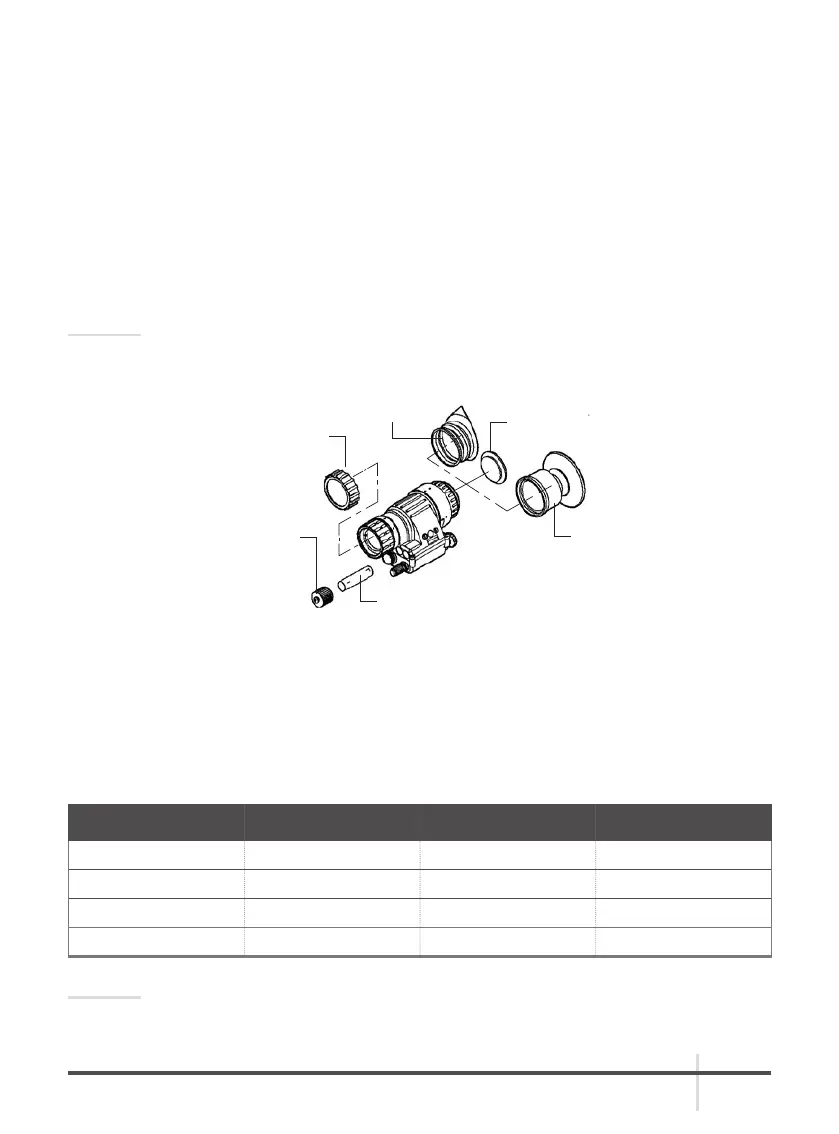

FIGURE 2-2. BATTERY, EYECUP AND EYEGUARD INSTALLATION
DEMIST SHIELD
BATTERY
BATTERY CAP
SACRIFICIAL
WINDOW
EYECUP
EYEGUARD
