extension spacer kit, and place it between your
stand's mounting plate and the motor). Tighten the
four bolts evenly to 12Nm.
To mount to the stand, loosen the cradle lock bolt
and place the mounting spacer squarely in the
cradle. Then tighten the cradle lock bolt firmly to
17Nm.
The drill stand may be anchored to the work piece in one of three ways, with a mechanical anchor, with a
vacuum base, or with a jack screw. (Follow the instructions provided with the drill stand.)
TO INSTALL THE DRILL STAND
1. Measure the distance from the center of
the intended cut to the location of the
mounting slot in the base. Follow the
concrete anchor manufacturer’s instructions
to install. Using an appropriate tool such as a
rotary hammer, drill a correct sized hole to fit
the anchor. Then drive in the anchor to below
flush.
2. Move the base into position and screw in the anchor bolt, washer and nut, leaving it finger tight for the
moment.
3. Using a spirit level, adjust the four leveling bolts to achieve a good level positioning, then fully tighten
the center anchor bolt. The entire stand must be mounted solidly.
WARNING: Never attempt to drill unless the stand is fixed securely beyond any doubt.
5) TURNING THE TOOL ON AND OFF
When the motor is first plugged in, the Information Screen will breifly display “000”, followed by the electronics
board version code. Shortly after, the most recently selected core bit diameter is displayed. The LED Load
Indicator will flash green continuously, showing that the motor is energized and ready to run.
To start the motor, press the ON/OFF button.
To stop the motor, press the ON/OFF button again.
HOLE STARTING FUNCTION
Whenever the motor is first switched on, for the first 4 seconds, it will run at 50% rotation speed. This is to aid in
starting the hole. After 4 seconds, it will increase to 100% of the selected rotation speed.

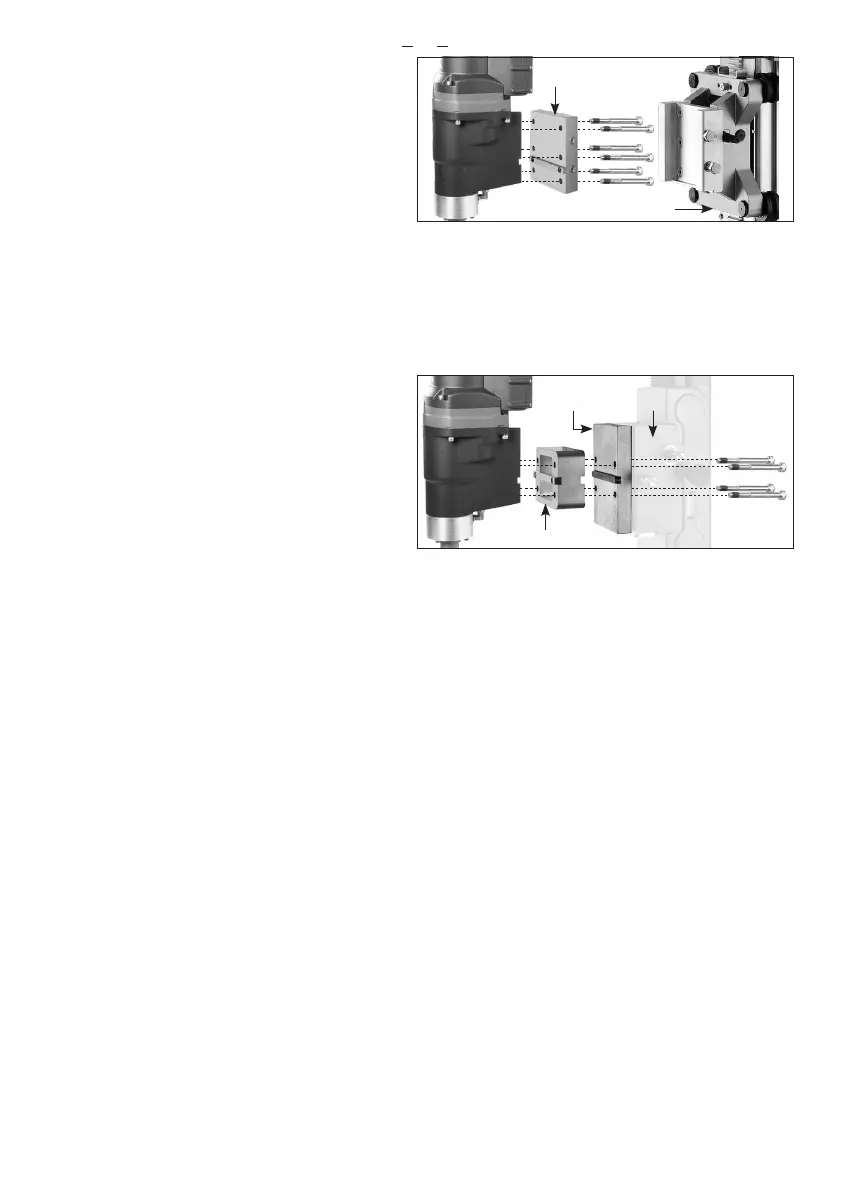

Motor
Mounting plate
AGP Drill Stand
Motor
40mm extension spacer kit
*Outside Sourced
Mounting plate & Drill Stand
