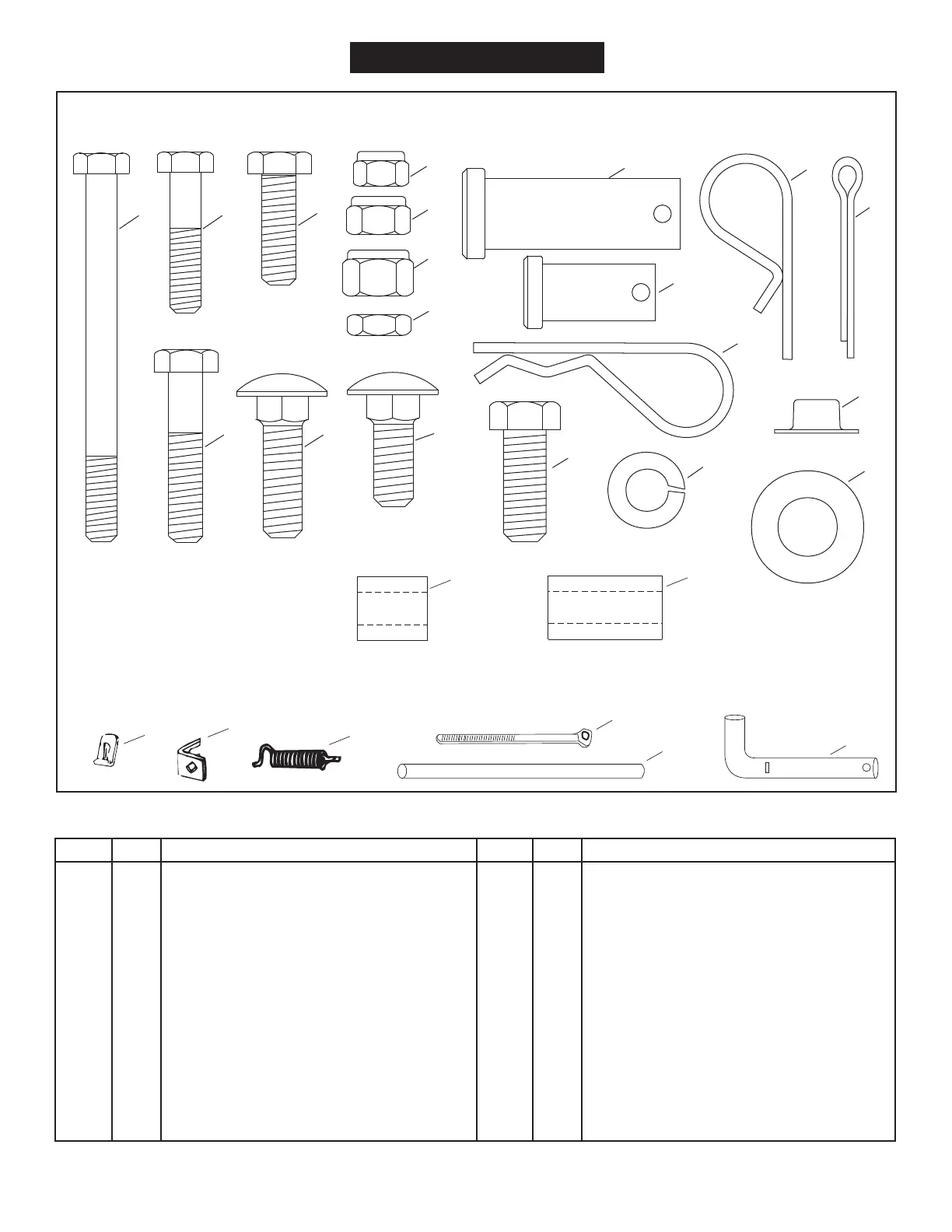

Agri-Fab LBD48D - Full Size Hardware Chart

3
SHOWN FULL SIZE
REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION
A 1 HexBolt,1/4-20x3-1/4"LG.
 B 1 HexBolt1/4-20x1-1/4"
 C 4 HexBolt,5/16-18x1"
 D 1 HexBolt,5/16-18x1-1/2"
 E 4 CarriageBolt3/8-16x1-1/4"
 F 18 CarriageBolt,3/8-16x1"
 G 3 NylonLockNut,1/4-20Thread
 H 5 NylonLockNut,5/16-18Thread
 I 22 NylonLockNut,3/8-16Thread
 J 2 HexJamNut,5/16-24Thread
 K 1 ClevisPin,5/8"x1-3/4"
 L 2 ClevisPin,1/2"x1"
 M 3 HairpinCotter,Large
 N 4 HairpinCotter,Small
O 2 CotterPin1/8"x1-1/4"
 P 2 Palnut,3/8"
 Q 2 HexBolt,3/8-16x1"
 R 2 Lockwasher,3/8"
 S 3 Washer1/2"
 T 1 Spacer,9/16"ODx5/8"LG.
 U 2 Spacer,9/16"ODx1"LG.
 V 2 CableEndFitting
 W 1 CableMountBracket
 X 1 AngleLockSpring
 Y 2 NylonTie
 Z 1 SpringMountRod
 AA 1 ChannelPivotPin
HARDWARE PACKAGE
I
J
H
G
A B
R
S
K
ED
Q
M
N
O
P
C
F
L
T
U
V
W
X
AA
Z
Y
NOT SHOWN FULL SIZE
ENGLISH
