Aidcall Touchsafe Pro Maxpage - Installation

DocNo.FM5611issueCPage6

6. INSTALLATION


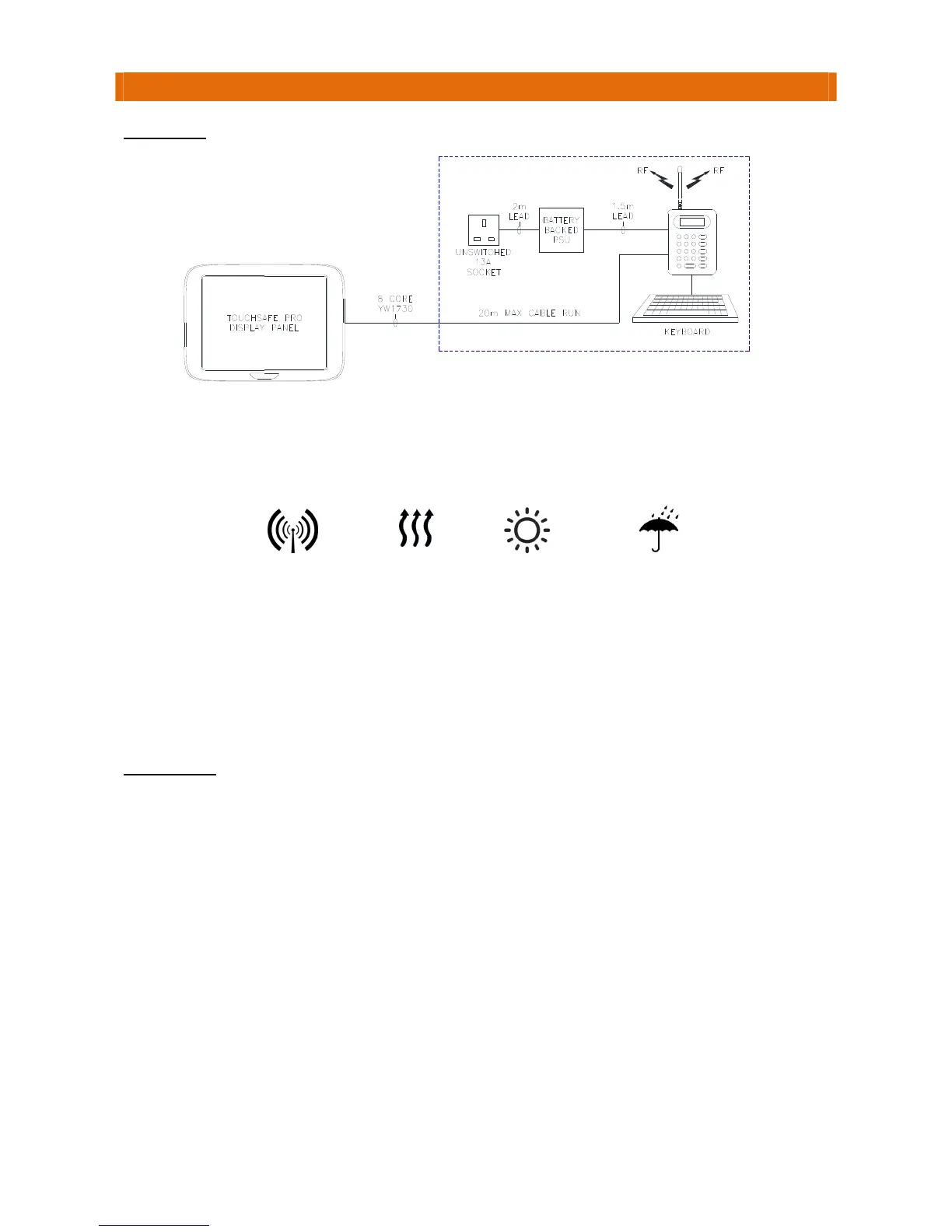

SITEWIRING















TheMaxpageTerminalandminikeyboardshouldbeplacedonaworkstationinasecureareaandatleast
2metresawayfromanyotherelectronicequipmenttoavoidinterference.

IMPORTANT:AVOIDLOCATINGTHEMAXPAGETERMINAL…




WITHIN2METRESOF
OTHERELECTRONIC
EQUIPMENT
DIRECTLYABOVEA
HEATER
INDIRECTSUNLIGHT NEARTOSPLASHING
WATER

TheMaxpageTerminalmustbewithin20metrescablerunofaTouchsafeProDisplayPanel.
Note:Iftherearemultiplepanelsconnecttotheonewhichismostcentrallylocatedonthesite.

Thebattery‐backedpowersupplyunitshouldbewallmountedwithin1.5metre softheMaxpageTerminal
andwithin2metresofanun‐switchedmainssupply.

TheminikeyboardsimplyplugsintothePS2KeyboardsocketontherearoftheMaxpageTerminal.

RADIORANGE


Constructionmaterialssuchasfoilbackedplasterboard,reinforcedconcreteorstonewallswillreduce
range.Environmentalconditionssuchashighlevelsoftransmissionatnearbyfrequenciesoremissions
fromotherelectricalequipmentmayfurtherreducerange.Clearline‐of‐sightwillgiveamaximumradio
rangeof1mileradiusfrom
thetransmitter.














E40119
MaxpageTerminalKit
