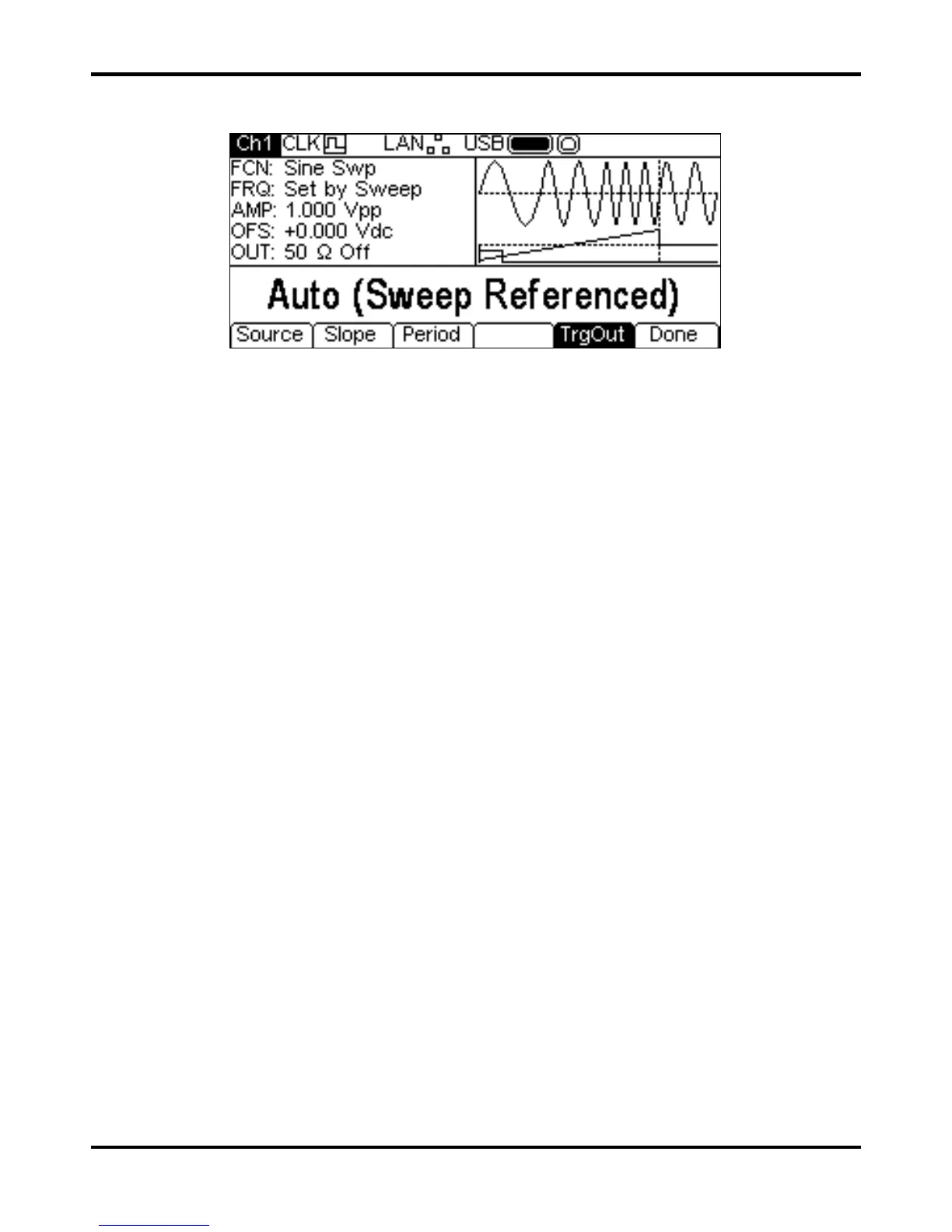

Pressing the TrgOut soft-key allows the source ot the current channel trigger output to be set.
The Edit Box shows the current setting.
There are seven options:
Auto. The generator chooses the default for the current waveform type and modulation.
Carrier Referenced. The carrier sync signal.
Modulation Referenced. The modulating waveform sync signal.
Sweep Referenced. The sweep sync signal (also containing the marker information).
Burst Referenced. The burst sync which is high during a burst.
Current Trigger. The trigger input signal to the channel.
Off. No signal is generated.
Press The
Done soft-key to exit the Trigger Menu.
